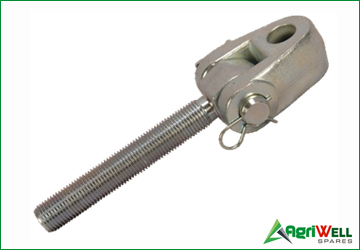

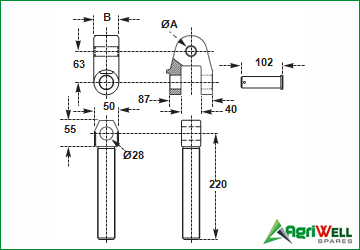

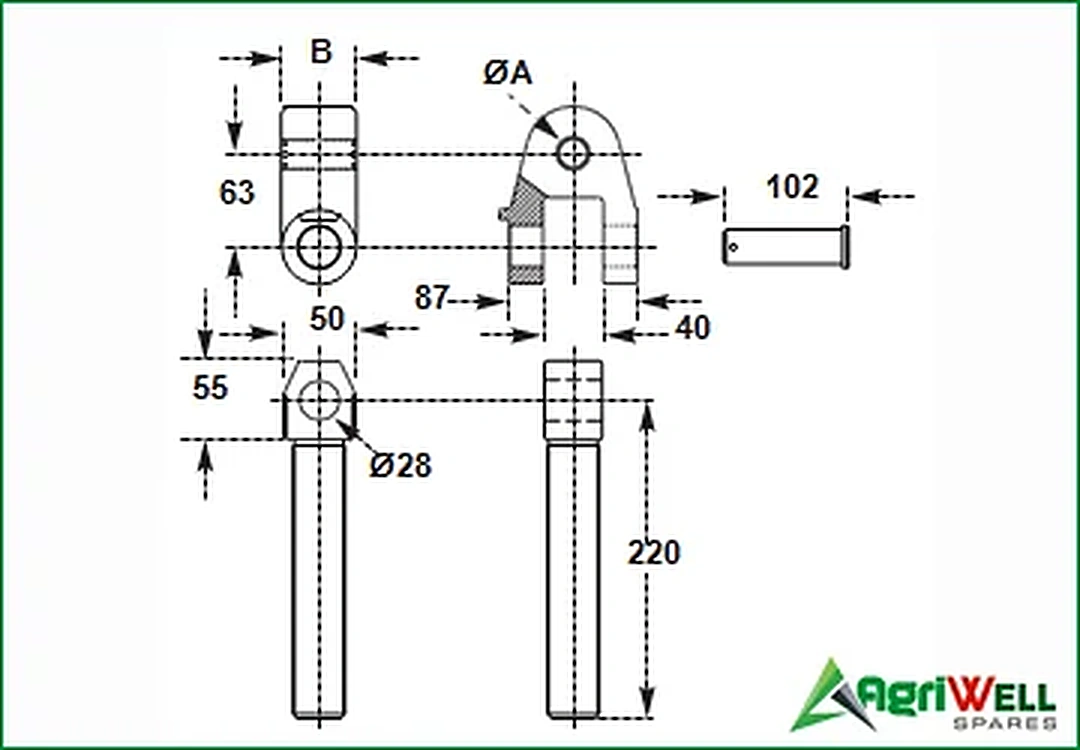

ARTICULATED YOKE ASSEMBLY
Part Number |
Cat. |
Dia. ØA (mm) |
Dim. B (mm) |
Thread (mm) |
Spare Part1 |
Spare Part 2 |
Ref. Number |
AYE-R303025 |
2 |
25.4 |
51 |
M 30X3 R |
AYE-R3030 |
AY-2551 |
0ATF002 |
AYE-L303025 |
2 |
25.4 |
51 |
M 30X3 L |
AYE-L3030 |
AY-2551 |
0ATF006 |
AYE-R303028 |
- |
28.2 |
51 |
M 30X3 R |
AYE-R3030 |
AY-2851 |
0ATF020 |
AYE-L303028 |
- |
28.2 |
51 |
M 30X3 L |
AYE-L3030 |
AY-2851 |
0ATF032 |
AYE-R303030 |
- |
30.2 |
51 |
M 30X3 R |
AYE-R3030 |
AY-3051 |
0ATF022 |
AYE-L303030 |
- |
30.2 |
51 |
M 30X3 L |
AYE-L3030 |
AY-3051 |
0ATF033 |
AYE-R303032 |
3 |
32 |
51 |
M 30X3 R |
AYE-R3030 |
AY-3251 |
0ATF024 |
AYE-L303032 |
3 |
32 |
51 |
M 30X3 L |
AYE-L3030 |
AY-3251 |
0ATF034 |
AYE-R303519 |
1 |
19.2 |
51 |
M 30X3.5 R |
AYE-R3035 |
AY-1951 |
0ATF010 |
AYE-L303519 |
1 |
19.2 |
51 |
M 30X3.5 L |
AYE-L3035 |
AY-1951 |
0ATF011 |
AYE-R303520 |
- |
20.2 |
51 |
M 30X3.5 R |
AYE-R3035 |
AY-2051 |
0ATF012 |
AYE-L303520 |
- |
20.2 |
51 |
M 30X3.5 L |
AYE-L3035 |
AY-2051 |
0ATF013 |
AYE-R303522 |
- |
22.1 |
51 |
M 30X3.5 R |
AYE-R3035 |
AY-2251 |
0ATF014 |
AYE-L303522 |
- |
22.1 |
51 |
M 30X3.5 L |
AYE-L3035 |
AY-2251 |
0ATF015 |
AYE-R303525 |
2 |
25.4 |
51 |
M 30X3.5 R |
AYE-R3035 |
AY-2551 |
0ATF005 |
AYE-L303525 |
2 |
25.4 |
51 |
M 30X3.5 L |
AYE-L3035 |
AY-2551 |
0ATF004 |
AYE-R363020 |
- |
20.2 |
51 |
M 36X3 R |
AYE-R3630 |
AY-2051 |
0ATF029 |
AYE-L363020 |
- |
20.2 |
51 |
M 36X3 L |
AYE-L3630 |
AY-2051 |
0ATF028 |
AYE-R363022 |
- |
22.1 |
51 |
M 36X3 R |
AYE-R3630 |
AY-2251 |
0ATF030 |
AYE-L363022 |
- |
22.1 |
51 |
M 36X3 L |
AYE-L3630 |
AY-2251 |
0ATF031 |
AYE-R363025 |
2 |
25.4 |
51 |
M 36X3 R |
AYE-R3630 |
AY-2551 |
0ATF001 |
AYE-L363025 |
2 |
25.4 |
51 |
M 36X3 L |
AYE-L3630 |
AY-2551 |
0ATF009 |
AYE-R363030 |
- |
30.2 |
51 |
M 36X3 R |
AYE-R3630 |
AY-3051 |
0ATF027 |
AYE-L363030 |
- |
30.2 |
51 |
M 36X3 L |
AYE-L3630 |
AY-3051 |
0ATF026 |
AYE-R363032 |
3 |
32 |
51 |
M 36X3 R |
AYE-R3630 |
AY-3251 |
0ATF003 |
AYE-L363032 |
3 |
32 |
51 |
M 36X3 L |
AYE-L3630 |
AY-3251 |
0ATF007 |
AYE-R403025 |
2 |
25.4 |
51 |
M 40X3 R |
AYE-R4030 |
AY-2551 |
0ATF035 |
AYE-L403025 |
2 |
25.4 |
51 |
M 40X3 L |
AYE-L4030 |
AY-2551 |
0ATF036 |
AYE-R403032 |
3 |
32 |
51 |
M 40X3 R |
AYE-R4030 |
AY-3251 |
0ATF037 |
AYE-L403032 |
3 |
32 |
51 |
M 40X3 L |
AYE-L4030 |
AY-3251 |
0ATF038 |

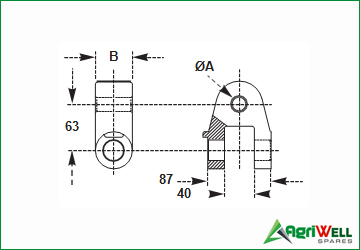

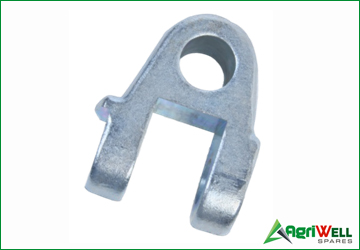

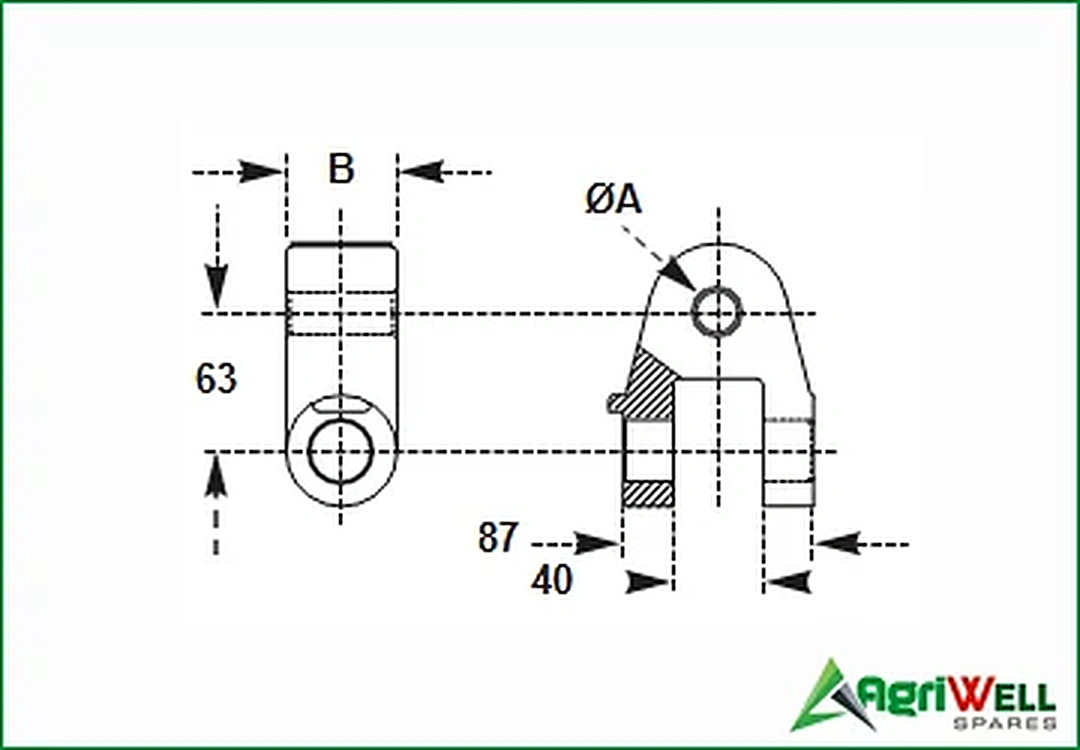

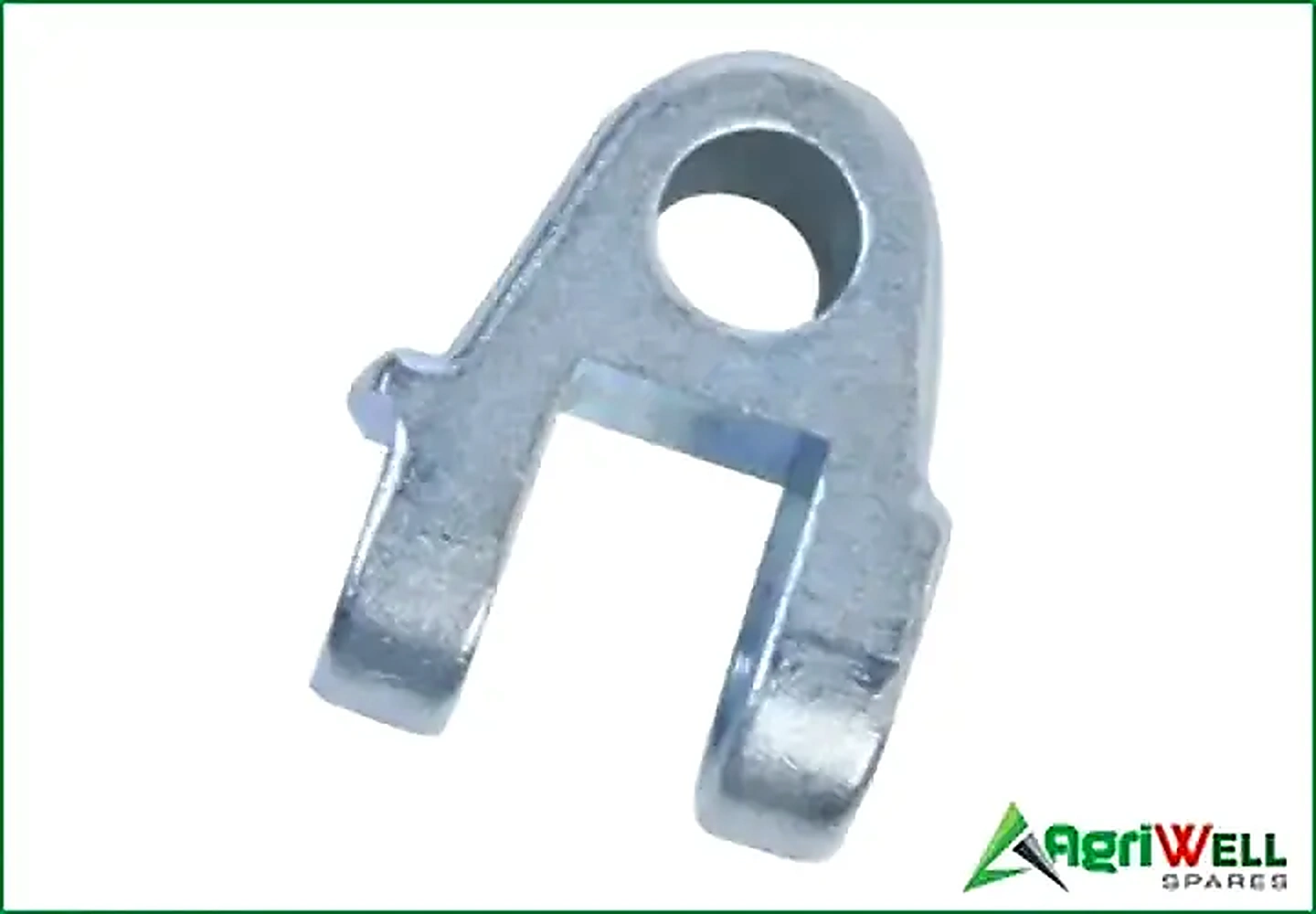

END FOR ARTICULATED YOKE
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
AY-1951 |
19.2 |
51 |
AY-2051 |
20.2 |
51 |
AY-2251 |
22.1 |
51 |
AY-2551 |
25.4 |
51 |
AY-2851 |
28.2 |
51 |
AY-3051 |
30.2 |
51 |
AY-3251 |
32 |
51 |

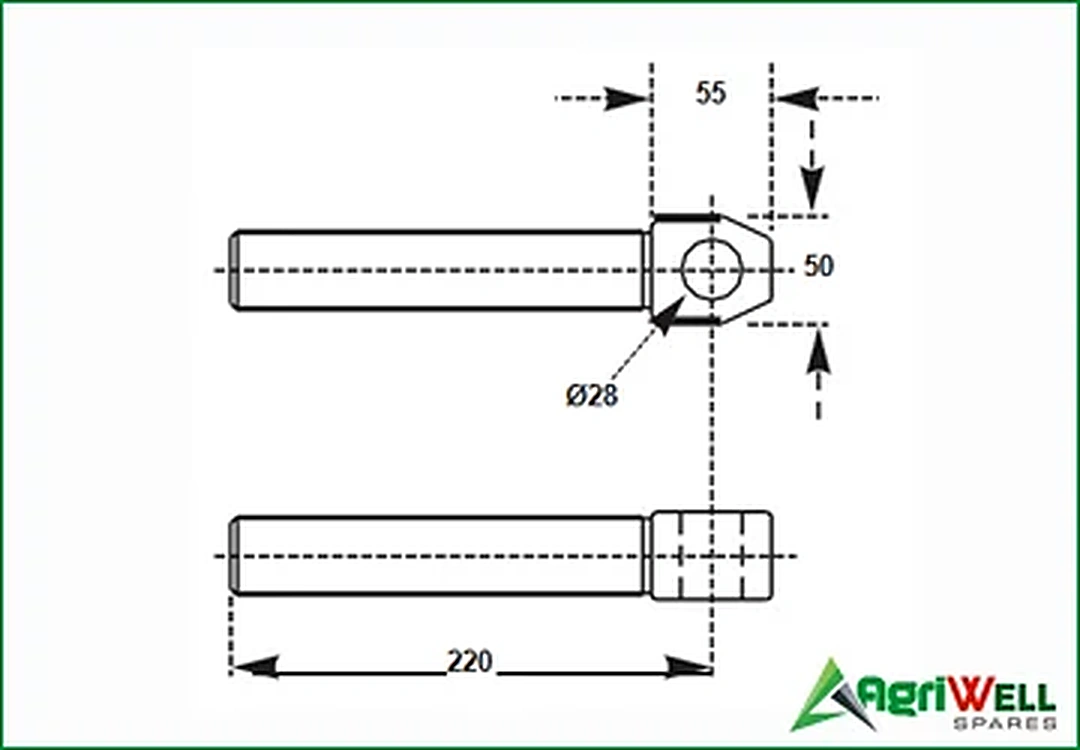

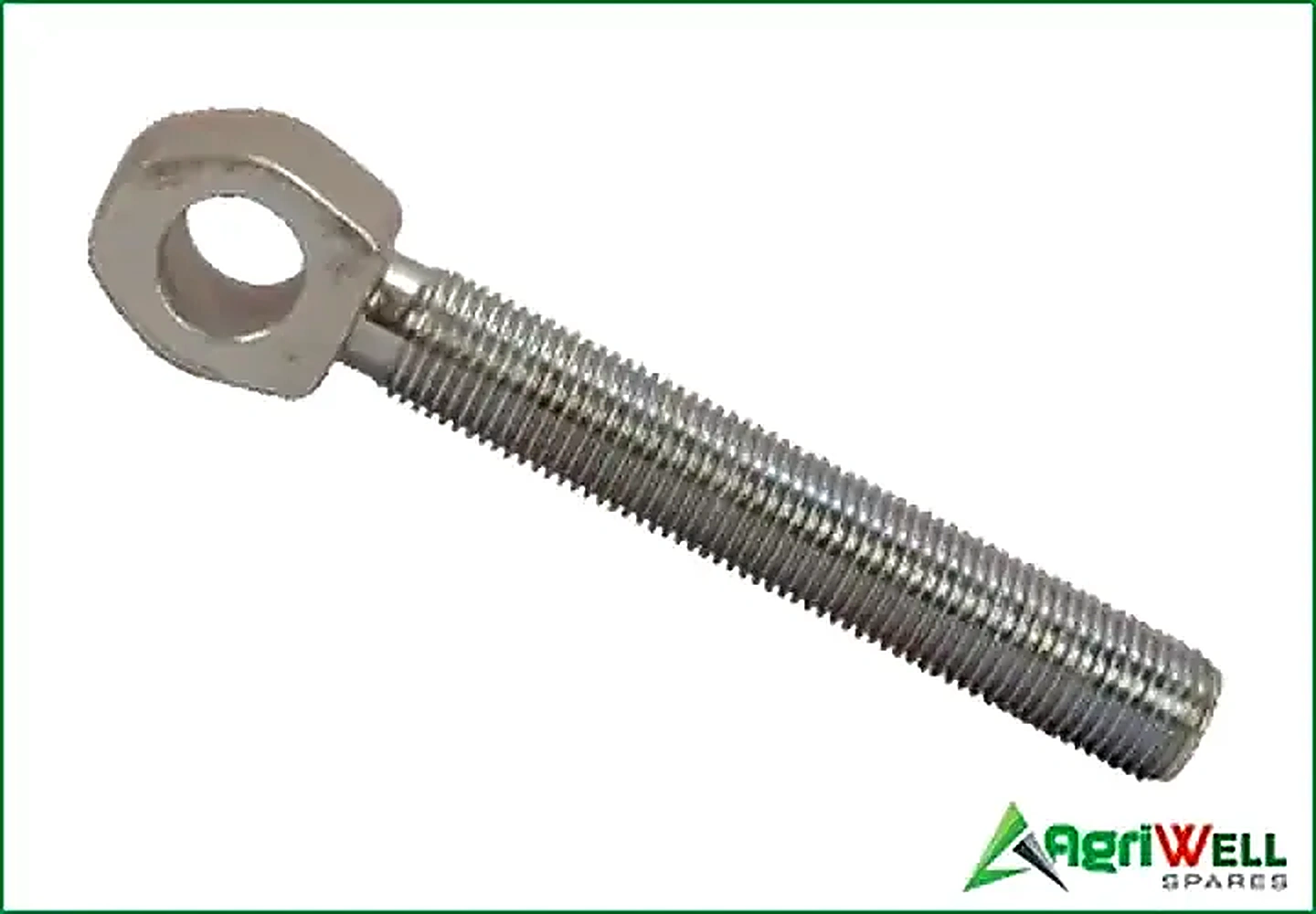

TIE ROD FOR ARTICULATED YOKE
Part Number |
Thread (mm) |
AYR-R3030 |
M 30X3 R |
AYR-L3030 |
M 30X3 L |
AYE-R3035 |
M 30X3.5 R |
AYE-L3035 |
M 30X3.5 L |
AYE-R3630 |
M 36X3 R |
AYE-L3630 |
M 36X3 L |
AYE-R4030 |
M 40X3 R |
AYE-L4030 |
M 40X3 L |

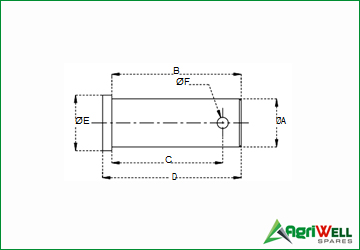

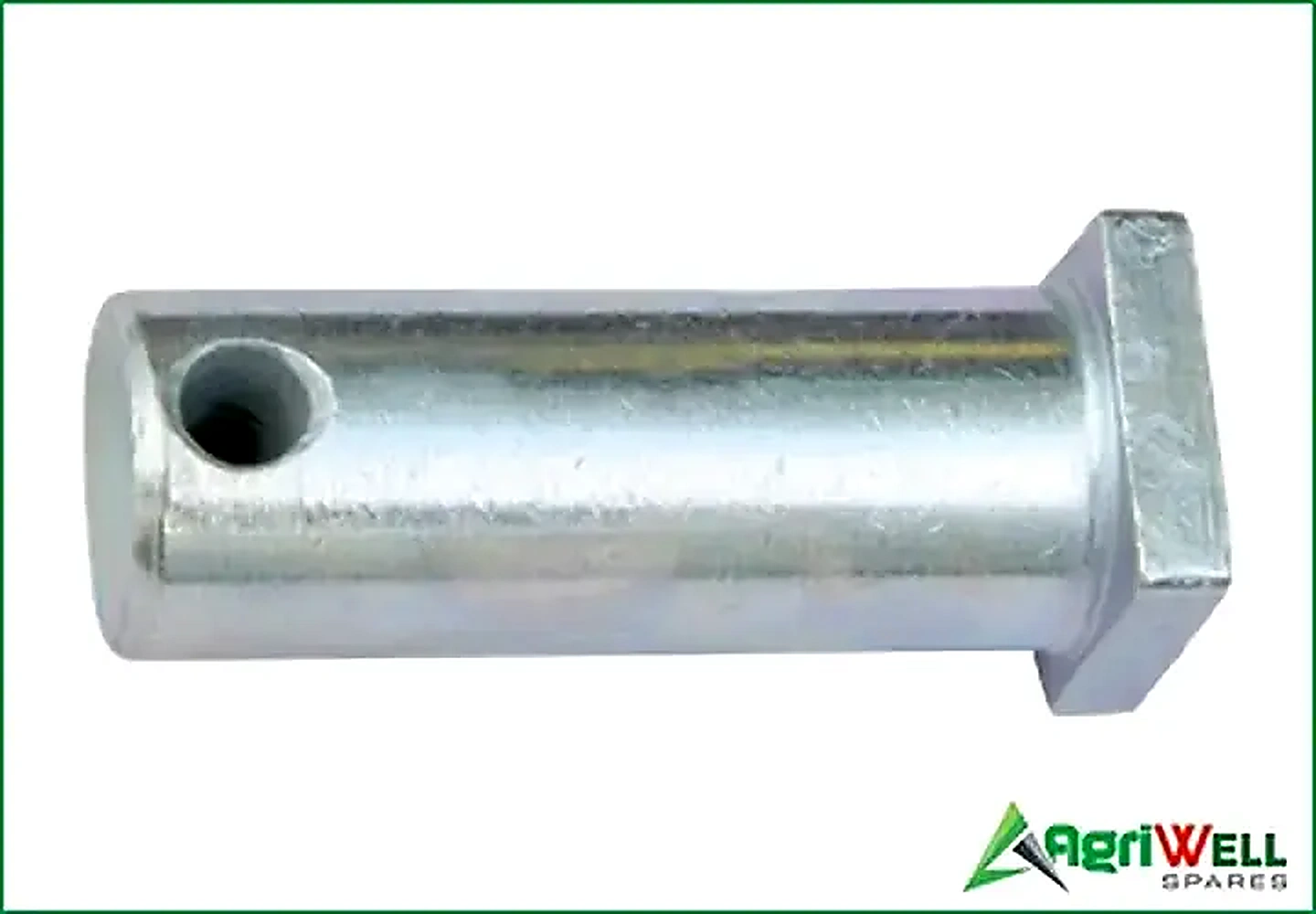

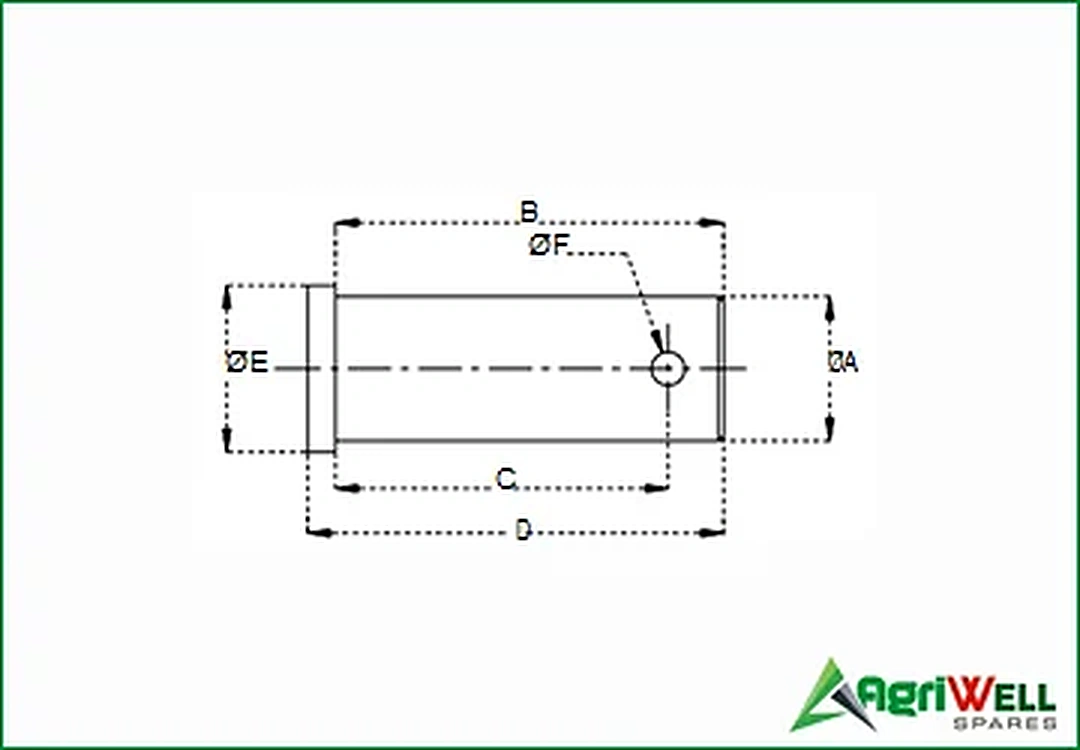

SQUARE HEAD PIN
Part Number
|
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dia. ØE (mm) |
Dia. ØF (mm) |
Ref. Number |
SHP-185420 |
18 |
60 |
54 |
65 |
20 |
6 |
04116 |
SHP-185420 |
18 |
60 |
54 |
65 |
20 |
6 |
04116 |
SHP-265230 |
26 |
60 |
52 |
65 |
30 |
6 |
04117 |
SHP-266030 |
26 |
70 |
60 |
75 |
30 |
6 |
04118 |
SHP-268630 |
26 |
95 |
86 |
100 |
30 |
6 |
19723 |
