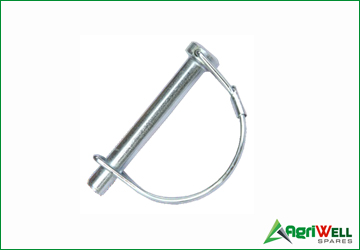

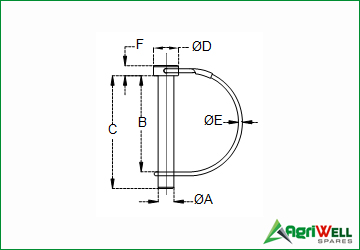

PTO PINS-ROUND
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Dia. ØE (mm) |
Dim. F (mm) |
Ref. Number |
PTOPR-650 |
6 |
50 |
60 |
12 |
2.5 |
6 |
|
PTOPR-657 |
6 |
57 |
67 |
12 |
2.5 |
6 |
|
PTOPR-745 |
7 |
45 |
50 |
16 |
2.5 |
6 |
09354 |
PTOPR-838 |
8 |
38 |
45 |
14 |
2.5 |
7 |
02913 |
PTOPR-860 |
8 |
60 |
73 |
15 |
2.5 |
7 |
01369 |
PTOPR-9557 |
9.5 |
57 |
67 |
16 |
2.5 |
10 |
|
PTOPR-1038 |
10 |
38 |
45 |
15 |
2.5 |
7 |
02914 |
PTOPR-1060 |
10 |
60 |
70 |
19 |
2.5 |
10 |
01370 |
PTOPR-1145 |
11 |
45 |
55 |
19 |
2.5 |
10 |
|
PTOPR-1189 |
11 |
89 |
99 |
19 |
2.5 |
10 |
|
PTOPR-1267 |
12 |
67 |
75 |
20 |
2.5 |
10 |
|
PTOPR-1270 |
12 |
70 |
90 |
18 |
2.5 |
7 |
|

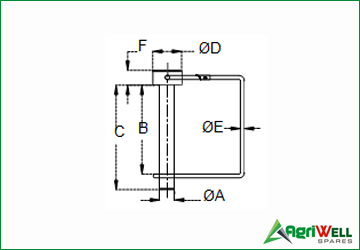

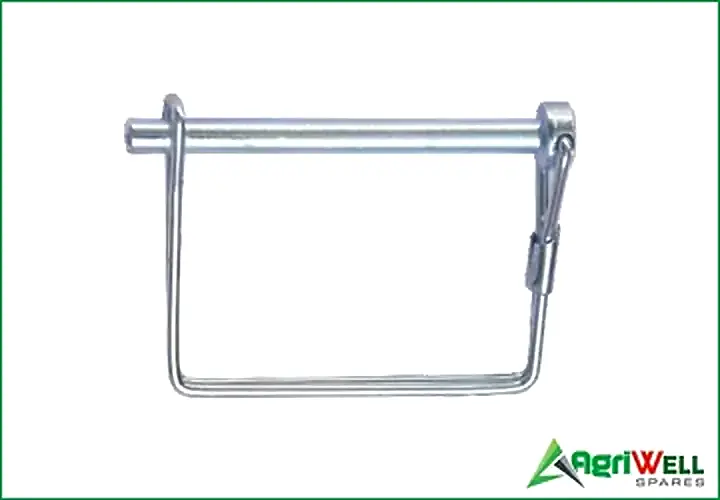

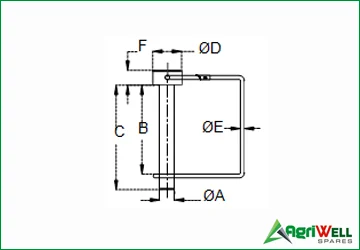

PTO PINS-SQUARE
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Ref. Number |
SP-360 |
3 |
60 |
35 |
20 |
00122 |
SP-4100 |
4 |
100 |
55 |
33 |
00107 |
SP-590 |
5 |
90 |
42 |
31 |
00108 |
SP-6100 |
6 |
100 |
50 |
30 |
00109 |

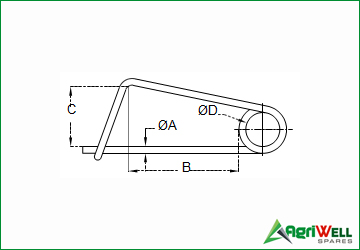

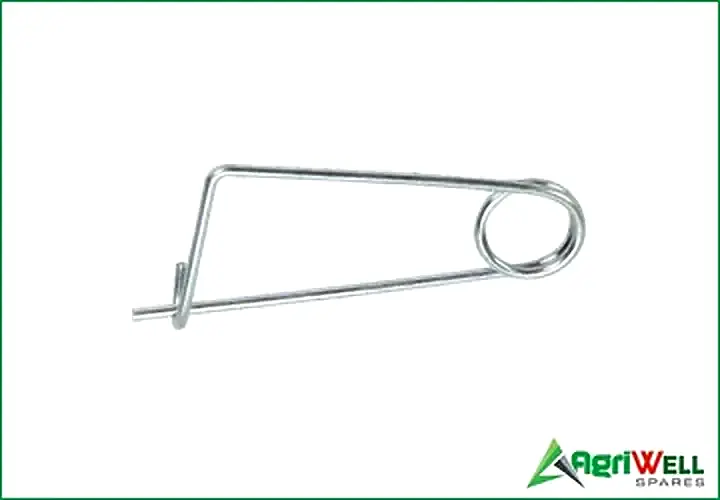

SAFETY PINS
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Ref. Number |
SP-360 |
3 |
60 |
35 |
20 |
00122 |
SP-4100 |
4 |
100 |
55 |
33 |
00107 |
SP-590 |
5 |
90 |
42 |
31 |
00108 |
SP-6100 |
6 |
100 |
50 |
30 |
00109 |
