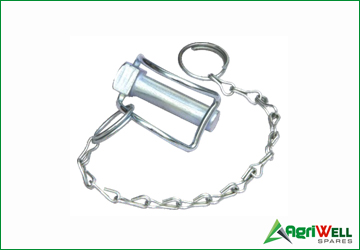

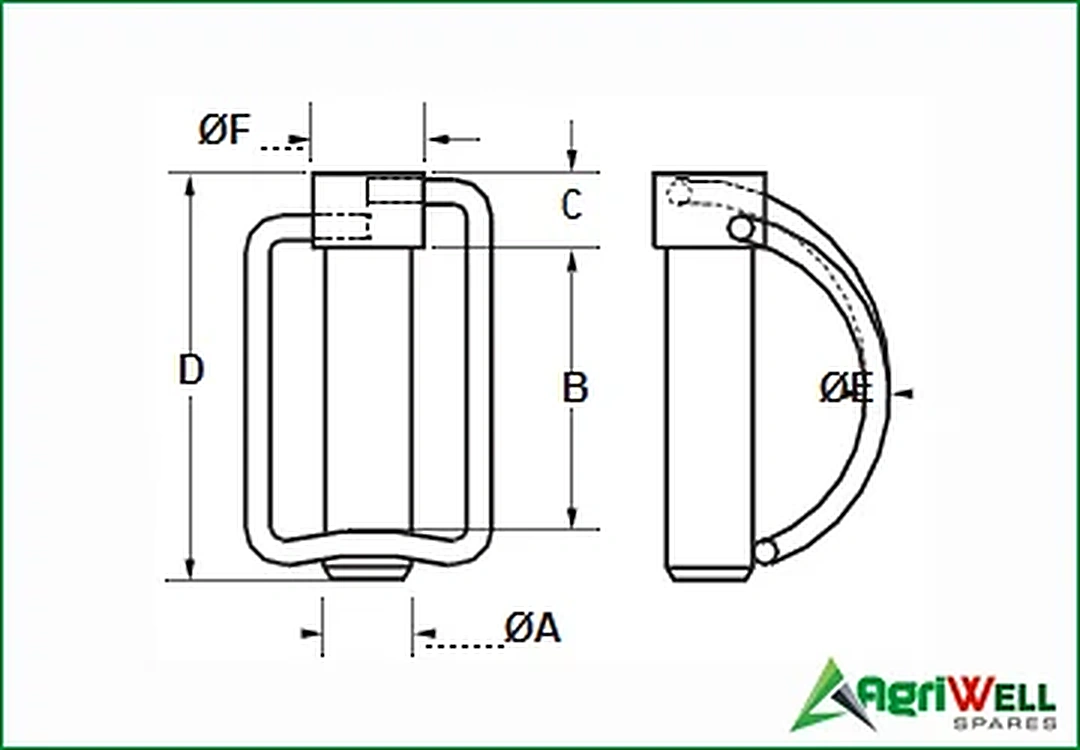

LINCH PINS (SQUARE)-WITH CHAIN
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dia. ØE (mm) |
Dim. F (mm) |
Ref. Number |
LPSC-1447 |
14 |
47 |
12 |
67 |
4 |
18 |
00247 |
LPSC-1657 |
16 |
57 |
13 |
70 |
4 |
20 |
00248 |
LPSC-1960 |
19 |
60 |
15 |
90 |
5 |
25 |
00463 |

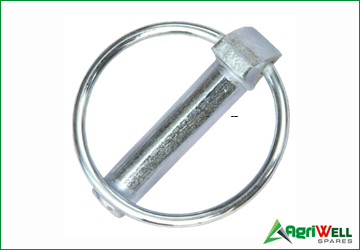

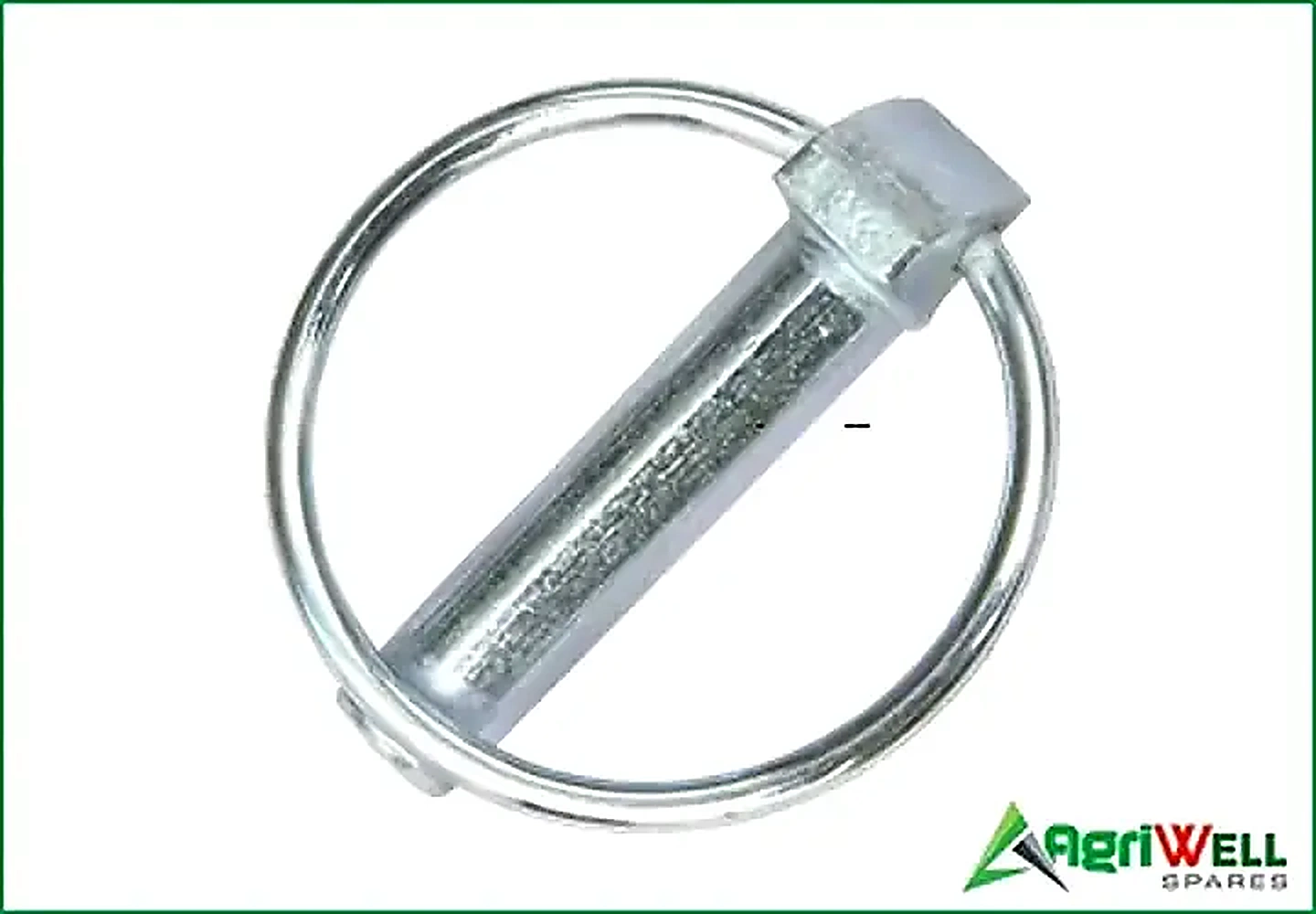

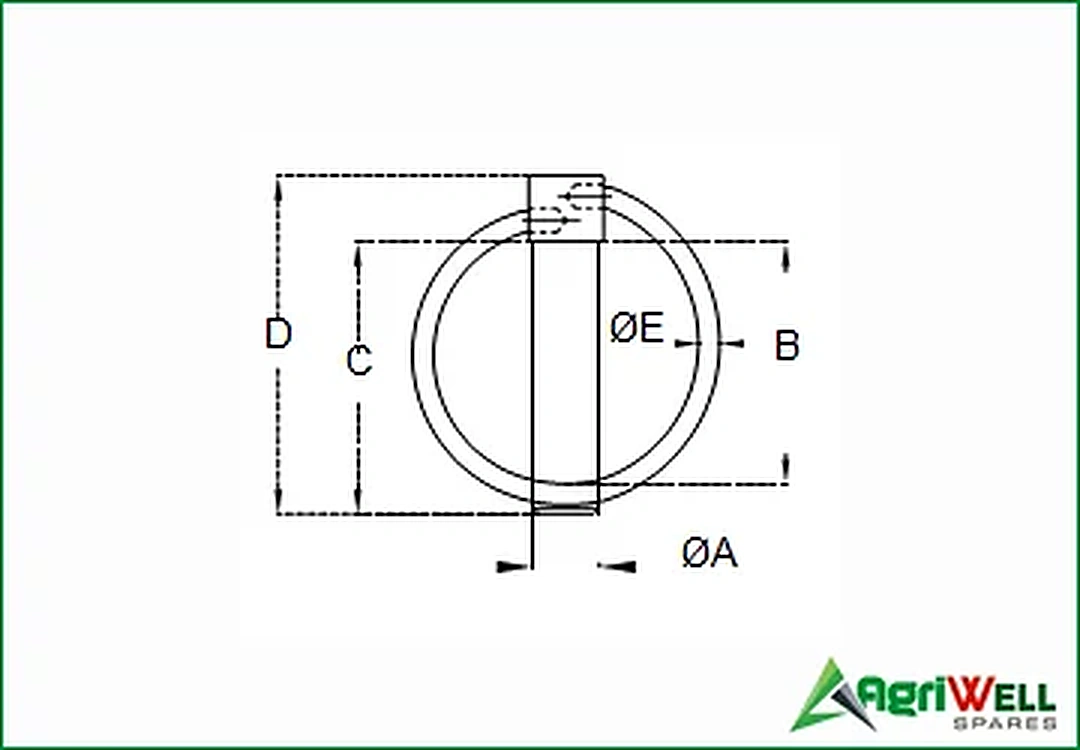

LINCH PINS
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dia. ØE (mm) |
Ref. Number |
LP-4529 |
4.5 |
29 |
35 |
45 |
2.5 |
10524 |
LP-4533 |
4.5 |
33 |
42 |
51 |
3 |
|
LP-47628 |
4.76 |
28.6 |
35 |
44 |
3 |
|
LP-535 |
5 |
35 |
40 |
48 |
2.5 |
10518 |
LP-633 |
6 |
33 |
40 |
49 |
3.3 |
|
LP-636 |
6 |
36.5 |
45 |
55 |
3 |
10519 |
LP-63536 |
6.35 |
36.5 |
45 |
54 |
3.2 |
|
LP-736 |
7 |
36.5 |
45 |
55 |
3.3 |
|
LP-833 |
8 |
33 |
40 |
49 |
3.3 |
|
LP-836 |
8 |
36.5 |
45 |
54 |
3 |
10520 |
LP-839 |
8 |
39 |
60 |
69 |
3.6 |
|
LP-860 |
8 |
60 |
70 |
80 |
3.5 |
|
LP-933 |
9 |
33 |
40 |
50 |
3.3 |
|
LP-936 |
9 |
36.5 |
45 |
55 |
3.5 |
10521 |
LP-963 |
9 |
63 |
70 |
81 |
3.5 |
|
LP-9536 |
9.5 |
36 |
45 |
56 |
3.3 |
|
LP-9539 |
9.5 |
39 |
51 |
62 |
3.3 |
|
LP-1033 |
10 |
33 |
40 |
51 |
3.5 |
|
LP-1036 |
10 |
36.5 |
45 |
56 |
3.5 |
|
LP-1040 |
10 |
40 |
45 |
56 |
3.5 |
10522 |
LP-1139 |
11 |
39 |
51 |
61 |
3.5 |
|
LP-1140 |
11 |
40 |
56 |
56 |
3.5 |
10523 |
LP-1236 |
12 |
36.5 |
45 |
56 |
3.5 |
|

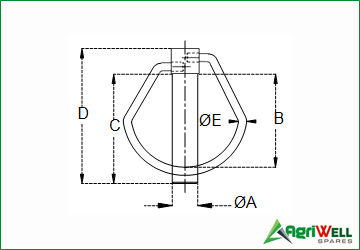

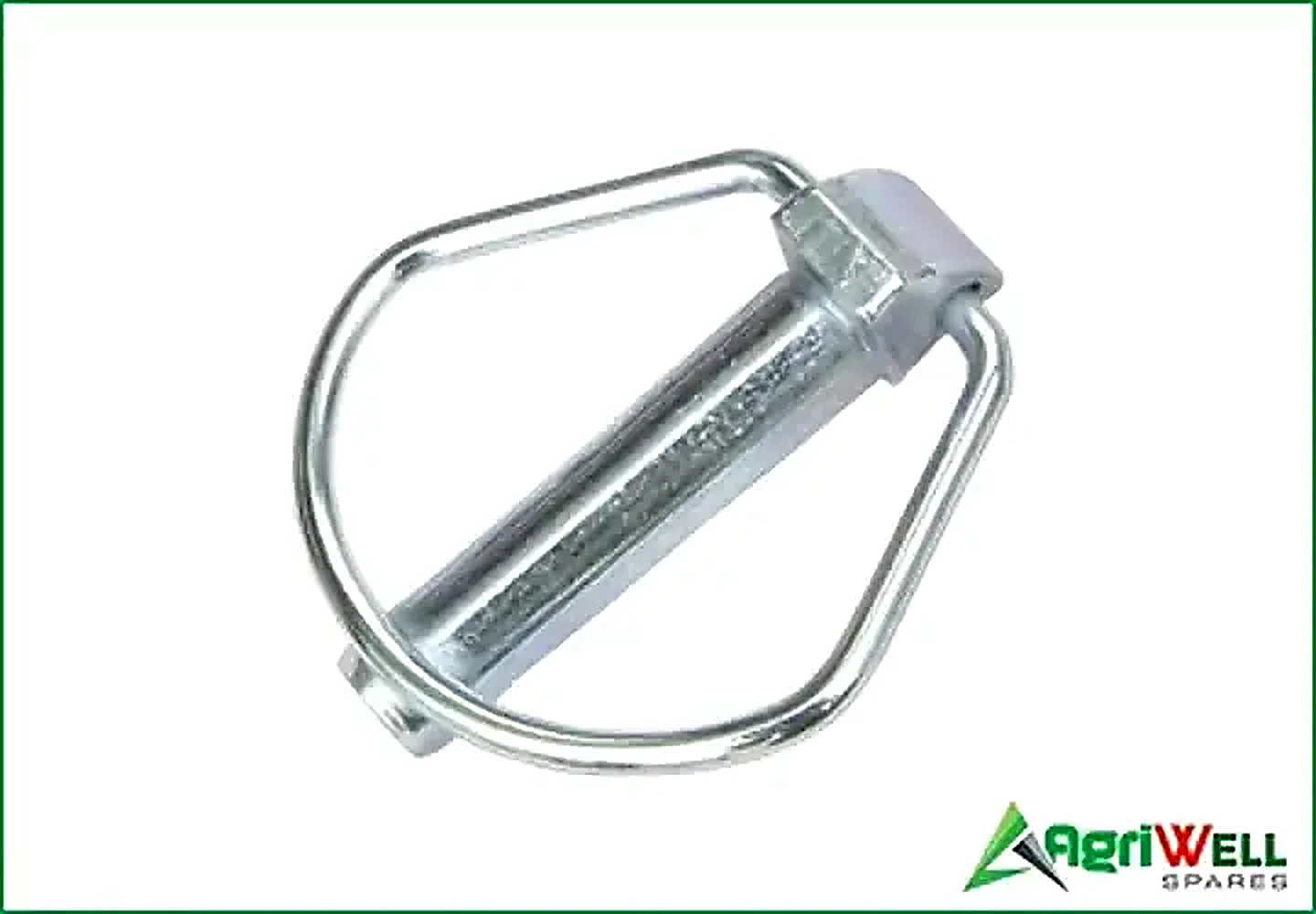

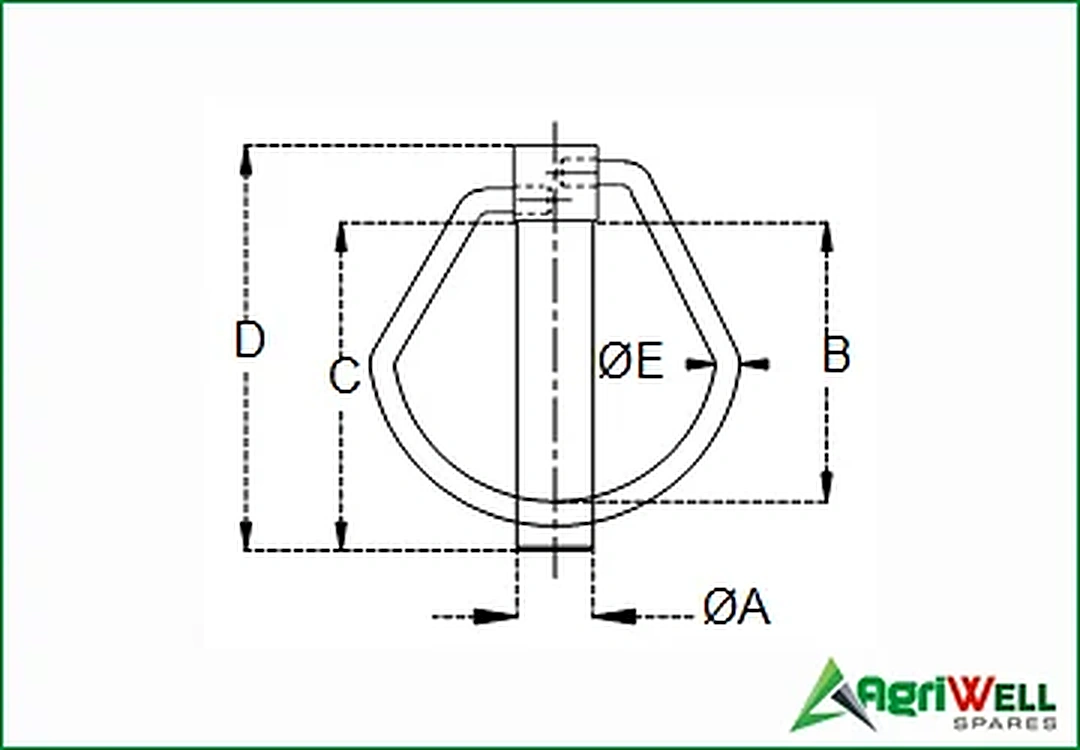

LINCH PINS PEAR SHAPE
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dia. ØE (mm) |
Ref. Number |
LPPS-4523 |
4.5 |
23 |
28.5 |
35 |
2 |
00115 |
LPPS-4524 |
4.5 |
24 |
38 |
44 |
2 |
|
LPPS-4530 |
4.5 |
30 |
38 |
44 |
2 |
|
LPPS-535 |
5 |
35 |
39.5 |
46 |
2.5 |
00099 |
LPPS-632 |
6 |
32 |
40 |
48 |
2.4 |
|
LPPS-636 |
6 |
36 |
46.5 |
54 |
3 |
00100 |
LPPS-740 |
7 |
40 |
45 |
54 |
2.3 |
|
LPPS-840 |
8 |
40 |
46 |
56 |
3.5 |
00102 |
LPPS-940 |
9 |
40 |
45 |
56 |
3.5 |
00103 |
LPPS-1040 |
10 |
40 |
46 |
58 |
3.5 |
00104 |
LPPS-1140 |
11 |
40 |
46 |
58 |
3.5 |
00105 |
LPPS-1148 |
11 |
48 |
53 |
78 |
4 |
|
LPPS-1556 |
15 |
56.5 |
62 |
84.5 |
4 |
|

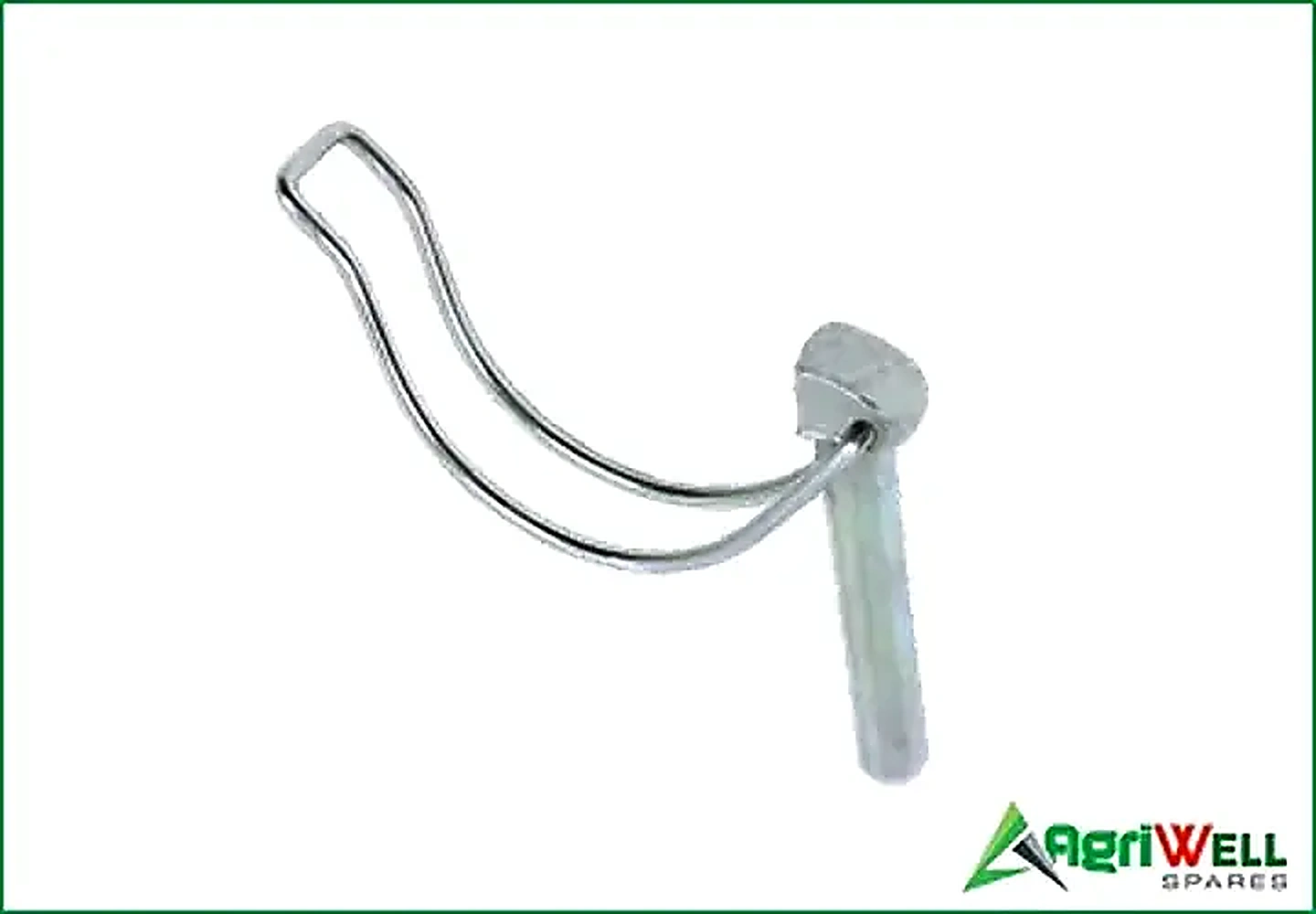

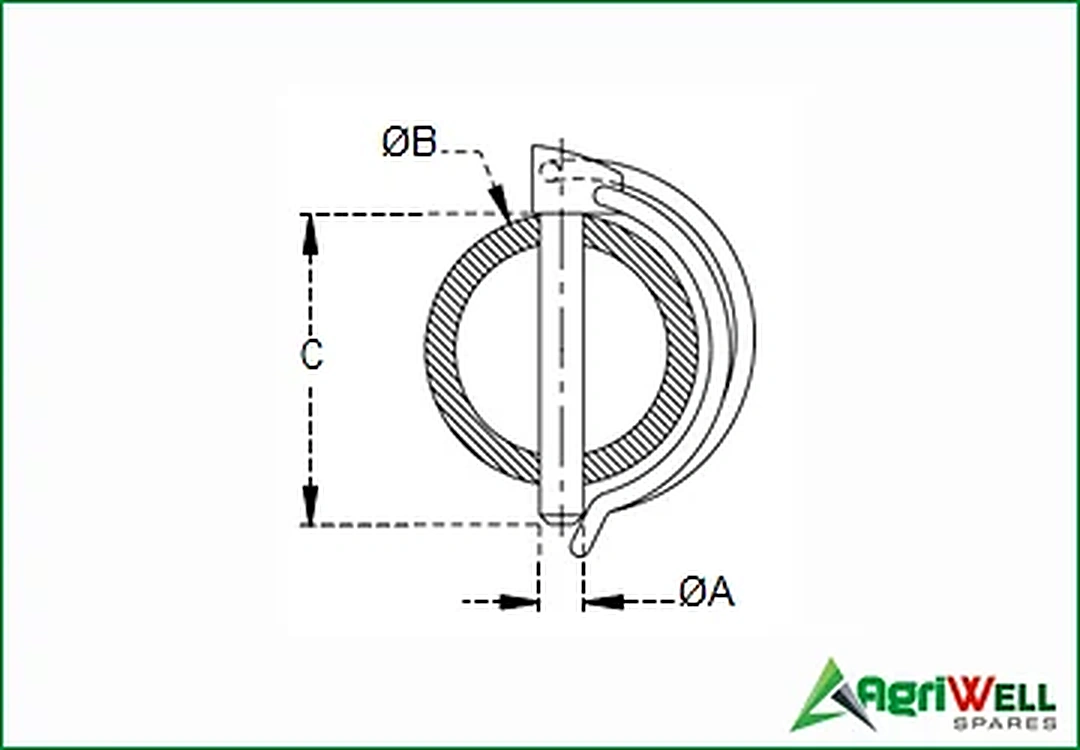

PIPE LINCH PINS
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Ref. Number |
LPP-4528 |
4.5 |
28 |
32 |
S-12793 |
LPP-636 |
6 |
36 |
40 |
S-12794 |
LPP-834 |
8 |
34 |
38 |
S-12795 |
LPP-840 |
8 |
40 |
45 |
S-12796 |
LPP-855 |
8 |
55 |
60 |
S-12797 |
LPP-1045 |
10 |
45 |
50 |
S-12798 |
LPP-1055 |
10 |
55 |
60 |
S-12799 |

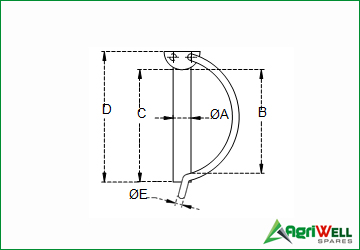

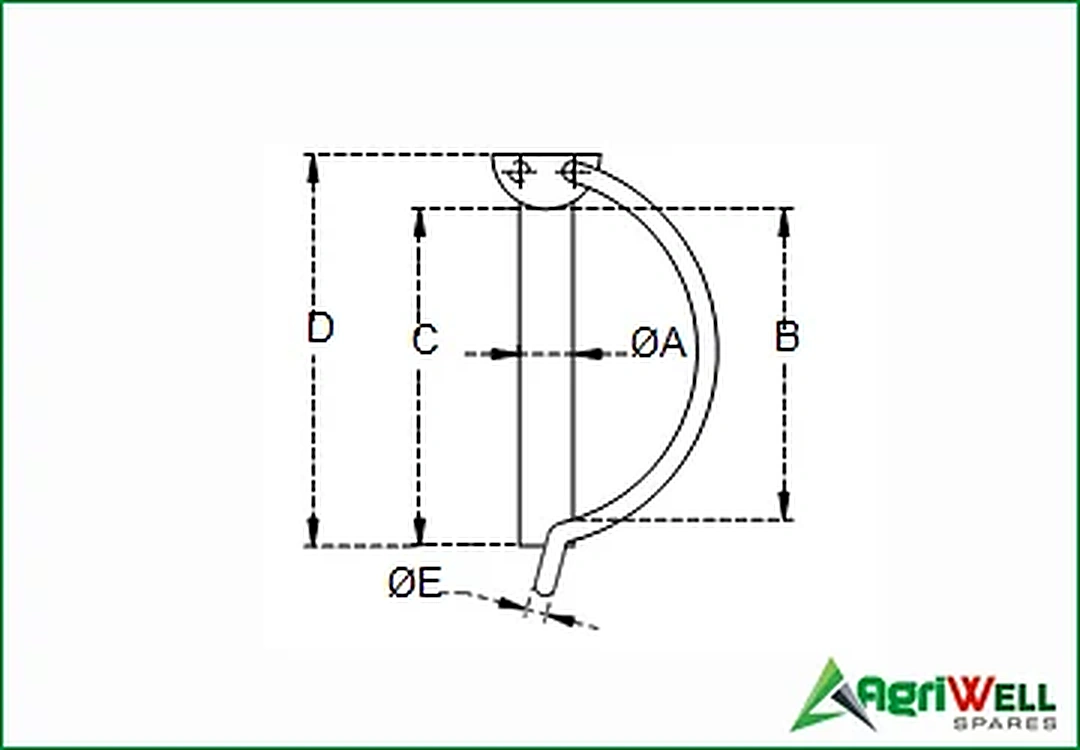

PIPE LINCH PINS-PRESSED HEAD
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dia. ØE (mm) |
LPPH-734 |
7 |
34 |
33 |
39 |
2.5 |
LPPH-738 |
7 |
38 |
37 |
43 |
2.7 |
LPPH-742 |
7 |
42 |
41 |
47 |
2.7 |
LPPH-834 |
8 |
34 |
33 |
39 |
2.5 |
LPPH-838 |
8 |
38 |
37 |
43 |
2.7 |
LPPH-842 |
8 |
42 |
41 |
47 |
2.7 |
LPPH-846 |
8 |
46 |
45 |
51 |
3 |
LPPH-1034 |
10 |
34 |
33 |
39 |
2.5 |
LPPH-1038 |
10 |
38 |
37 |
43 |
2.7 |
LPPH-1042 |
10 |
42 |
41 |
47 |
2.7 |
LPPH-1046 |
10 |
46 |
45 |
51 |
3 |
