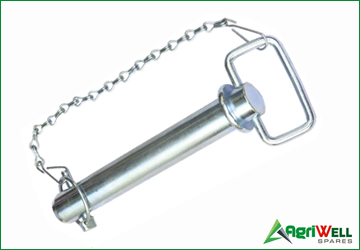

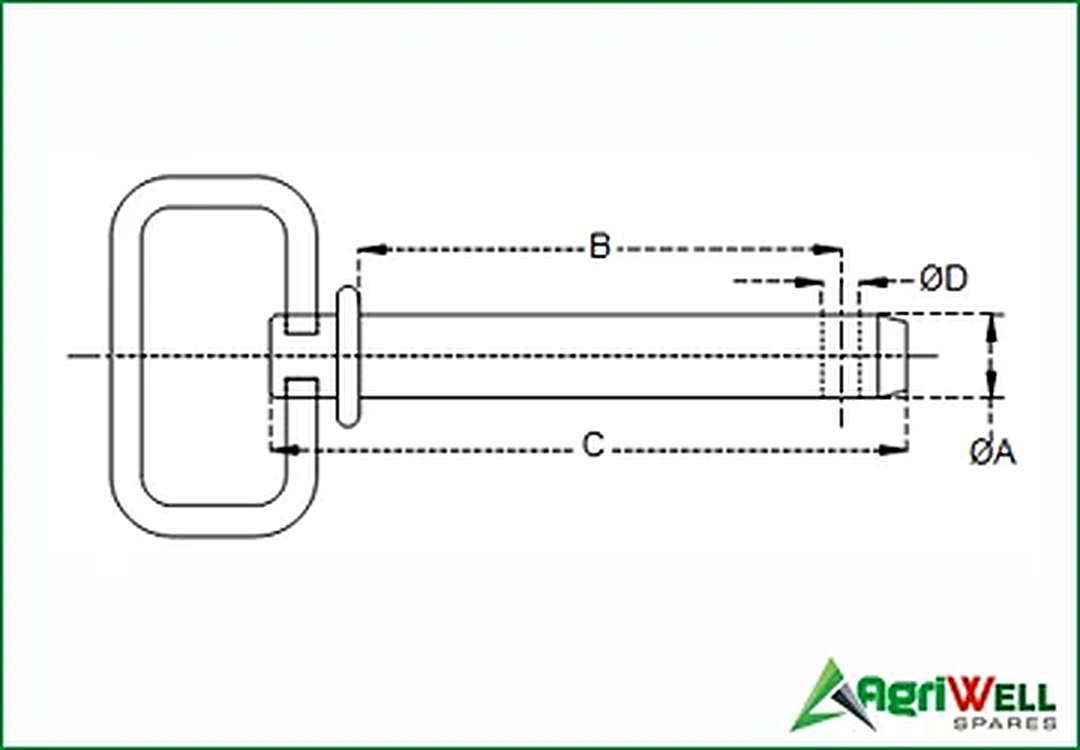

HITCH PINS-WITH LINCH PIN & CHAIN
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Ref. Number |
HPLC-127925 |
12.7 |
92.5 |
127 |
6.5 |
|
HPLC-127111 |
12.7 |
111 |
146 |
6.5 |
|
HPLC-127165 |
12.7 |
165 |
200 |
6.5 |
|
HPLC-159103 |
15.9 |
103 |
136 |
6.5 |
|
HPLC-159111 |
15.9 |
111 |
146 |
6.5 |
|
HPLC-159165 |
15.9 |
165 |
200 |
6.5 |
|
HPLC-19103 |
19 |
103 |
140 |
6.5 |
|
HPLC-19110 |
19 |
110 |
145 |
8 |
00001 |
HPLC-19115 |
19 |
115 |
153 |
12 |
|
HPLC-19165 |
19 |
165 |
205 |
8 |
00002 |
HPLC-22115 |
22 |
115 |
153 |
6.5 |
|
HPLC-22128 |
22 |
128.5 |
150 |
6.5 |
|
HPLC-22165 |
22 |
165 |
205 |
10 |
00003 |
HPLC-25165 |
25 |
165 |
205 |
10 |
00004 |
HPLC-25189 |
25 |
189 |
227 |
12 |
|
HPLC-28100 |
28 |
100 |
127 |
12 |
|
HPLC-28120 |
28 |
120 |
160 |
10 |
00093 |
HPLC-28190 |
28 |
190.5 |
228 |
6.5 |
|
HPLC-28165 |
28 |
165 |
205 |
10 |
00009 |
HPLC-30183 |
30 |
183 |
221 |
12 |
|
HPLC-3175162 |
31.75 |
162 |
204 |
6.5 |
|
HPLC-3175189 |
31.75 |
189 |
227 |
12 |
|
HPLC-32165 |
32 |
165 |
200 |
10 |
00005 |
HPLC-32190 |
32 |
190.5 |
228 |
6.5 |
|
HPLC-35189 |
35 |
189 |
227 |
12 |
|
HPLC-38187 |
38 |
187 |
227 |
12 |
|

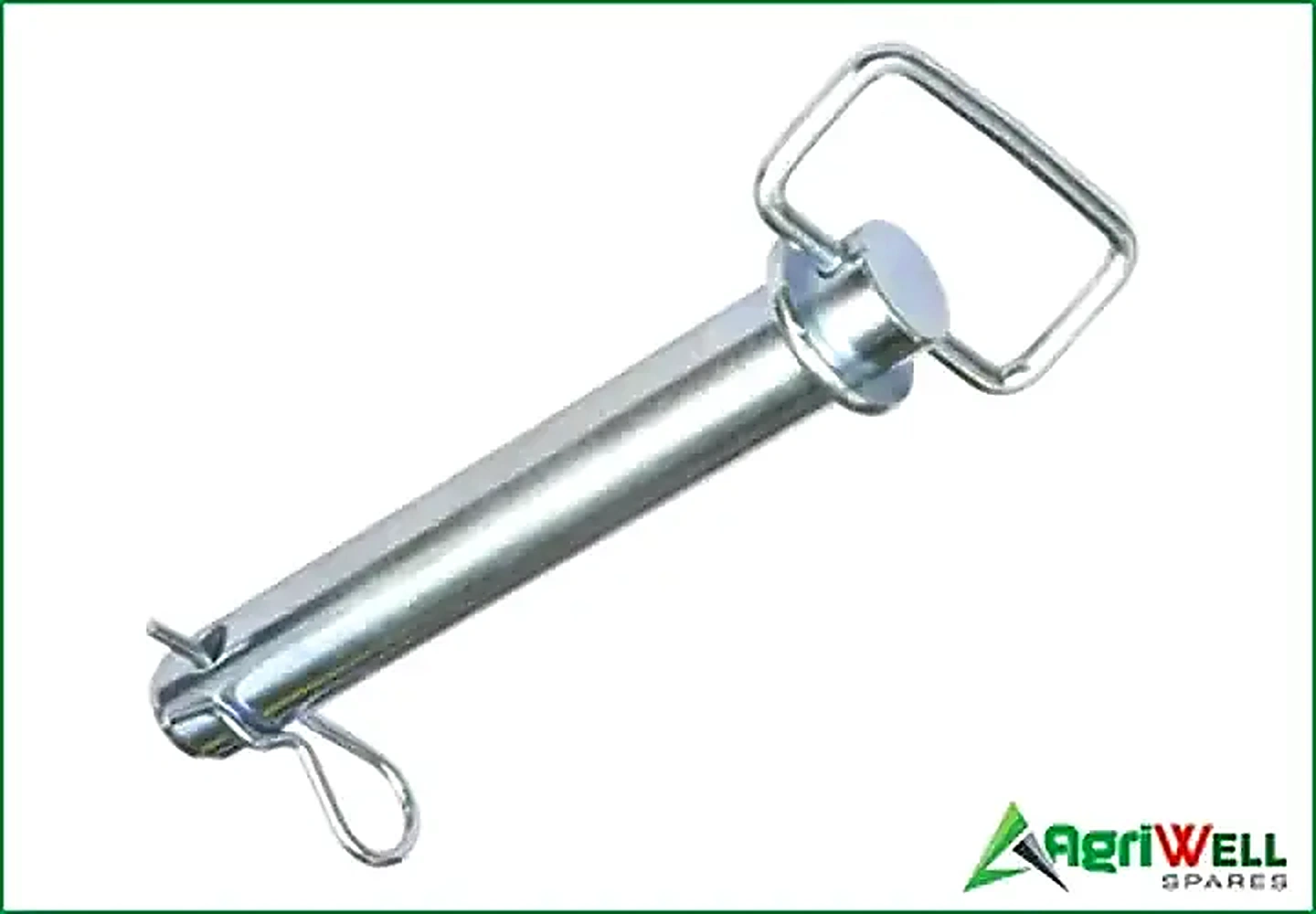

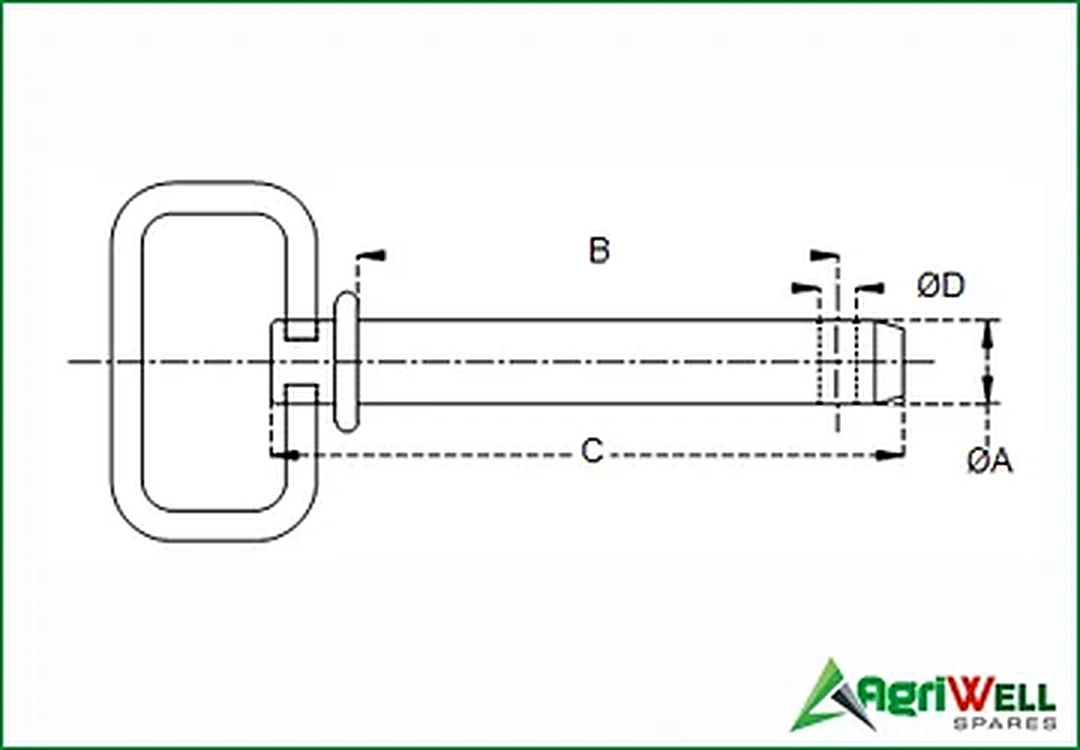

HITCH PINS-WITH HAIR PIN
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
HPH-95104 |
9.5 |
104 |
141 |
3 |
HPH-95110 |
9.5 |
110 |
147 |
3 |
HPH-12792 |
12.7 |
92 |
127 |
4 |
HPH-127105 |
12.7 |
105 |
142 |
3 |
HPH-127110 |
12.7 |
110 |
147 |
4 |
HPH-127148 |
12.7 |
148 |
185 |
3 |
HPH-127162 |
12.7 |
162 |
199 |
4 |
HPH-159105 |
15.9 |
105 |
136 |
4 |
HPH-159149 |
15.9 |
149 |
186 |
3.5 |
HPH-16110 |
16 |
110 |
147 |
4 |
HPH-16162 |
16 |
162 |
199 |
4 |
HPH-1998 |
19 |
98 |
130 |
4.5 |
HPH-19105 |
19 |
105 |
142 |
5 |
HPH-19110 |
19 |
110 |
147 |
4.5 |
HPH-19157 |
19 |
157 |
194 |
4.5 |
HPH-19162 |
19 |
162 |
203 |
4.5 |
HPH-22110 |
22 |
110 |
147 |
5 |
HPH-22157 |
22 |
157 |
194 |
5 |
HPH-22162 |
22 |
162 |
199 |
5 |
HPH-22181 |
22 |
181 |
218 |
5 |
HPH-25103 |
25 |
103 |
128 |
5 |
HPH-25110 |
25 |
110 |
147 |
6 |
HPH-25157 |
25 |
157 |
194 |
6 |
HPH-25162 |
25 |
162 |
199 |
6 |
HPH-25181 |
25 |
181 |
214 |
6 |
HPH-25183 |
25 |
183 |
220 |
6 |
HPH-254118 |
25.4 |
118 |
155 |
6 |
HPH-28183 |
28 |
183 |
220 |
7 |
HPH-286162 |
28.6 |
162 |
199 |
6.5 |
HPH-286181 |
28.6 |
181 |
118 |
6.5 |
HPH-3175162 |
31.75 |
162 |
199 |
7 |
HPH-32187 |
32 |
187 |
220 |
7 |

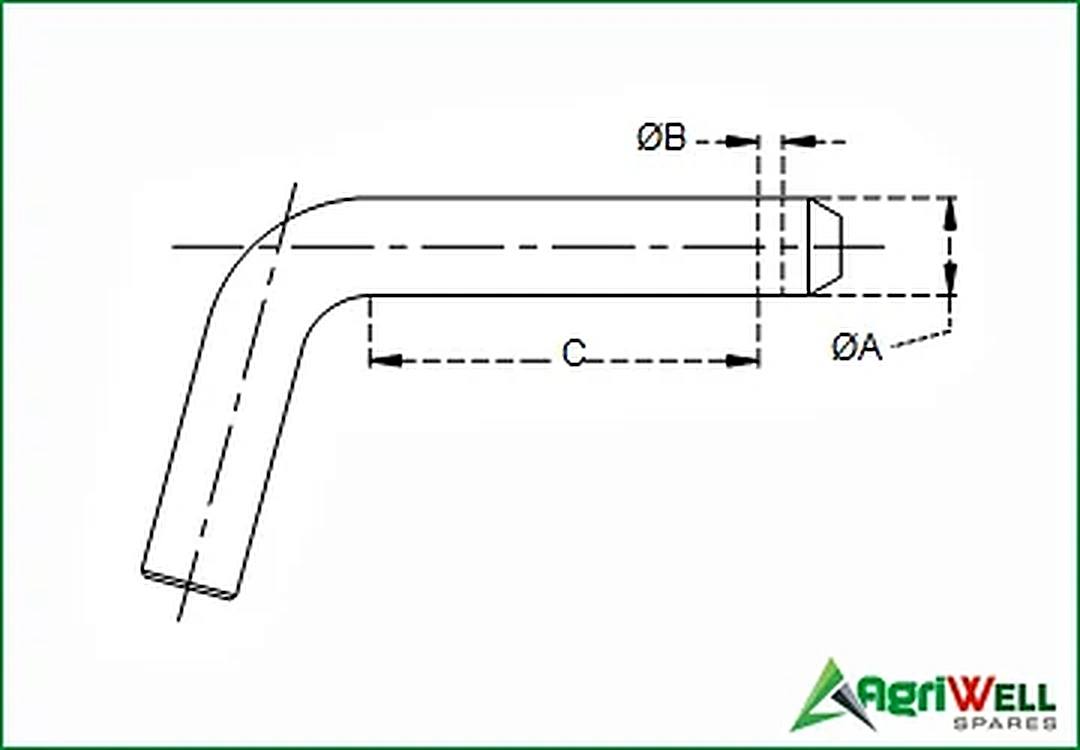

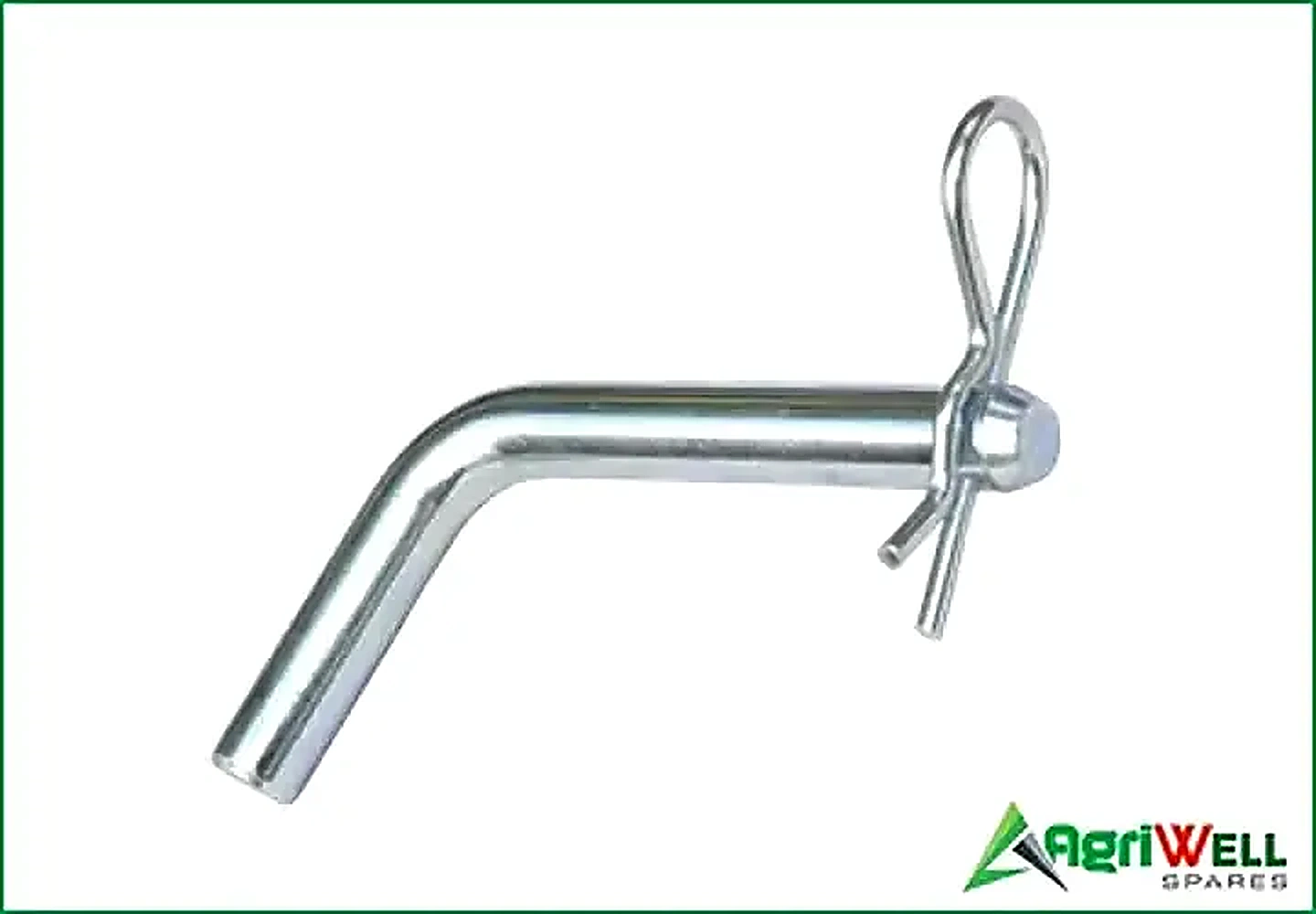

BENT HITCH PINS
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Ref. Number |
BHP-12776 |
12.7 |
4.75 |
76.2 |
01410 / P71111 |
BHP-158776 |
15.87 |
4.75 |
76.2 |
01411 / P71112 |
BHP-190588 |
19.05 |
4.75 |
88.9 |
01412 / P71113 |

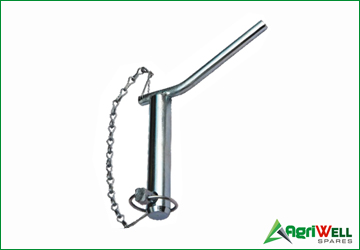

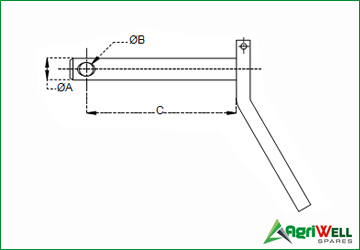

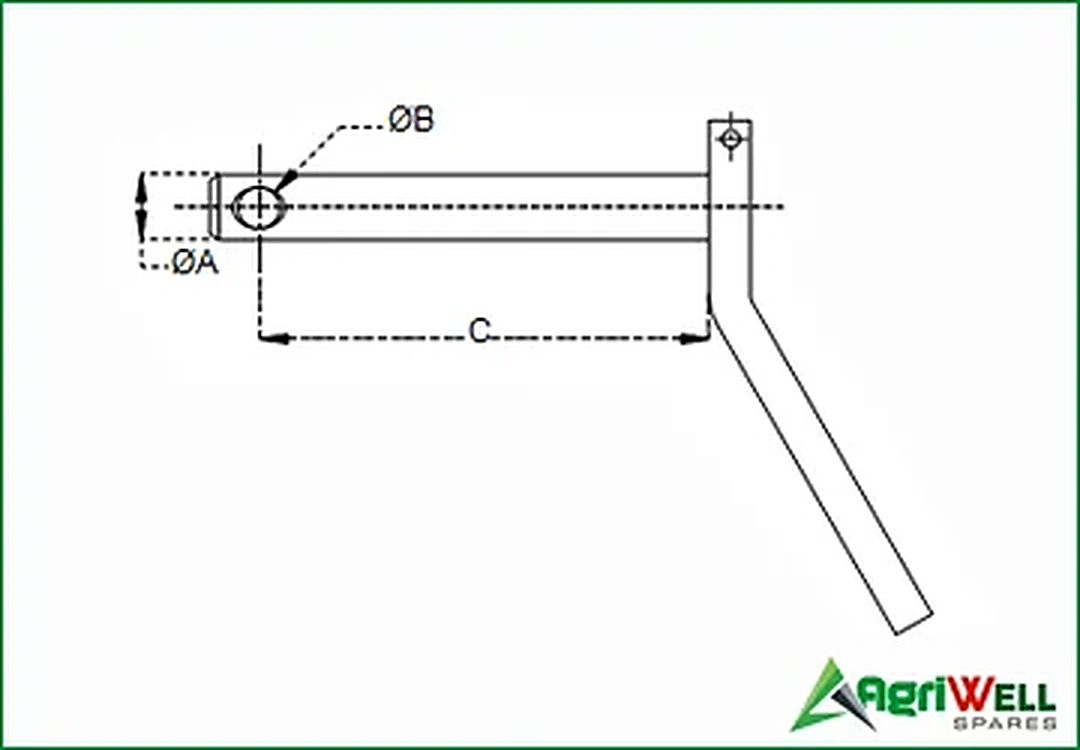

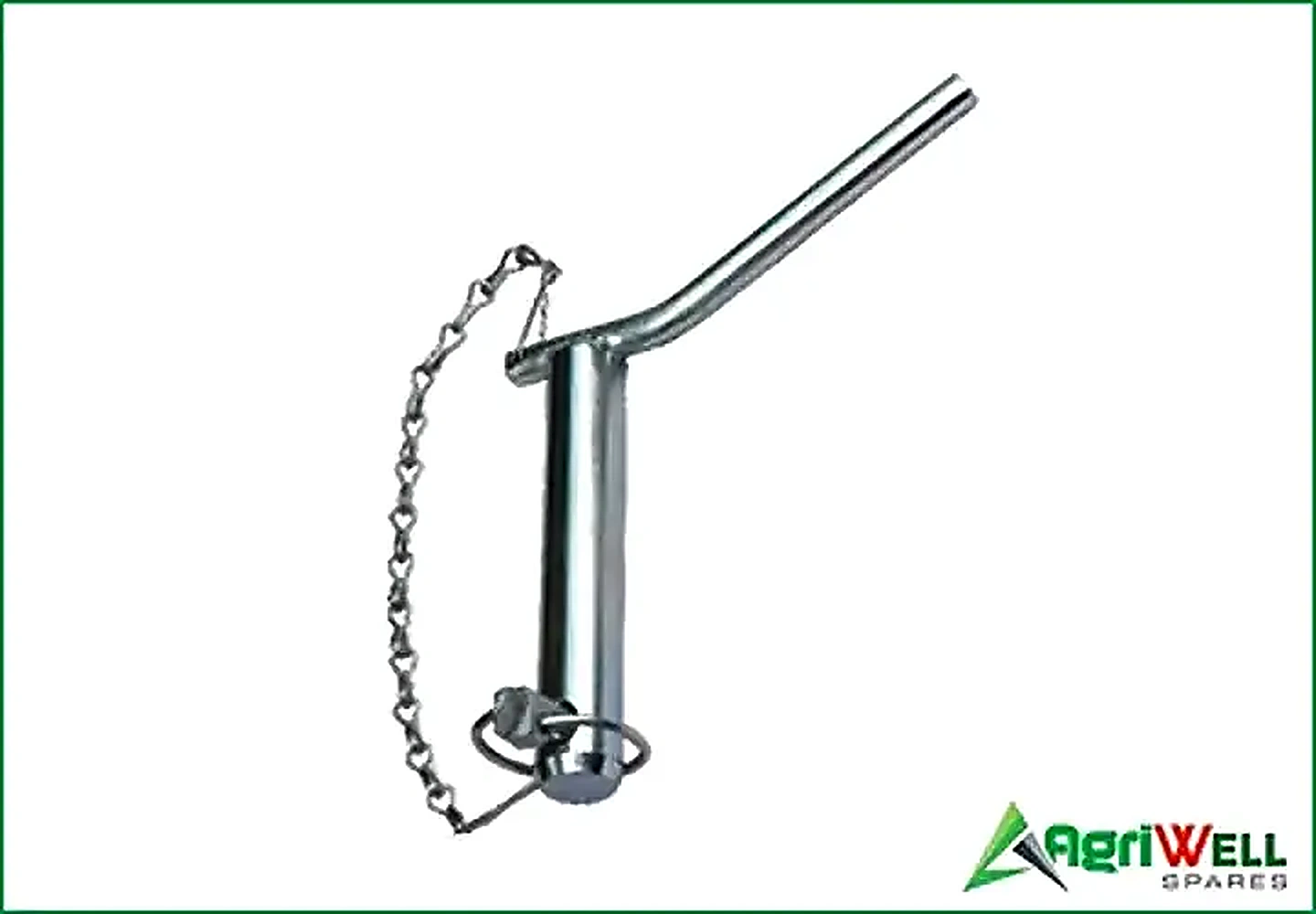

BENT HANDLE HITCH PIN (With & Without Linch Pin, Chain)
Part Number (With L/P, Chain) |
Part Number (Without L/P, Chain) |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Ref. Number |
BHHPC-1912123 |
BHHP-1912123 |
19 |
12 |
123 |
|
BHHPC-1912130 |
BHHP-1912130 |
19 |
12 |
130 |
09080 |
BHHPC-1912135 |
BHHP-1912135 |
19 |
12 |
135 |
|
BHHPC-1912175 |
BHHP-1912175 |
19 |
12 |
175 |
09081 |
BHHPC-2212123 |
BHHP-2212123 |
22 |
12 |
123 |
|
BHHPC-2212130 |
BHHP-2212130 |
22 |
12 |
130 |
09082 |
BHHPC-2212135 |
BHHP-2212135 |
22 |
12 |
135 |
|
BHHPC-2212175 |
BHHP-2212175 |
22 |
12 |
175 |
09083 |
BHHPC-2512123 |
BHHP-2512123 |
25 |
12 |
123 |
|
BHHPC-2512130 |
BHHP-2512130 |
25 |
12 |
130 |
09084 |
BHHPC-2512135 |
BHHP-2512135 |
25 |
12 |
135 |
|
BHHPC-2512175 |
BHHP-2512175 |
25 |
12 |
175 |
09085 |
BHHPC-2812123 |
BHHP-2812123 |
28 |
12 |
123 |
|
BHHPC-2812130 |
BHHP-2812130 |
28 |
12 |
130 |
09086 |
BHHPC-2812135 |
BHHP-2812135 |
28 |
12 |
135 |
|
BHHPC-2812175 |
BHHP-2812175 |
28 |
12 |
175 |
09087 |
BHHPC-3212175 |
BHHP-3212175 |
32 |
12 |
175 |
09088 |
