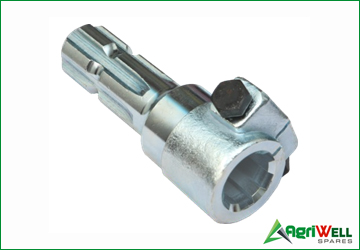

P.T.O. ADAPTORS WITH BOLTS
Part Number |
Outer Profile (Male) |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTA-1001 |
1-3/8"x 6 |
1-3/8"x 6 |
150 |
00073 |
PTA-1002 |
1-3/8"x 6 |
1-3/8"x 6 |
165 |
05930 |
PTA-1003 |
1-3/8"x 6 |
1-3/8"x 21 |
150 |
00075 |
PTA-1004 |
1-3/8"x 6 |
1-3/4"x 20 |
150 |
37885 |
PTA-1005 |
1-3/4"x 6 |
1-3/8"x 6 |
160 |
05937 |

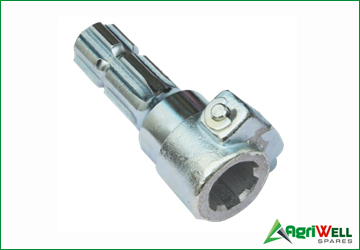

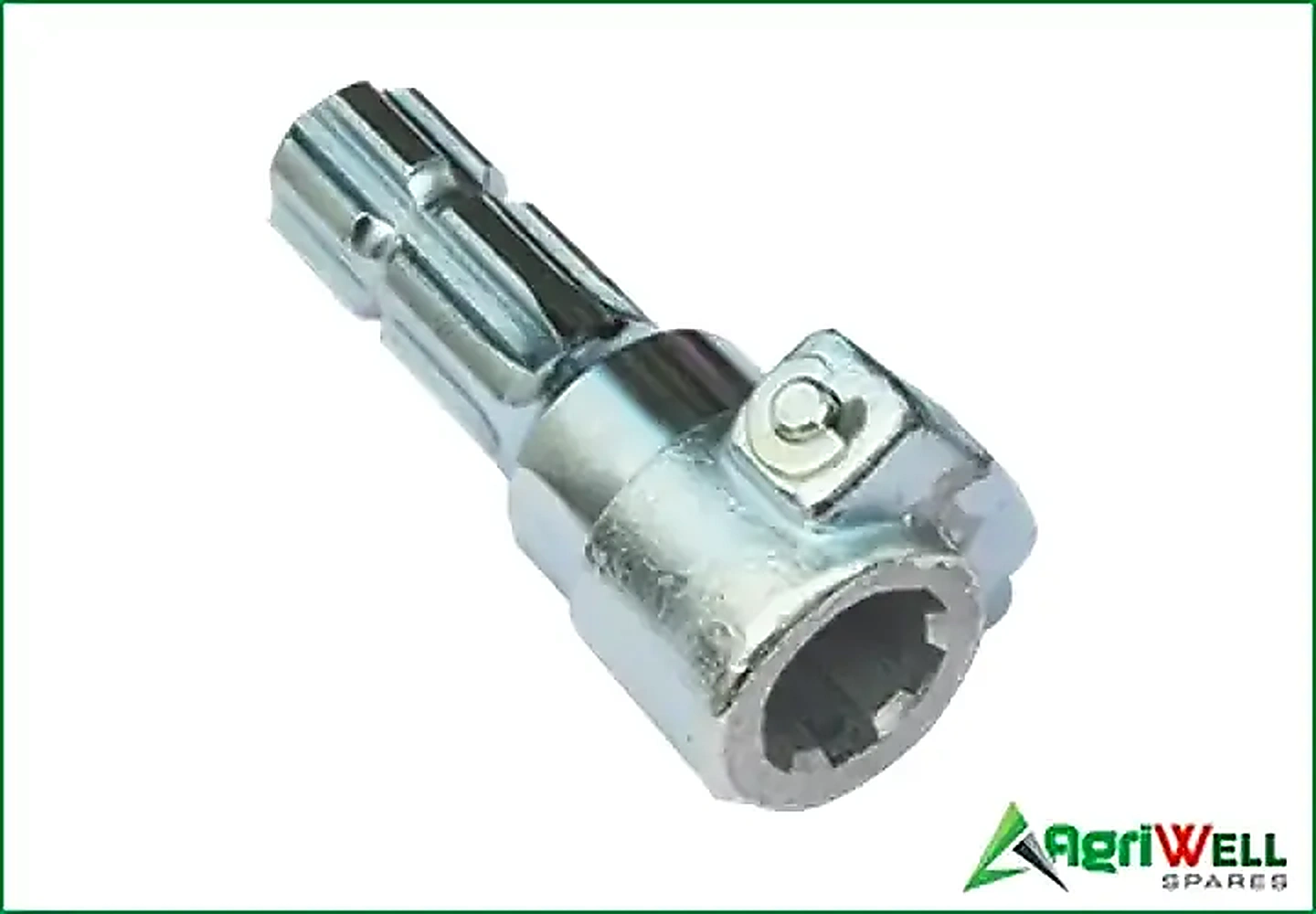

P.T.O. ADAPTORS WITH BUTTON
Part Number |
Outer Profile (Male) |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTA-1011 |
1-3/8"x 6 |
1-3/8"x 6 |
150 |
00070 |
PTA-1012 |
1-3/8"x 6 |
1-3/4"x 20 |
165 |
05935 |
PTA-1013 |
1-3/8"x 6 |
1-3/8"x 21 |
150 |
05933 |
PTA-1014 |
1-3/8"x 21 |
1-3/8"x 6 |
150 |
10768 |
PTA-1015 |
1-3/4"x 6 |
1-3/8"x 6 |
160 |
00049 |
PTA-1016 |
1-3/4"x 6 |
1-3/4"x 20 |
165 |
05936 |
PTA-1017 |
1-3/4"x 6 |
1-3/8"x 21 |
160 |
05934 |

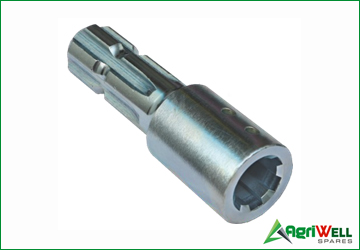

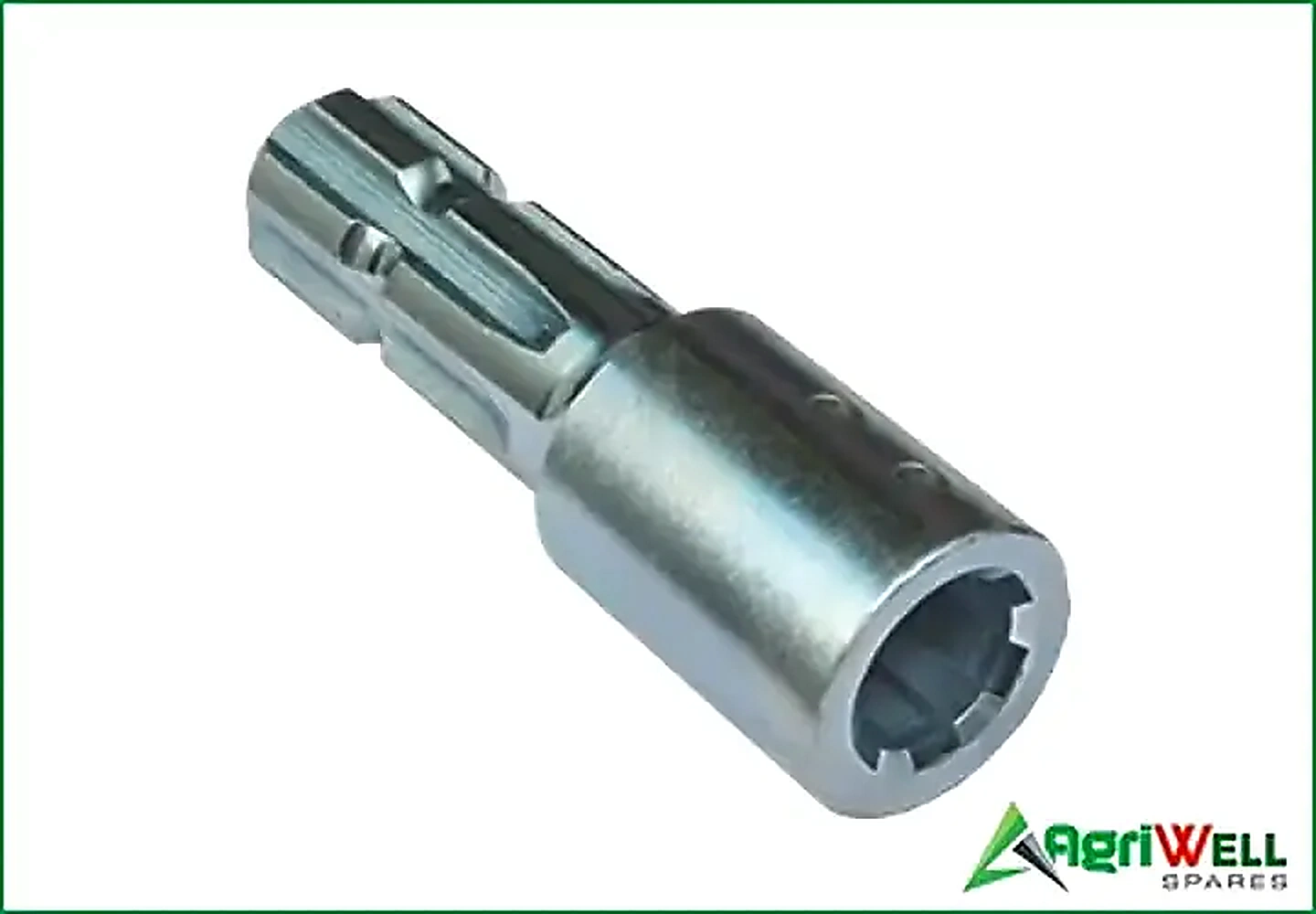

P.T.O. ADAPTORS
Part Number |
Outer Profile (Male) |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTA-1021 |
1-3/8"x 6 |
1-3/8"x 6 |
150 |
00155 |
PTA-1022 |
1-3/8"x 6 |
16 UNI 221 16x20x4 mm x 6 |
120 |
00164 |
PTA-1023 |
1-3/8"x 6 |
21 UNI 221 21x25x5 mm x 6 |
140 |
00157 |
PTA-1024 |
1-3/8"x 6 |
26 UNI 220 26x30x6 mm x 6 |
140 |
00169 |

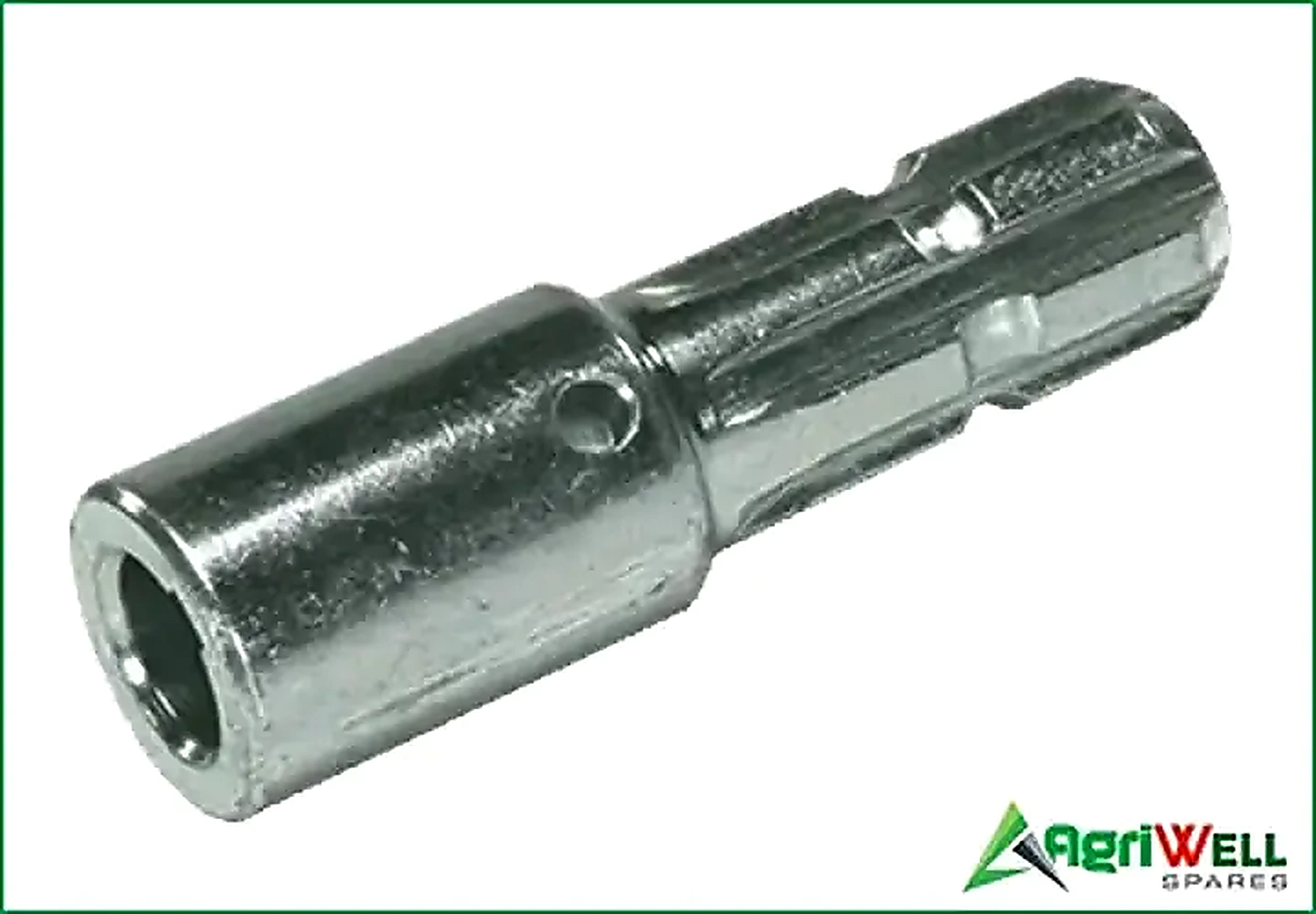

P.T.O. ADAPTORS WITH HOLE
Part Number |
Outer Profile (Male) |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTA-1025 |
1-3/8"x 6 |
20 without Slot |
120 |
00141 |
PTA-1026 |
1-3/8"x 6 |
25 without Slot |
120 |
00131 |
PTA-1027 |
1-3/8"x 6 |
30 without Slot |
120 |
00134 |
PTA-1028 |
1-3/8"x 6 |
20 with Slot 6x2.8 |
145 |
27309 |
PTA-1029 |
1-3/8"x 6 |
25 with Slot 8x3.3 |
145 |
00126 |
PTA-1030 |
1-3/8"x 6 |
30 with Slot 8x3.3 |
145 |
27310 |

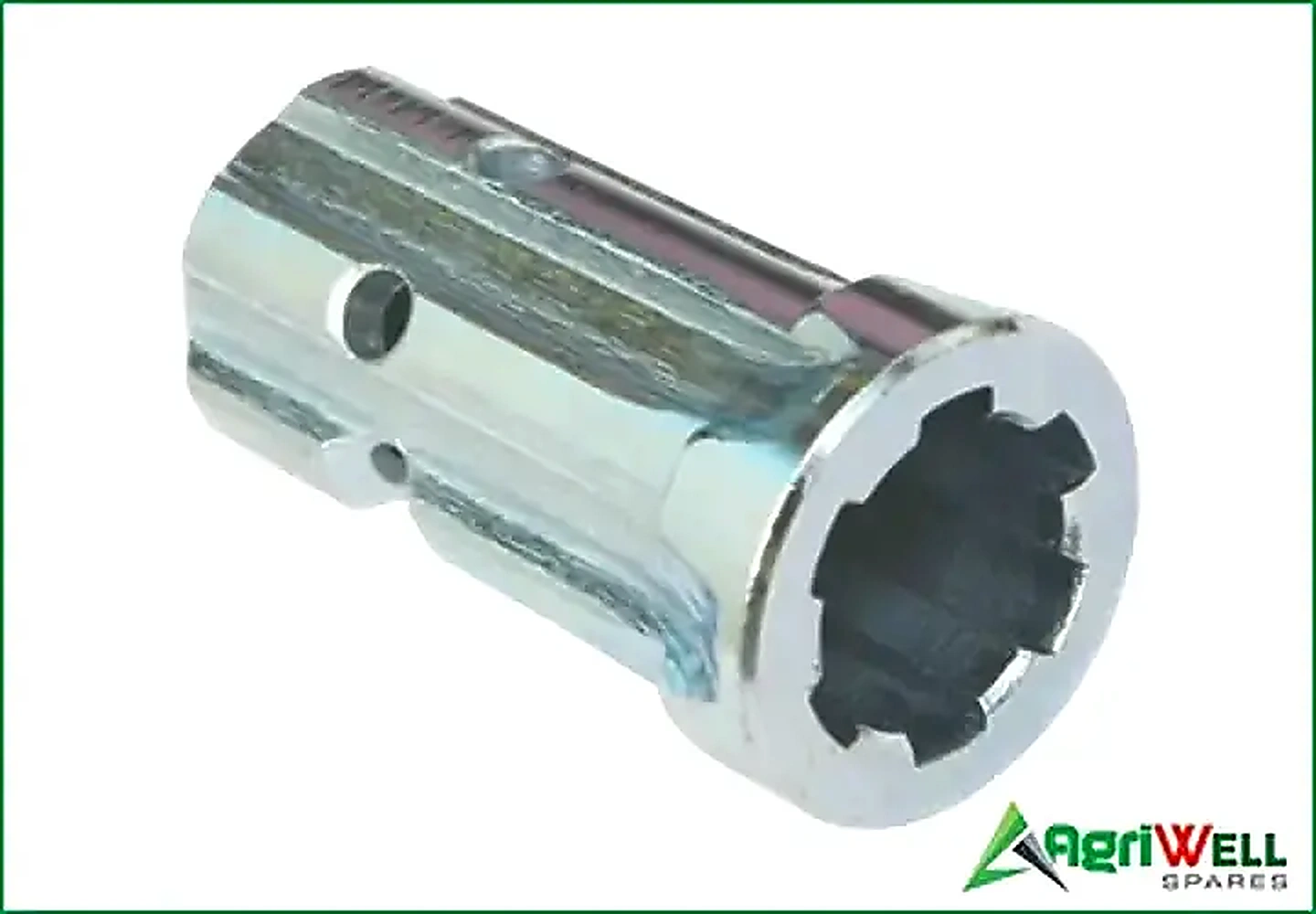

P.T.O. BUSHING
Part Number |
Outer Profile (Male) |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTB-1035 |
1-3/8"x 6 |
1-1/8"x 6 |
76 |
00130 |
PTB-1036 |
1-3/8"x 6 |
1-1/8"x 6 |
47.5 |
27301 |

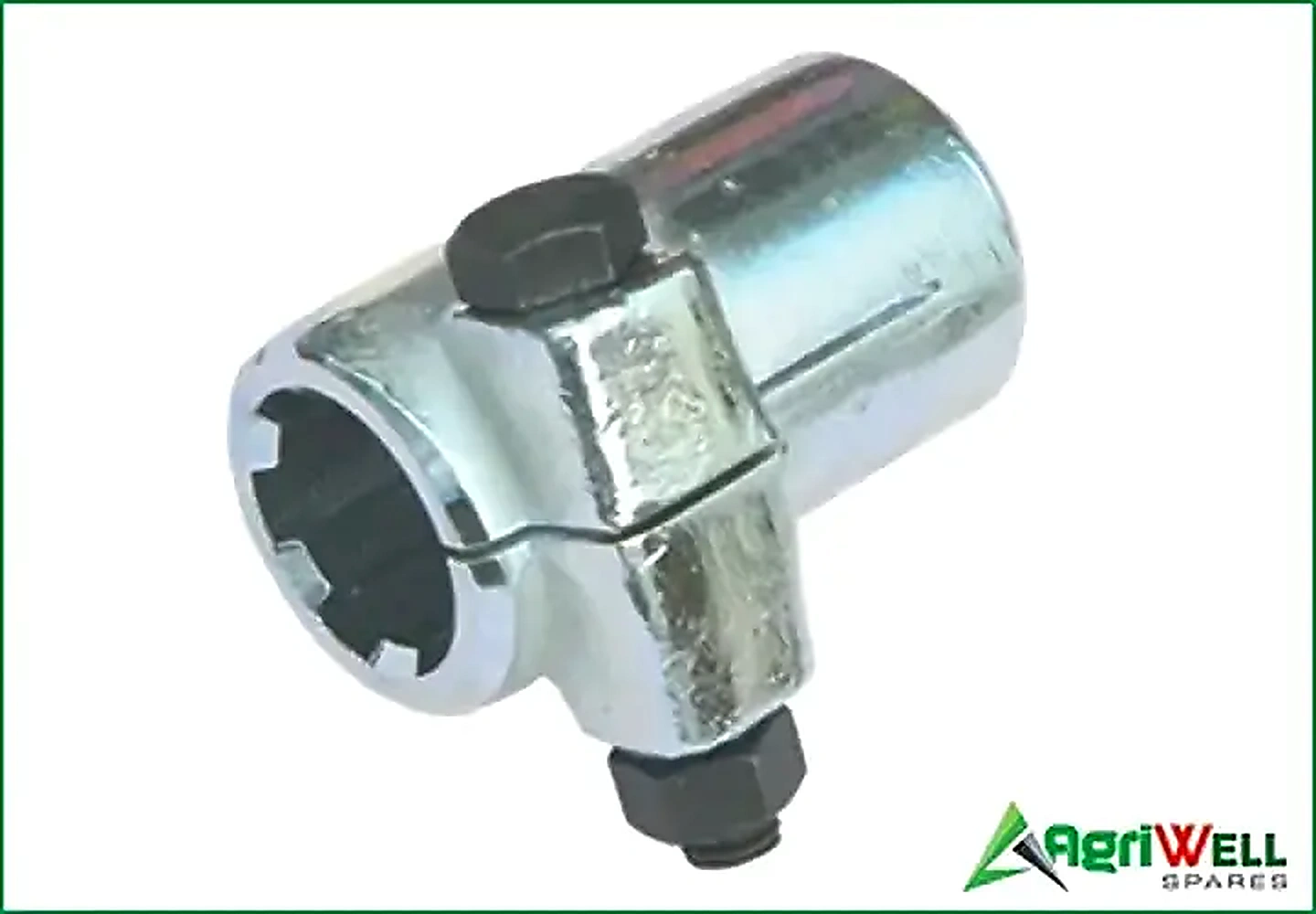

SUPLINED COUPLINGS WITH BOLT
Part Number |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTC-1041 |
1-3/8"x 6 |
80 |
00142 |
PTC-1042 |
1-3/8"x 21 |
80 |
27306 |
PTC-1043 |
1-3/4"x 6 |
100 |
27305 |
PTC-1044 |
1-3/8"x 6 |
130 |
27307 |

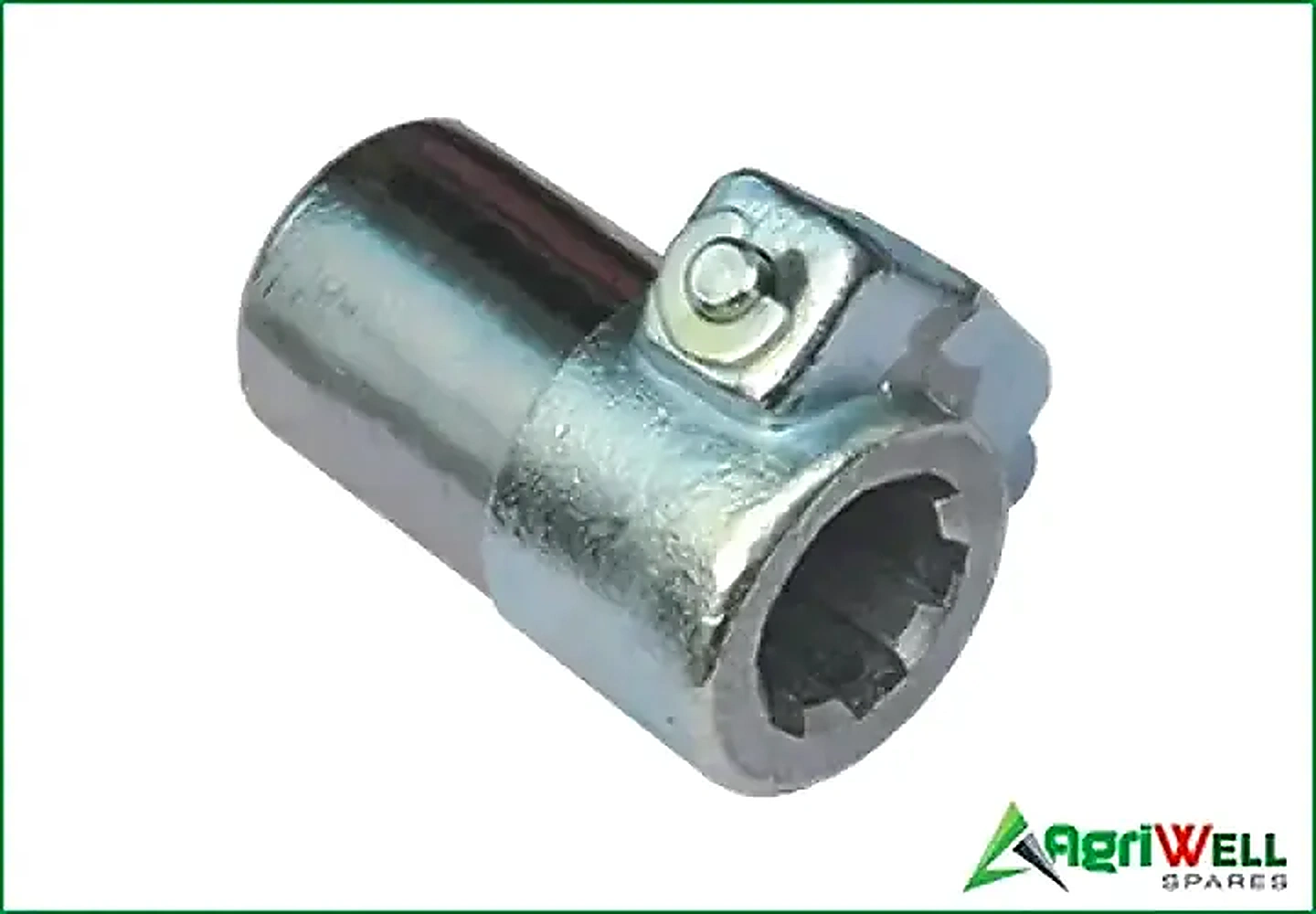

SUPLINED COUPLINGS WITH BUTTON
Part Number |
Inner Profile (Female) |
Total Length (mm) |
Ref. Number |
PTC-1045 |
1-3/8"x 6 |
80 |
12705 |
PTC-1046 |
1-3/8"x 21 |
80 |
27303 |
PTC-1047 |
1-3/4"x 6 |
100 |
05700 |
PTC-1048 |
1-3/4"x 20 |
100 |
27302 |
PTC-1049 |
1-3/8"x 6 |
130 |
27304 |

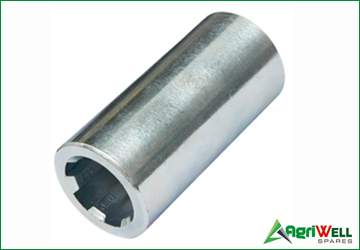

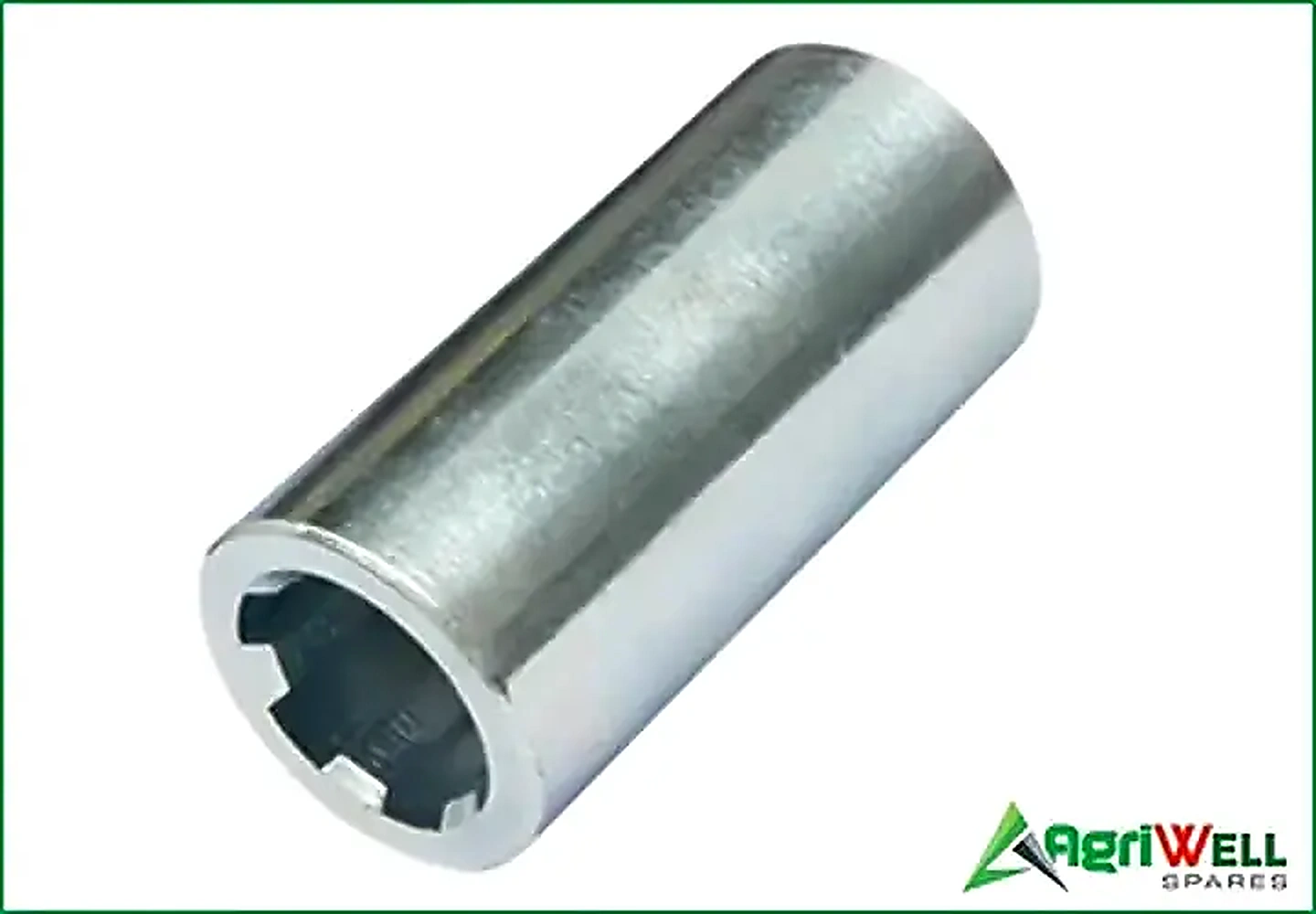

SUPLINED COUPLINGS
Part Number |
Inner Profile (Female) |
Dia. Ø (mm) |
Total Length (mm) |
Ref. Number |
PTC-1051 |
1-3/8"x 6 |
48 |
80 |
00238 |
PTC-1052 |
1-3/8"x 6 |
48 |
100 |
00168 |
PTC-1053 |
1-3/8"x 6 |
48 |
130 |
05701 |
PTC-1054 |
1-3/8"x 6 |
48 |
150 |
27316 |
PTC-1055 |
1-3/4"x 6 |
60 |
70 |
00147 |
PTC-1056 |
1-3/4"x 6 |
60 |
100 |
10582 |
PTC-1057 |
1-3/4"x 6 |
60 |
130 |
27317 |
PTC-1058 |
13 UNI 221, 13x16x3.5 mm x 6 |
28 |
40 |
05709 |
PTC-1059 |
16 UNI 221, 16x20x4 mm x 6 |
28 |
50 |
00162 |
PTC-1060 |
19x22x3.5 mm x 10 |
32 |
40 |
05710 |
PTC-1061 |
21 UNI 221, 21x25x5 mm x 6 |
38 |
60 |
00148 |
PTC-1062 |
23 UNI 221, 23x28x6 mm x 6 |
38 |
60 |
05708 |
PTC-1063 |
26 UNI 221, 26x30x6 mm x 6 |
42 |
60 |
00144 |
PTC-1064 |
DIN 5482, 20x17 mm x 12 |
28 |
40 |
00138 |

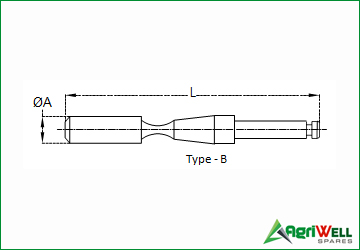

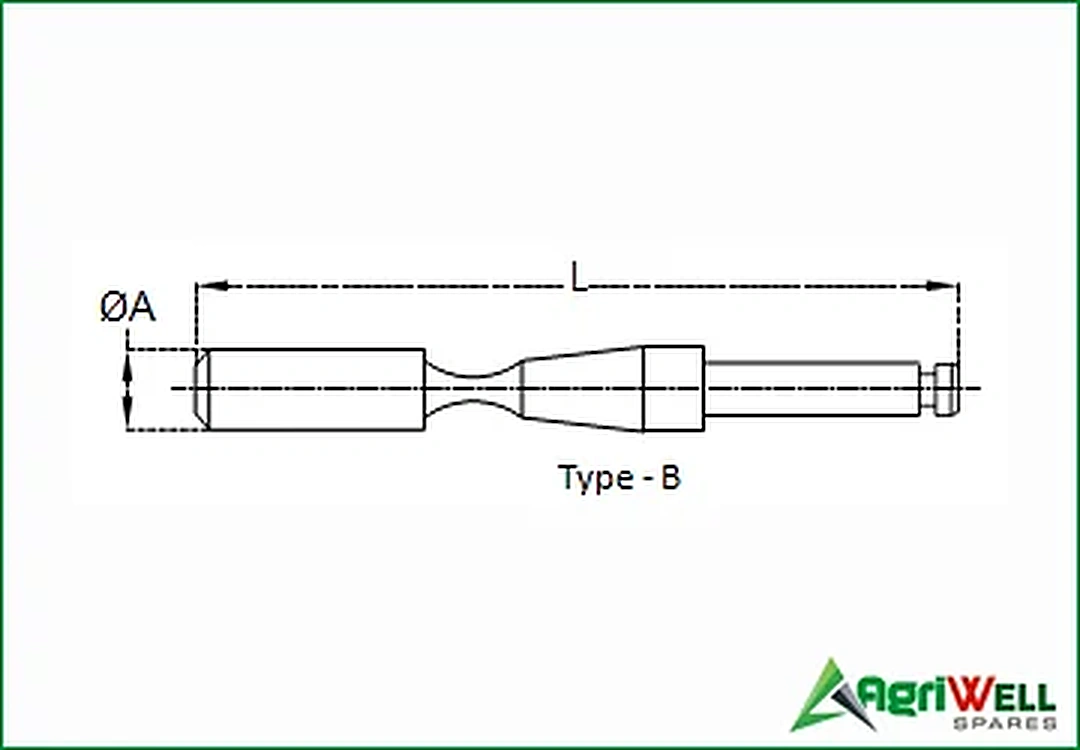

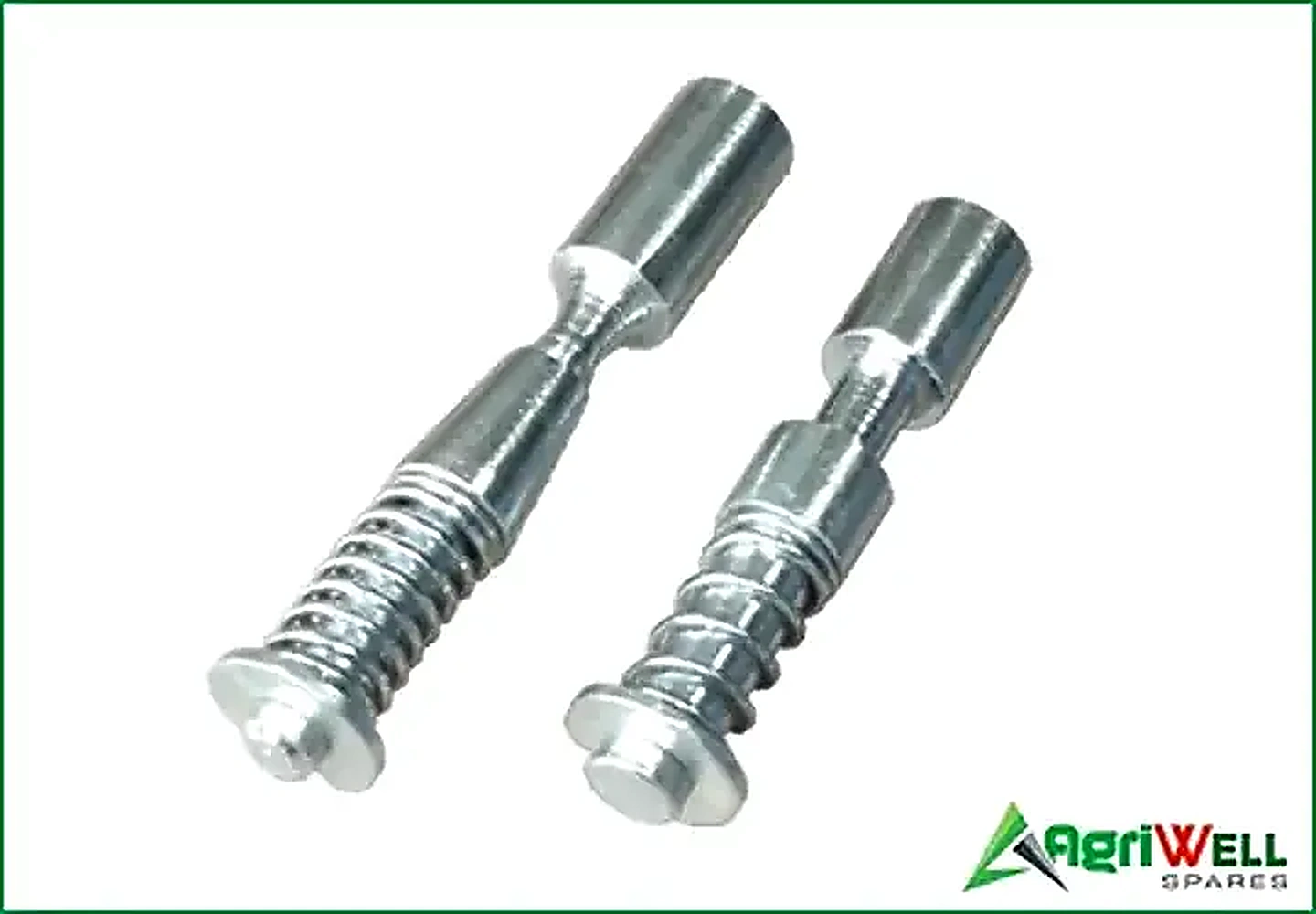

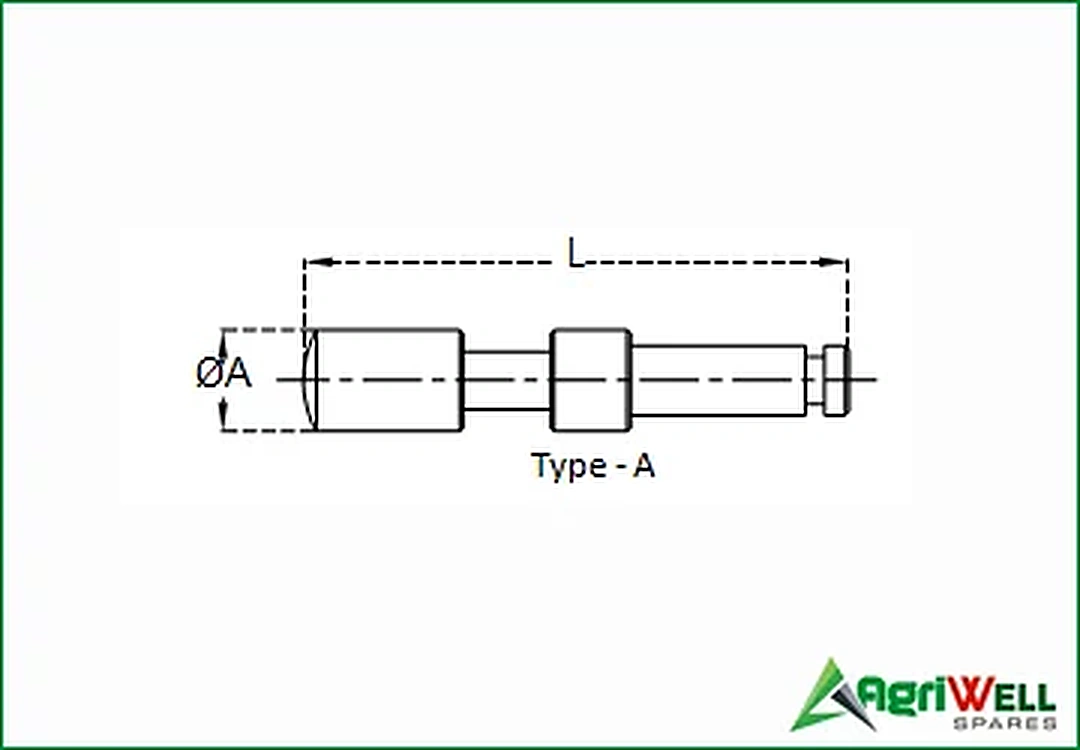

YOKE PIN-QUICK RELEASE
Part Number |
Dia. ØA (mm) |
Total Length (mm) |
Type |
Ref. Number |
PTYP-1080 |
14 |
75 |
A |
01080 |
PTYP-1081 |
16 |
95 |
A |
01081 |
PTYP-1090 |
14 |
86 |
B |
01090 |
SUPLINED SHAFTS WITH FLANG
Part Number |
Outer Profile (Male) |
Flang Dia. Ø (mm) |
Total Length (mm) |
Ref. Number |

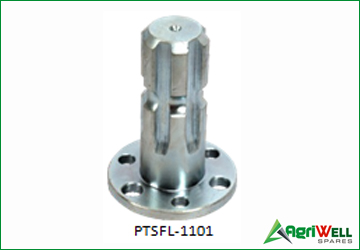

PTSFL-1101 |
1-3/8"x 6 |
70 |
90 |
00499 |

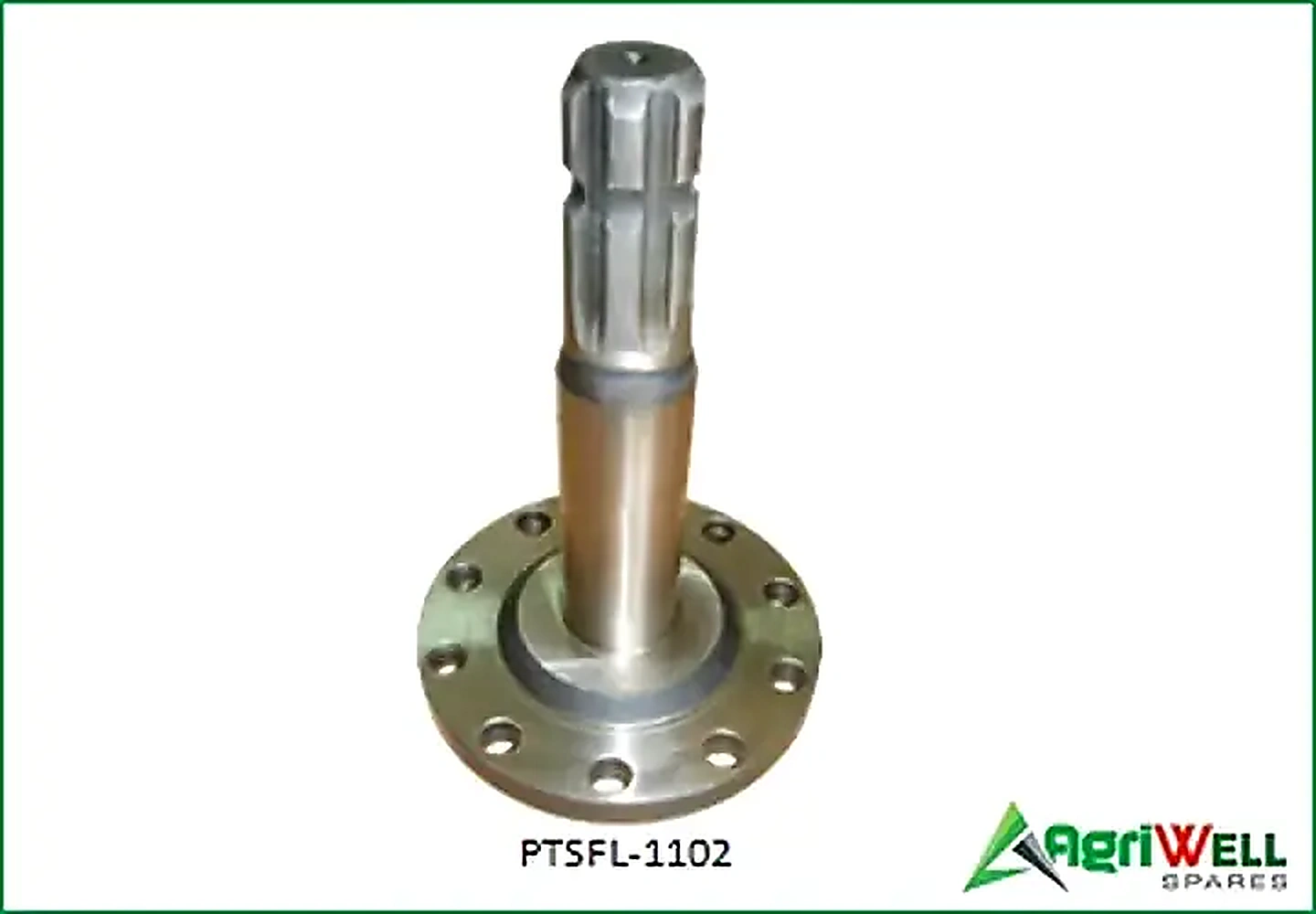

PTSFL-1102 |
1-3/4"x 6 |
180 |
270 |
|

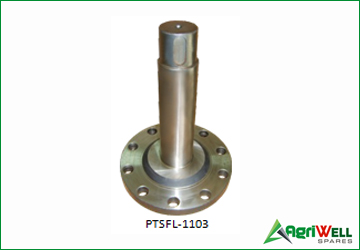

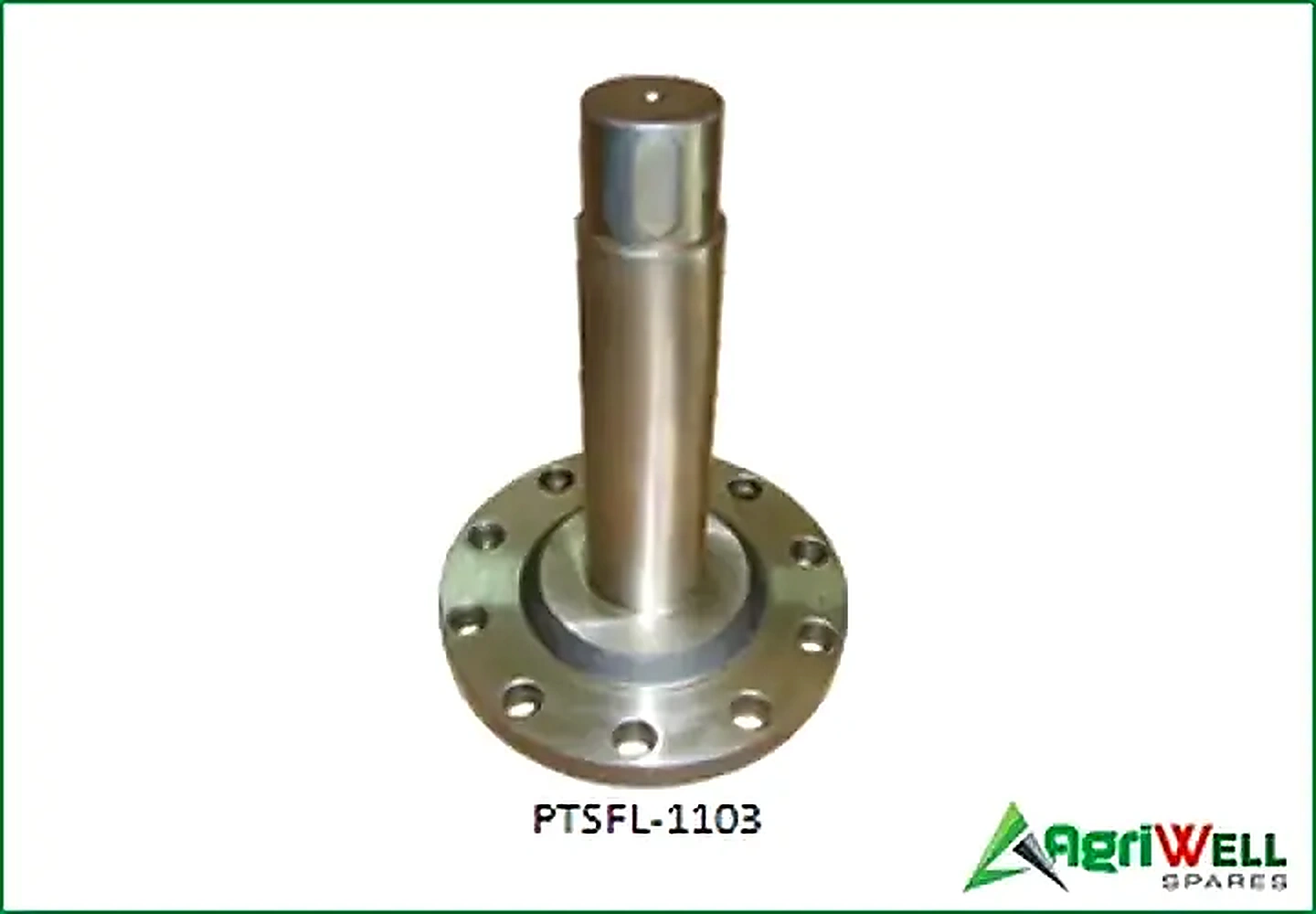

PTSFL-1103 |
with Key Way |
180 |
297 |
|

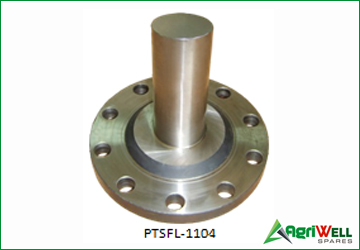

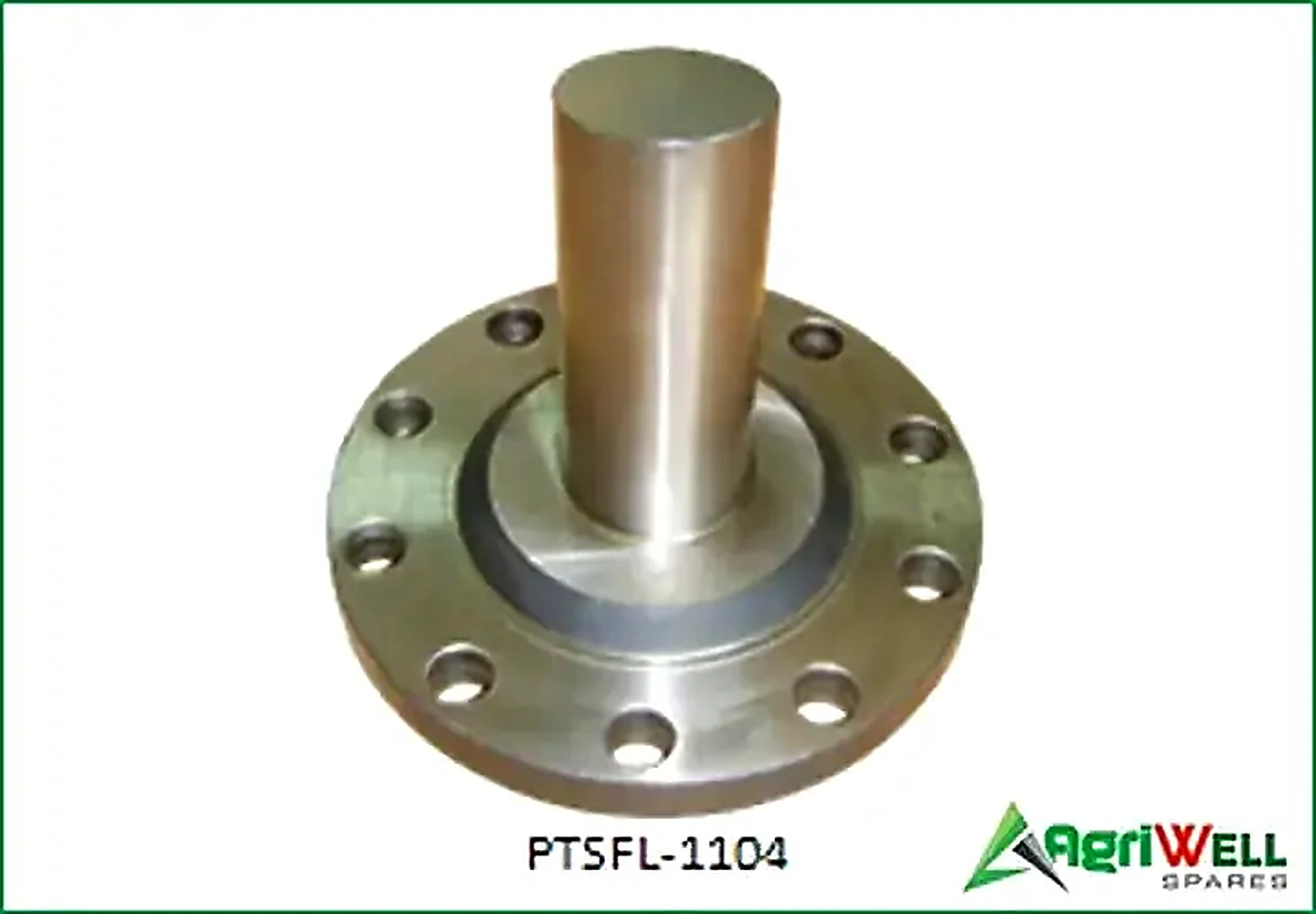

PTSFL-1104 |
--------- |
180 |
120 |
|
