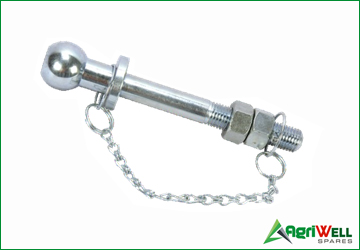

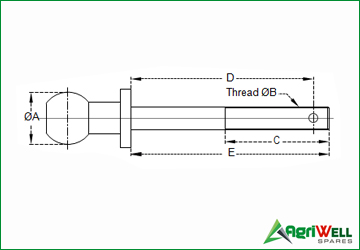

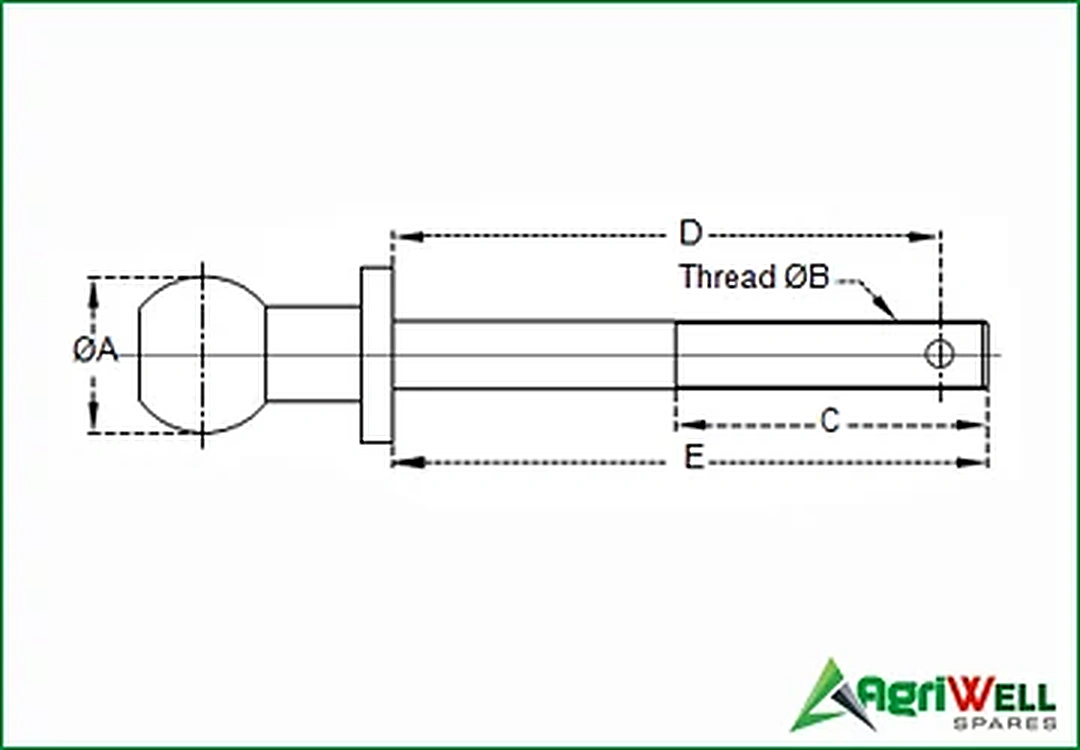

HITCH-PIN BALLS
Part Number |
Dia. ØA (mm) |
Thread Dia. ØB (inches) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Ref. Number |
HBL-78162 |
50 |
7/8" |
100 |
162 |
190 |
S-3210 |
HBP-1162 |
50 |
1" |
100 |
162 |
190 |
S-3211 |

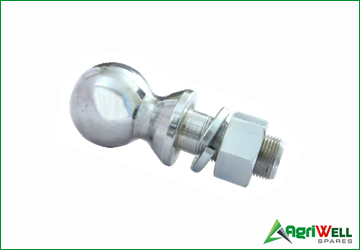

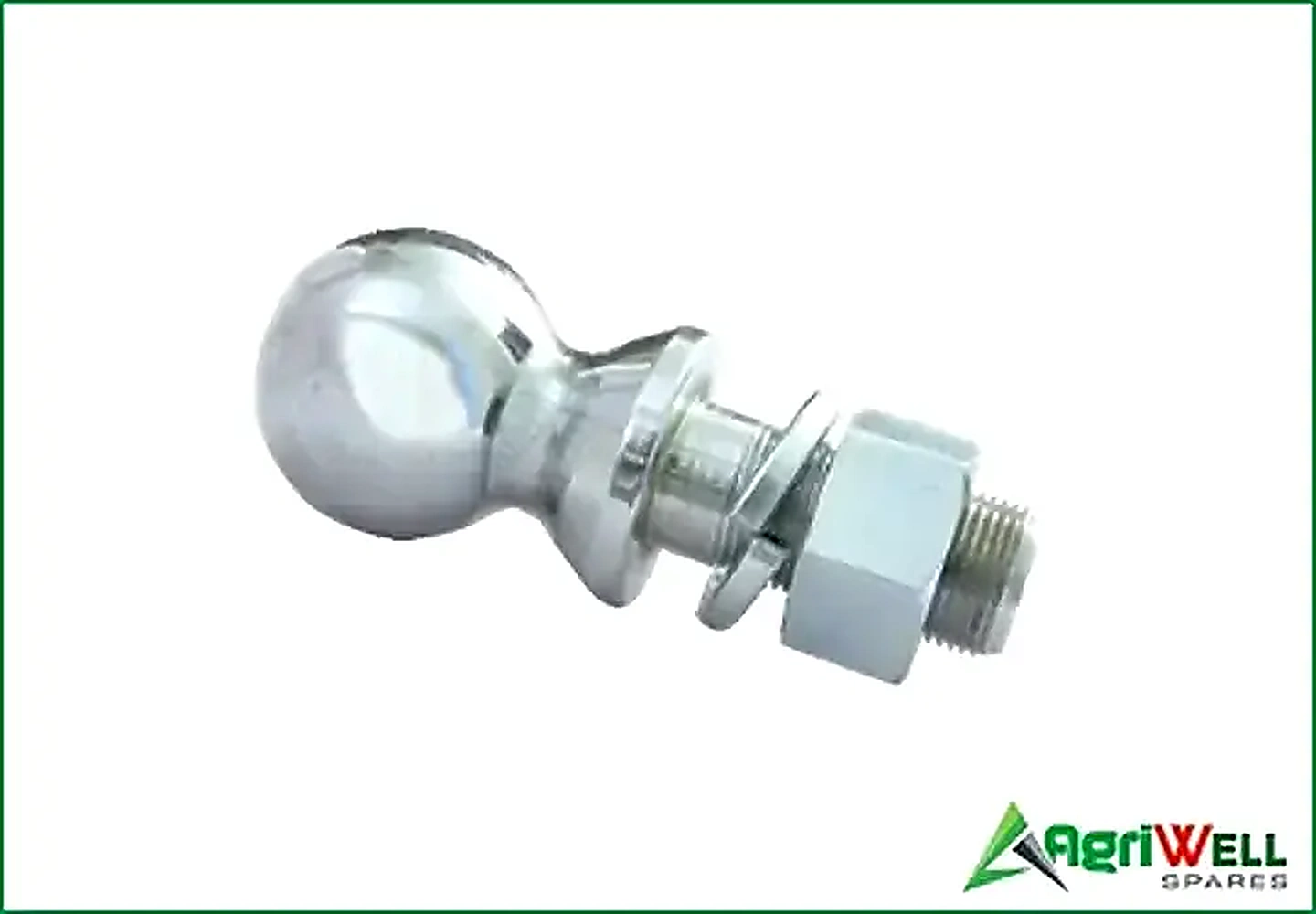

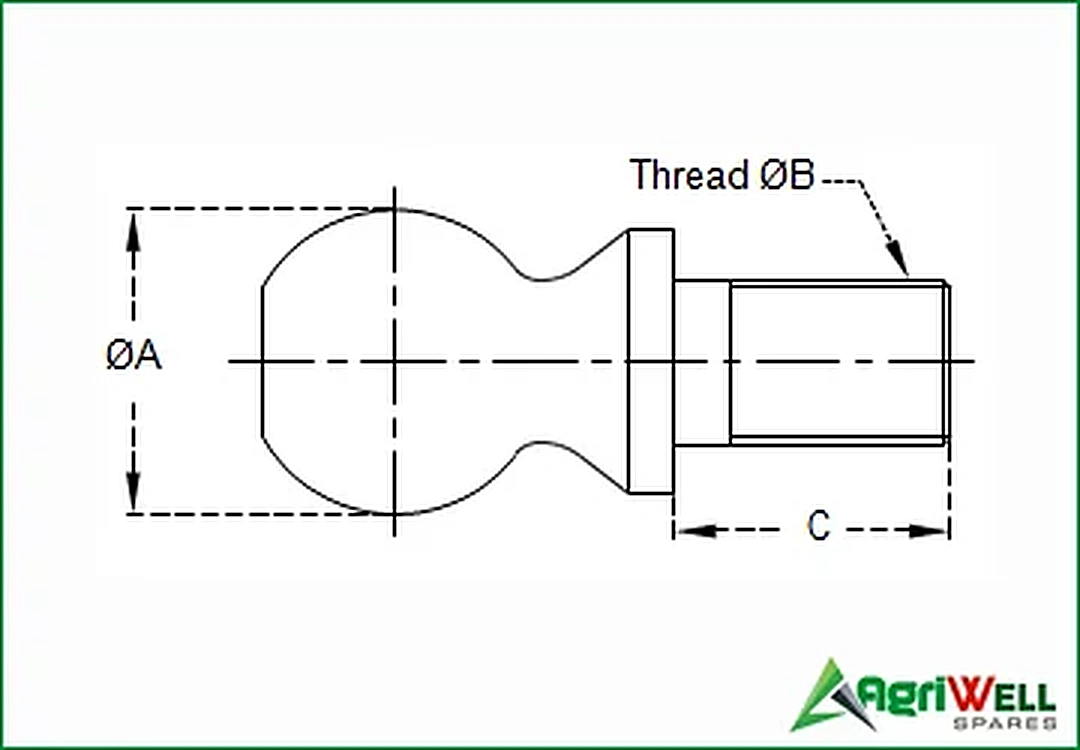

HITCH BALLS/TOW BALLS
Part Number |
Dia. ØA (mm) |
Thread Dia. ØB (inches) |
Dim. C (mm) |
Max. Load (Kg.) |
Ref. Number |
HB-344754 |
47.8 |
3/4" 16UNF |
54 |
900 |
5101 |
HB-345054 |
50.8 |
3/4" 16UNF |
54 |
1600 |
5201 |
HB-15054 |
50.8 |
1" 12UNF |
54 |
2300 |
5301 |
HB-1145854 |
58.68 |
1-1/4" 12UNF |
54 |
3400 |
5501 |
HITCH BALLS/TOW BALLS
Part Number |
Dia. ØA (mm) |
Thread Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Max. Load (Kg.) |
Ref. Number |
HB-22155053 |
50 |
M 22X1.5 |
53 |
125 |
3500 |
11776 |
