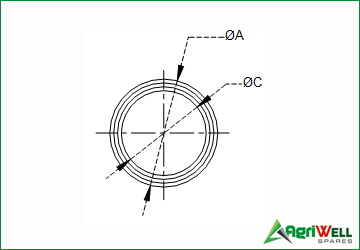

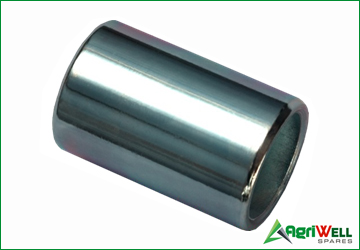

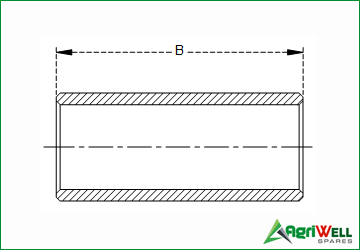

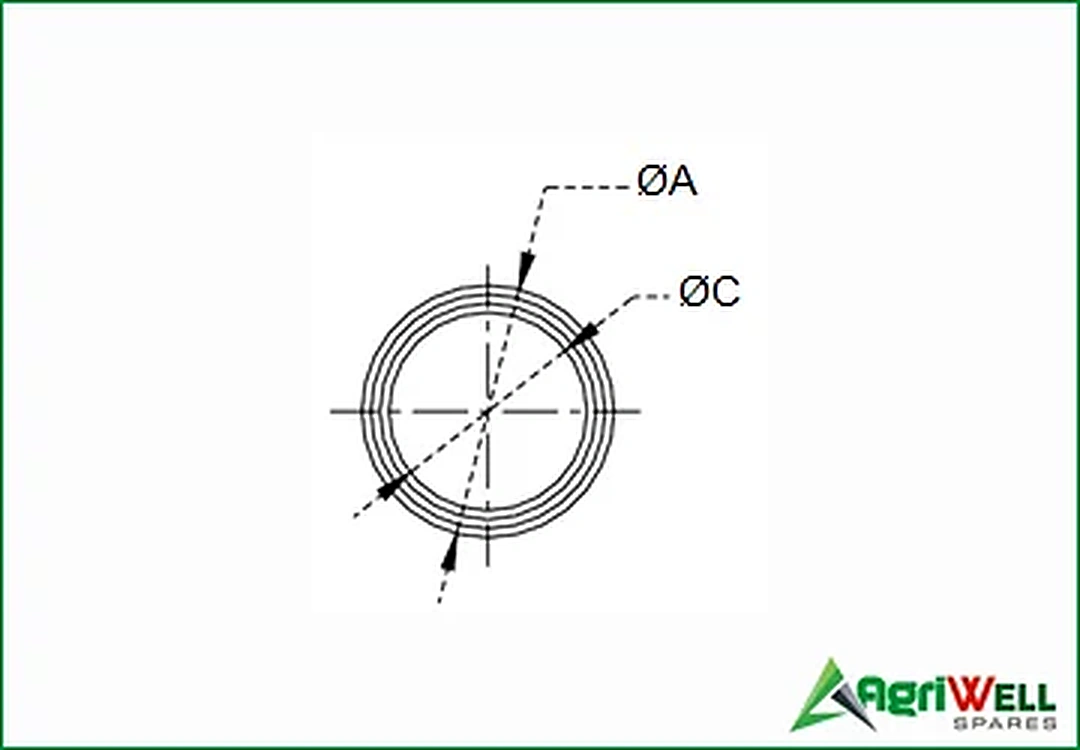

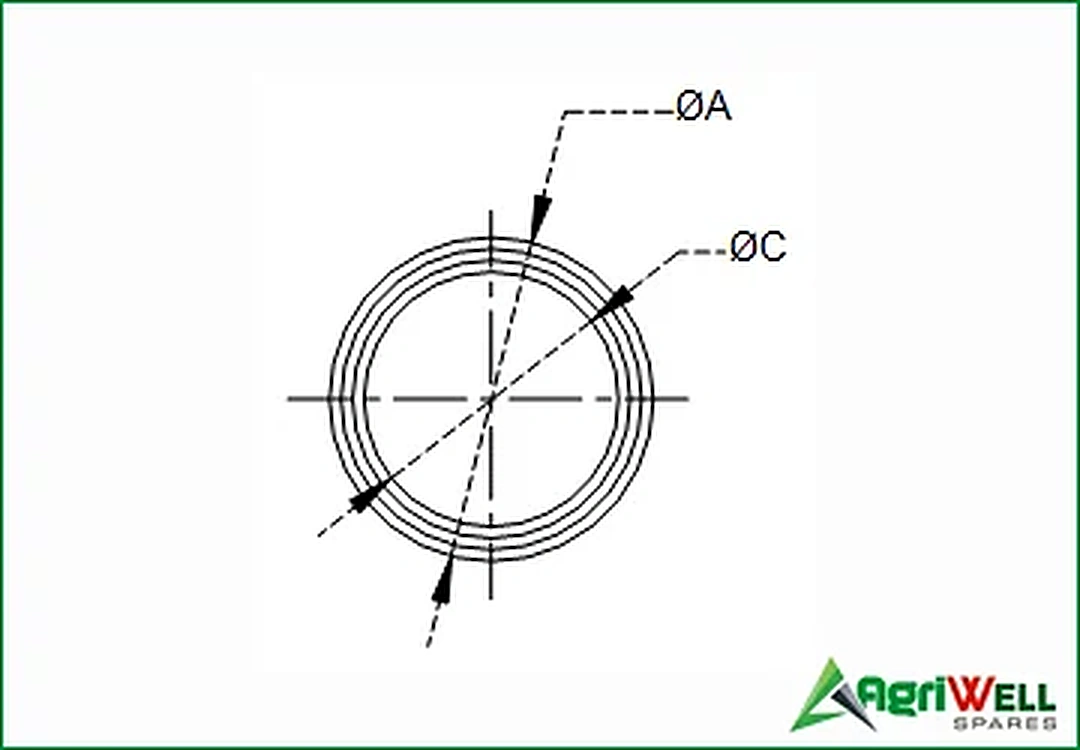

BUSHES
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dia. ØC (mm) |
Ref. Number |
BSH-194116 |
19 |
41 |
16 |
|
BSH-223516 |
22 |
35 |
16 |
|
BSH-254119 |
25.4 |
41 |
19 |
|
BSH-255019 |
25.4 |
50.8 |
19 |
00042 |
BSH-284422 |
28.4 |
44 |
22.4 |
00038 |
BSH-286322 |
28.4 |
63 |
22.2 |
|
BSH-283522 |
28.6 |
35 |
22.2 |
|
BSH-284422 |
28.6 |
44 |
22.2 |
|
BSH-285022 |
28.6 |
50.8 |
22.2 |
|
BSH-325025 |
32 |
50.8 |
25.4 |
03887 |
BSH-364428 |
36.5 |
44.5 |
28.6 |
|
BSH-365128 |
36.5 |
51 |
28.6 |
|
BSH-366428 |
36.5 |
64 |
28.6 |
|
BSH-374428 |
37.8 |
44 |
28.4 |
03989 |

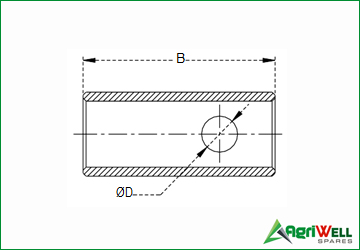

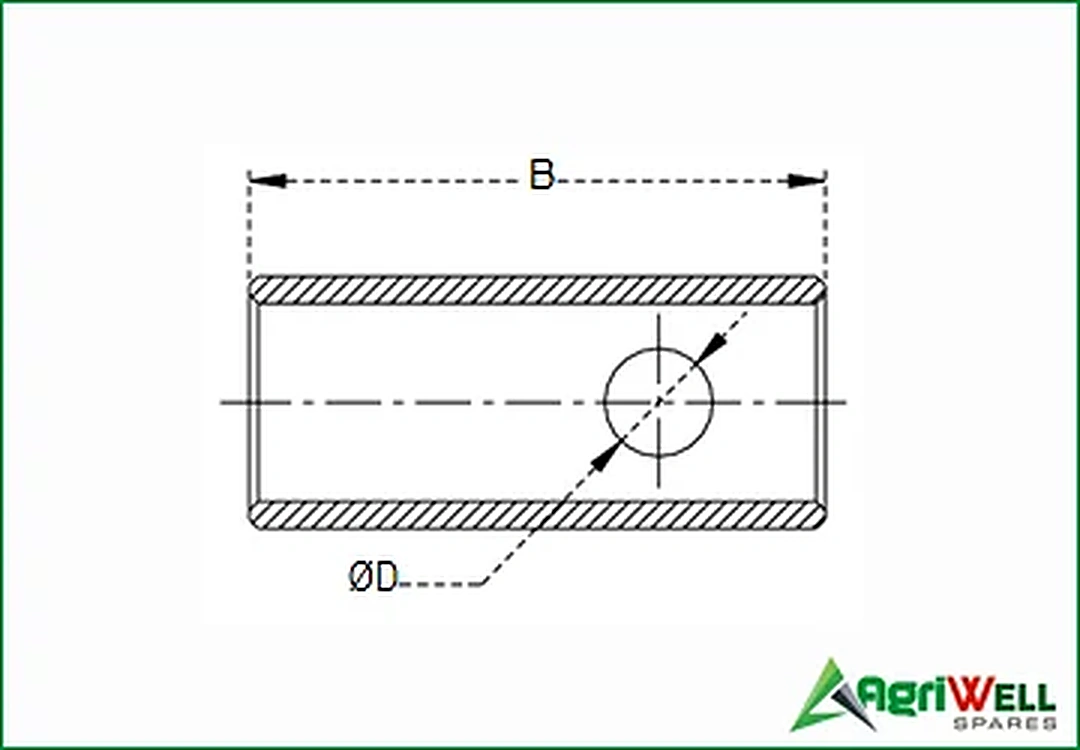

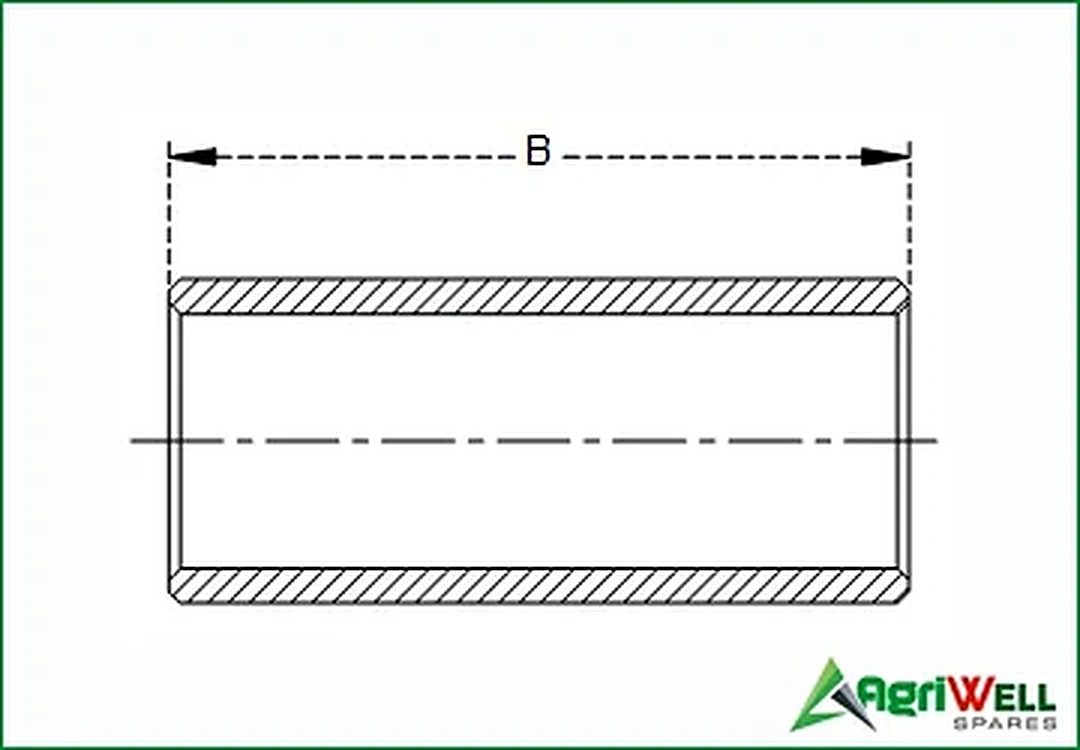

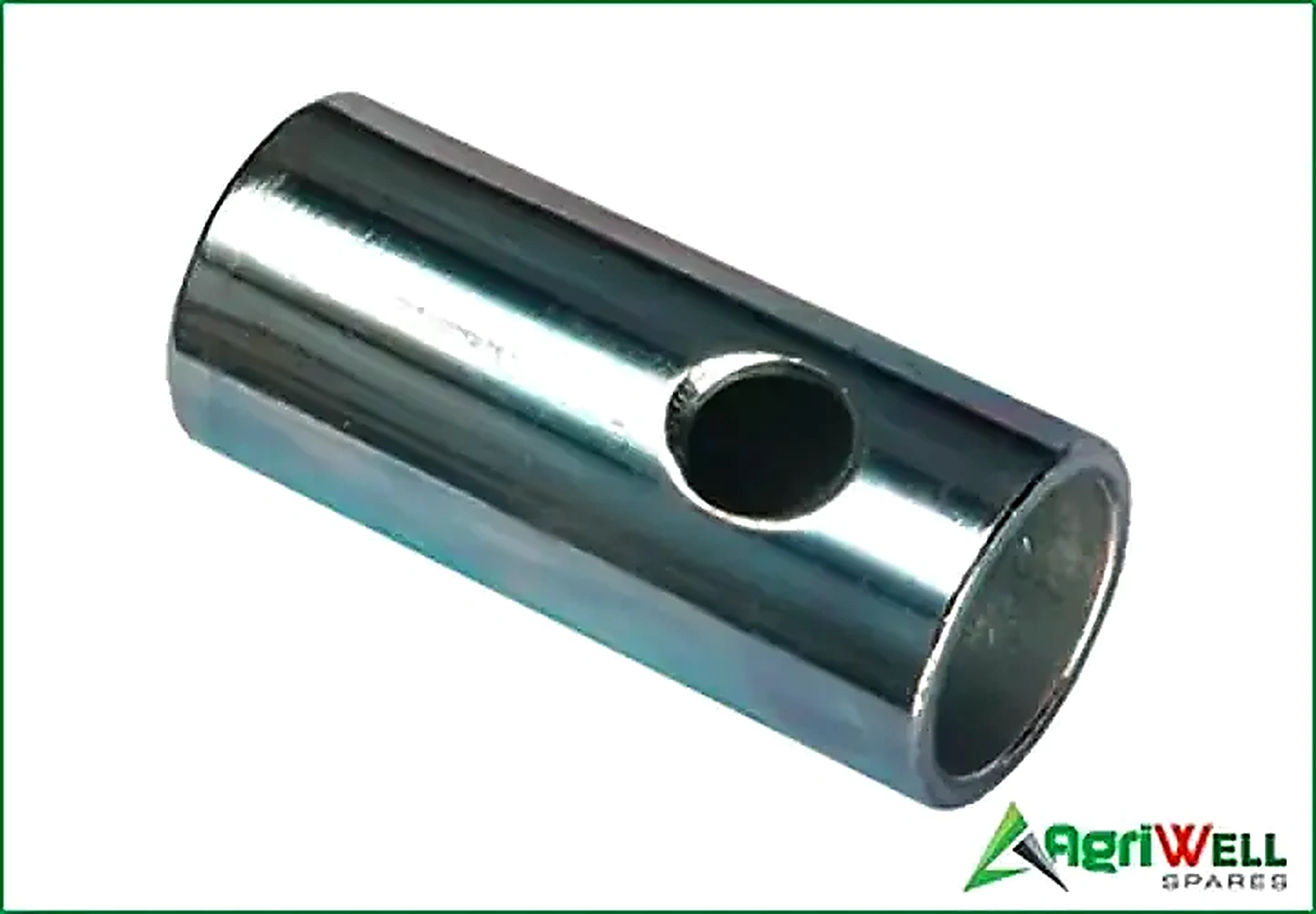

BUSHES
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dia. ØC(mm) |
Dia. ØD (mm) |
Ref. Number |
BSH-286422 |
28 |
64 |
22 |
12 |
03886 |
BSH-366328 |
36.5 |
63.5 |
28.6 |
17 |
|

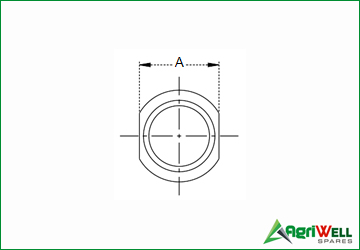

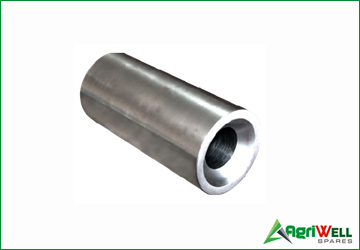

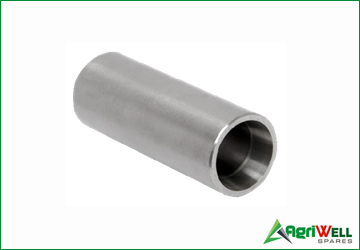

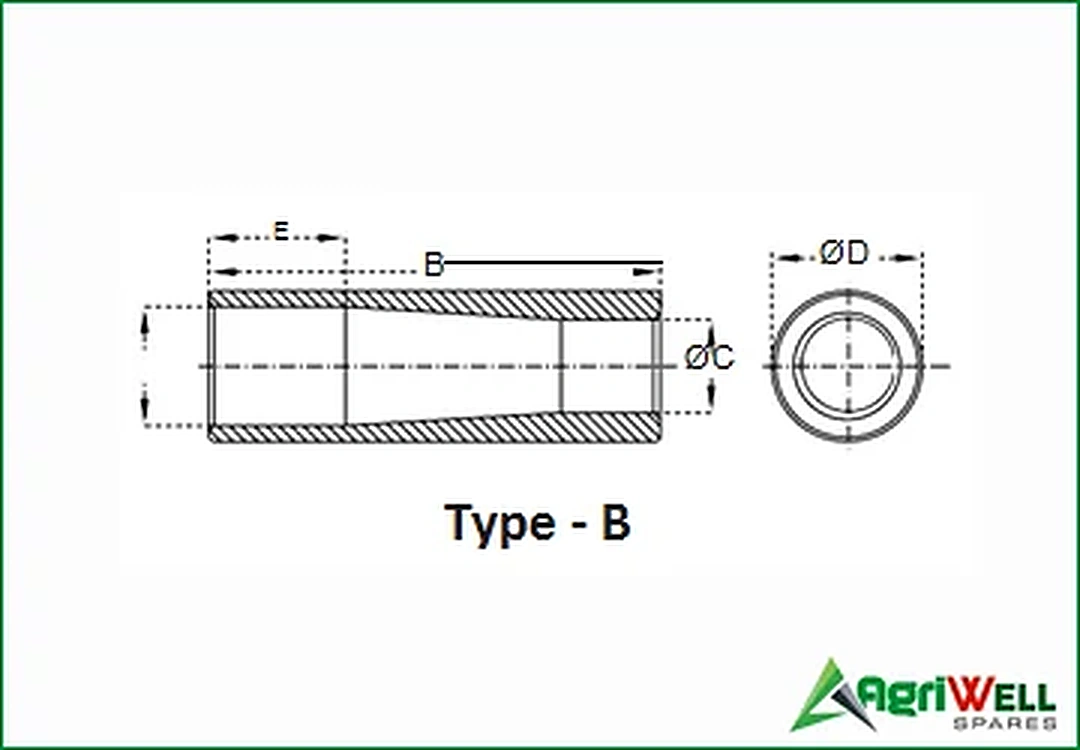

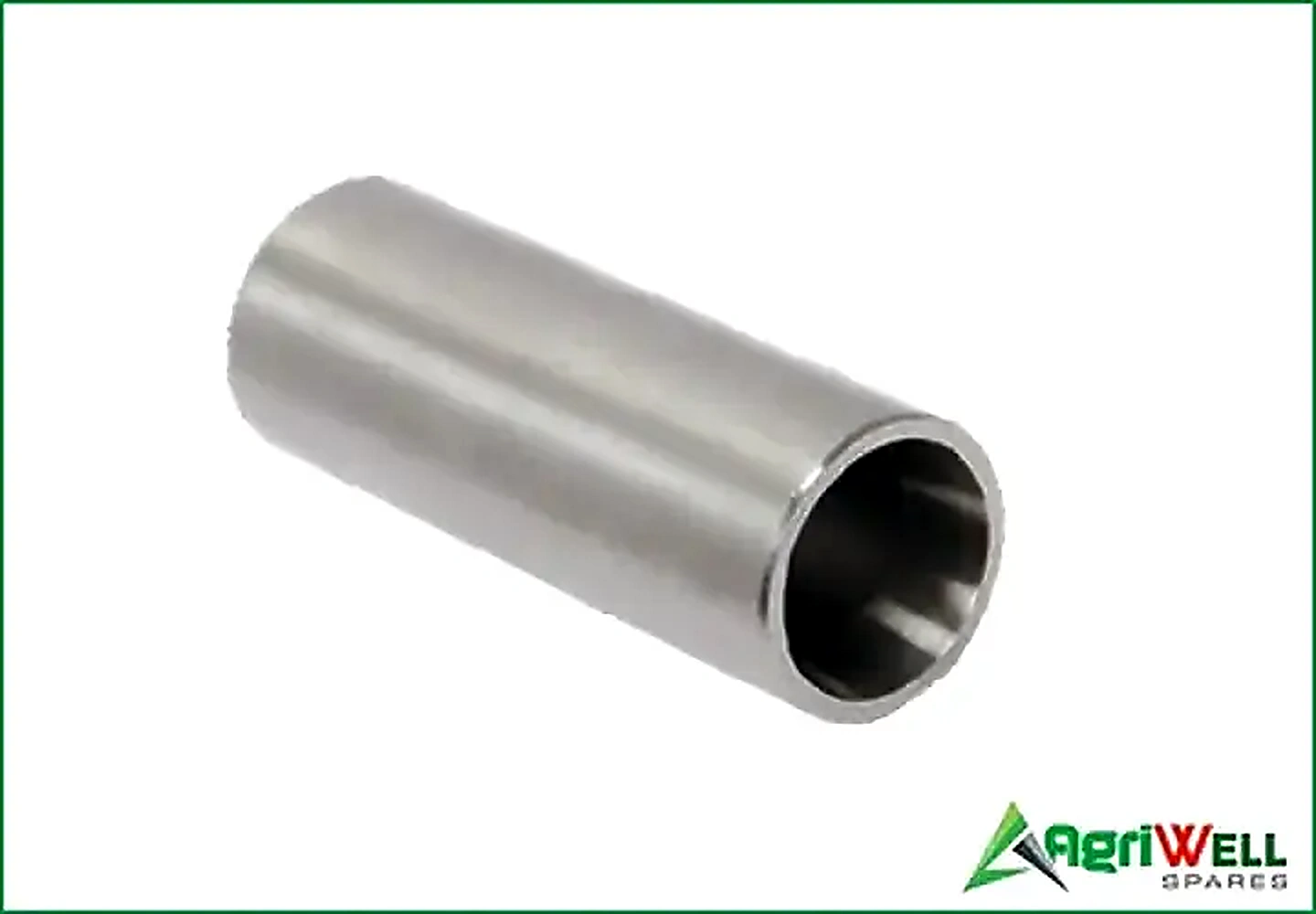

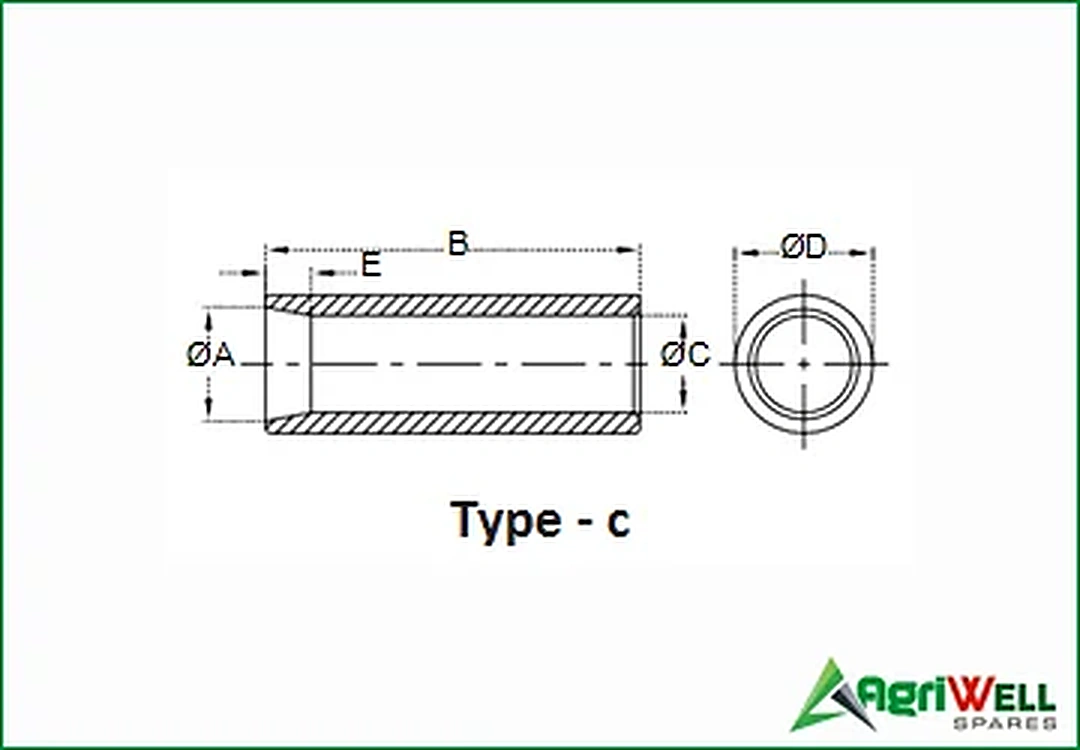

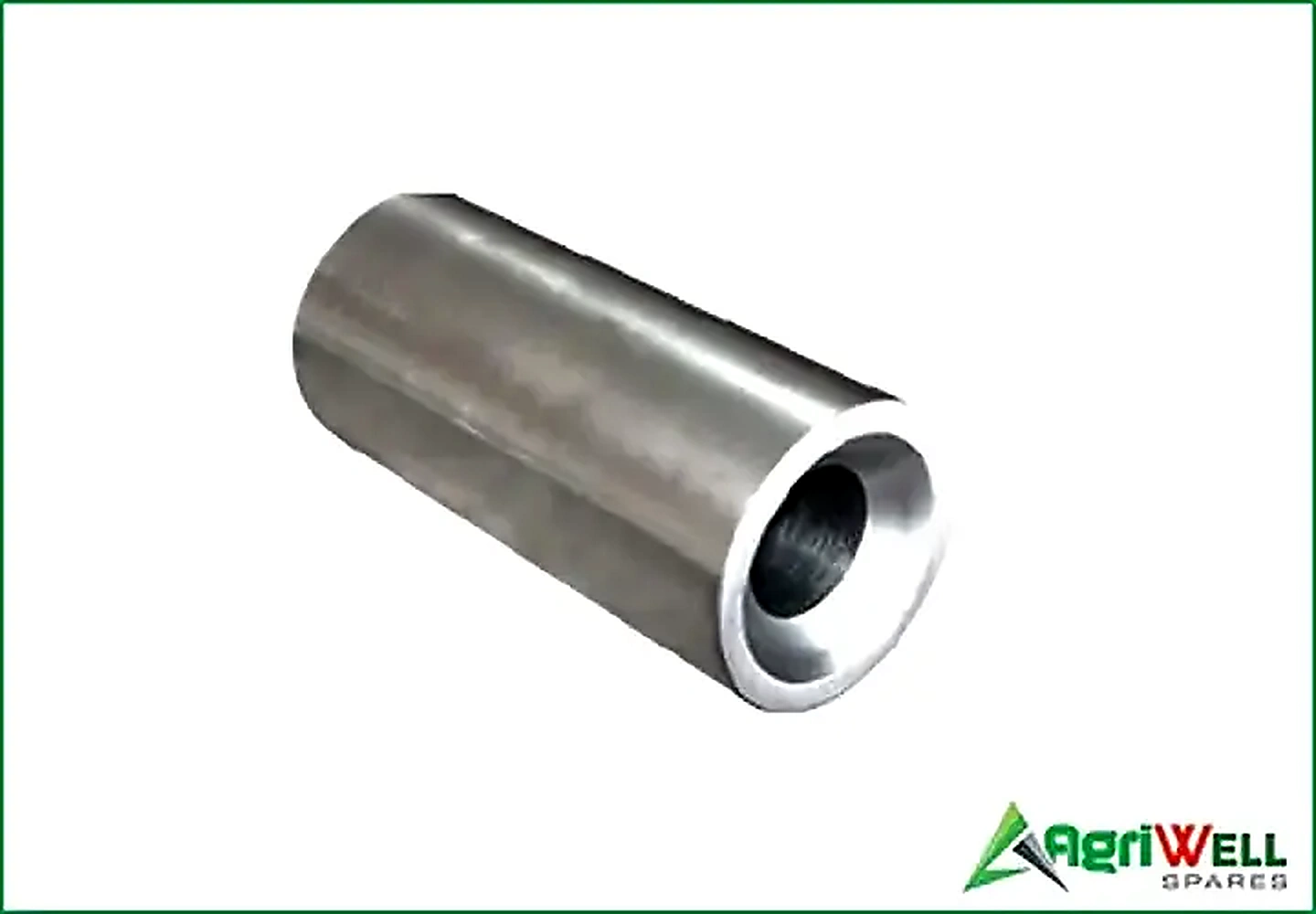

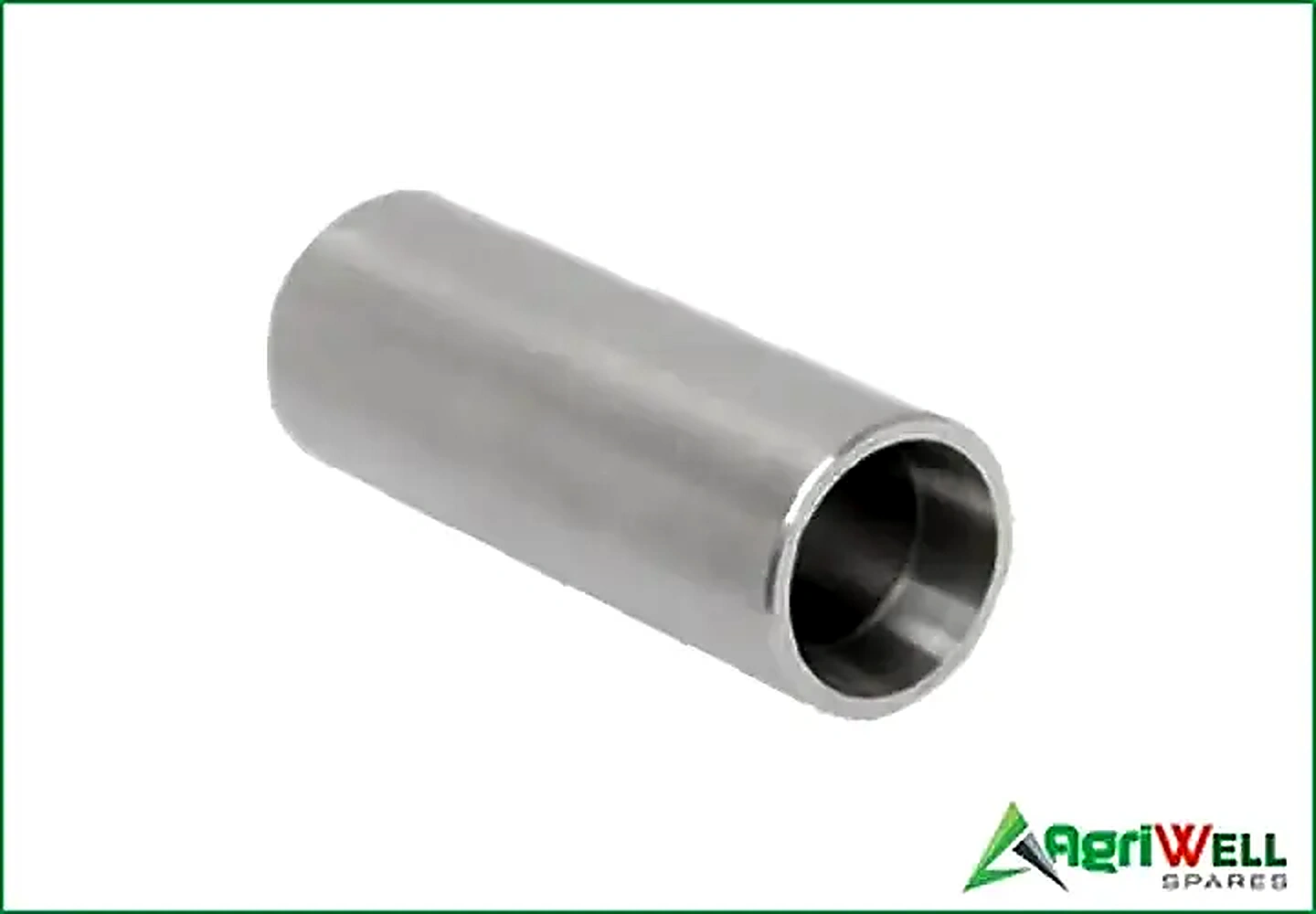

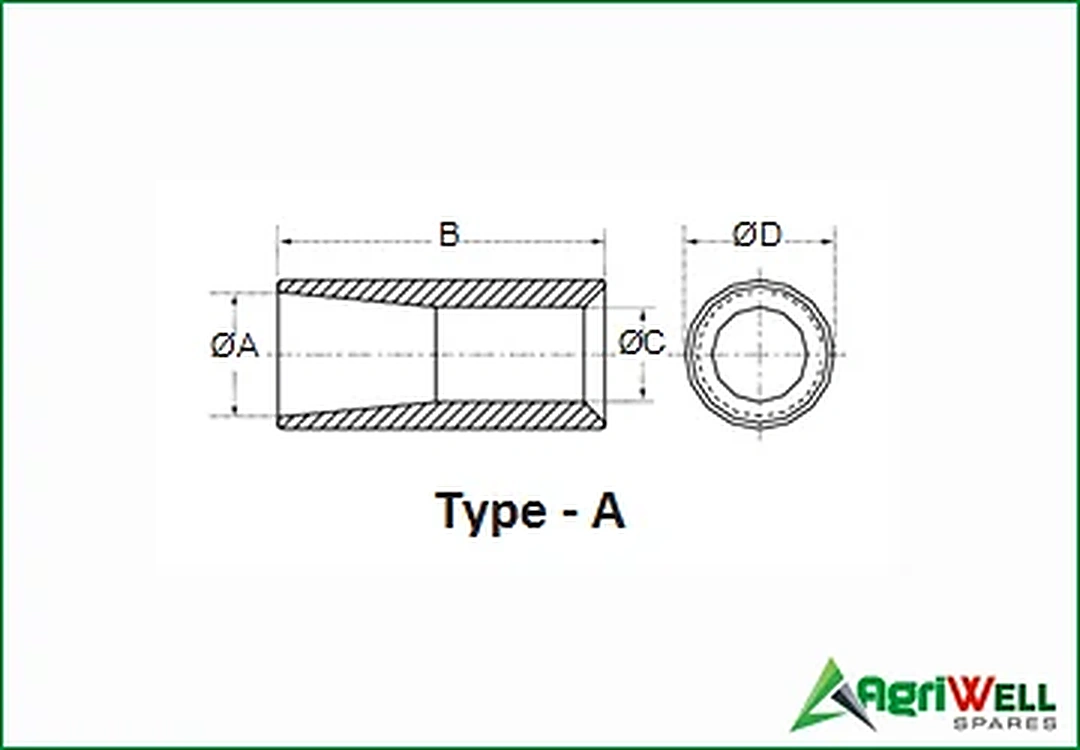

TINES BUSHING
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dia. ØC (mm) |
Dia. ØD (mm) |
Dim. E (mm) |
Type |
Ref. Number |
TNBU-5024110 |
34.50 |
110 |
24.50 |
50 |
- |
A |
- |
TNBU-5032110 |
42.00 |
110 |
32.00 |
50 |
- |
A |
- |
TNBU-5732120 |
44.00 |
120 |
32.00 |
57 |
- |
A |
- |
TNBU-5534165 |
43.5 |
165 |
34 |
55 |
50 |
B |
03429 |
TNBU-4227115 |
35 |
115 |
27 |
42.4 |
20 |
C |
05719 |

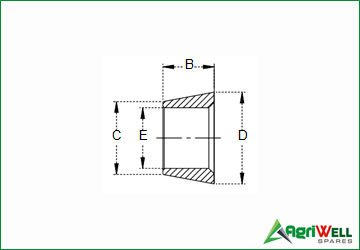

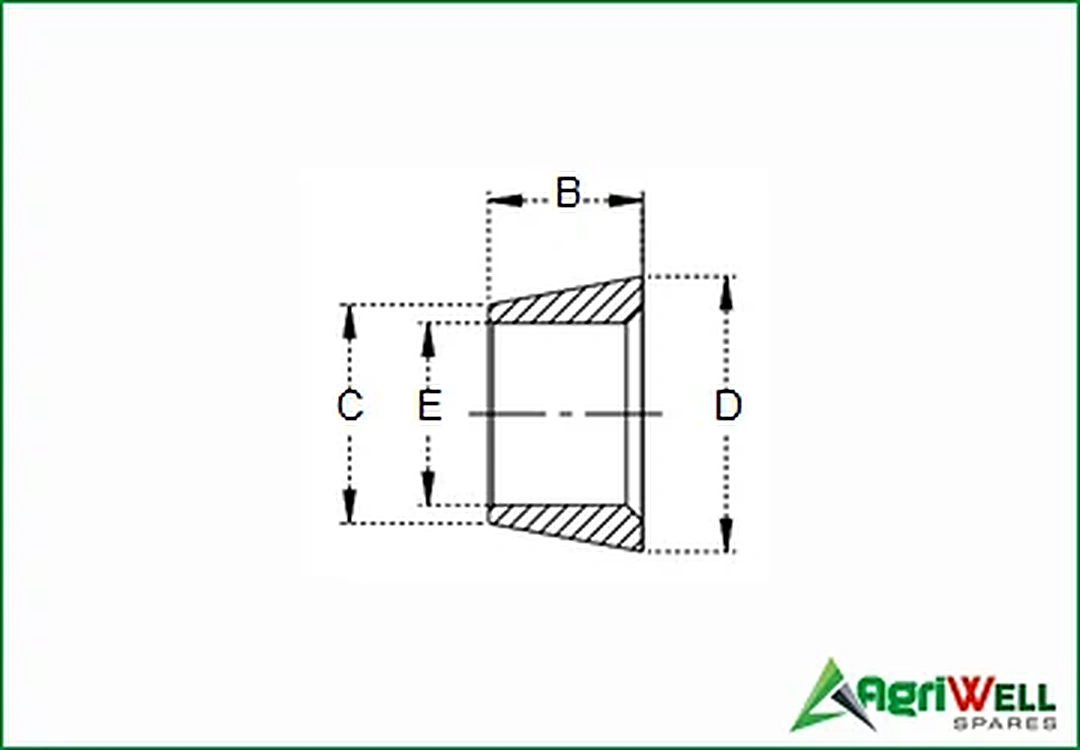

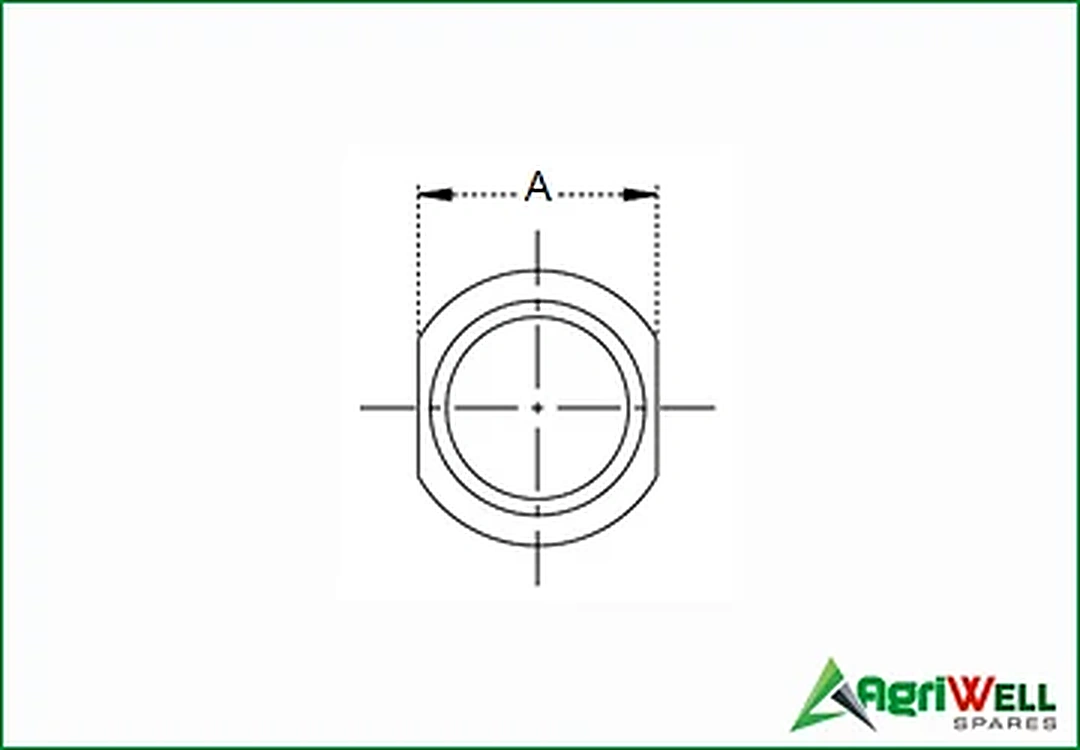

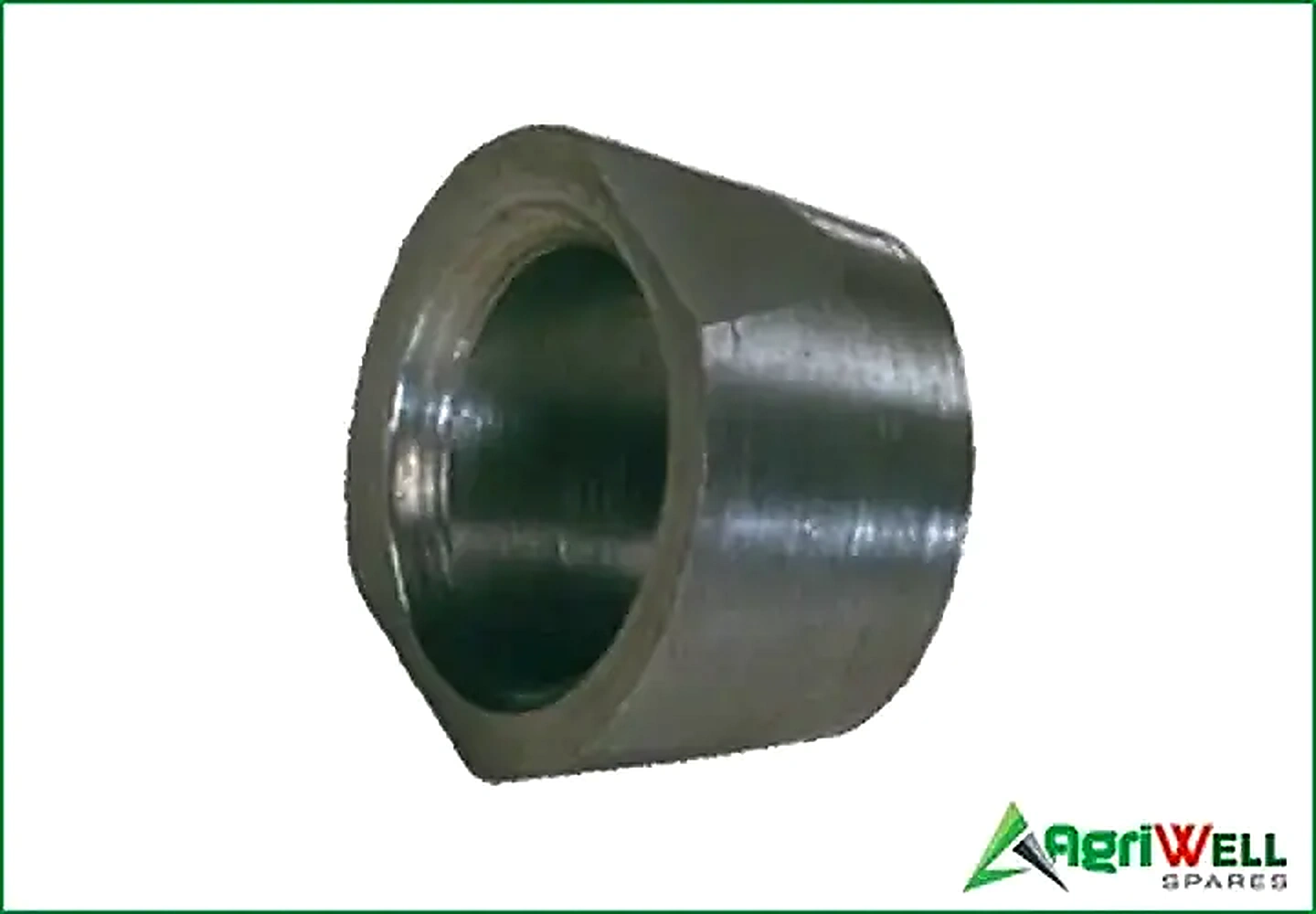

TINE BUSHING SHORT TYPE
Part Number |
Dim. A (mm) |
Dim. B (mm) |
Dia. ØC (mm) |
Dia. ØD (mm) |
Dia. ØE (mm) |
Ref. Number |
TNBU-291922 |
29.5 |
19 |
27 |
34 |
22.5 |
03355 |

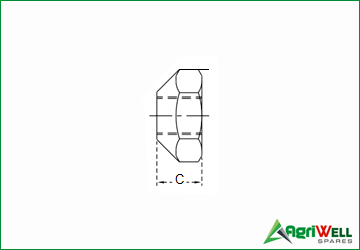

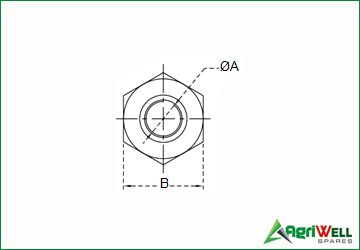

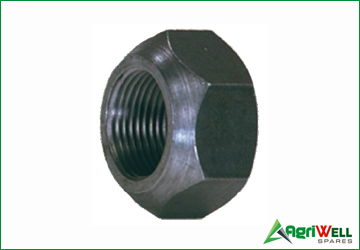

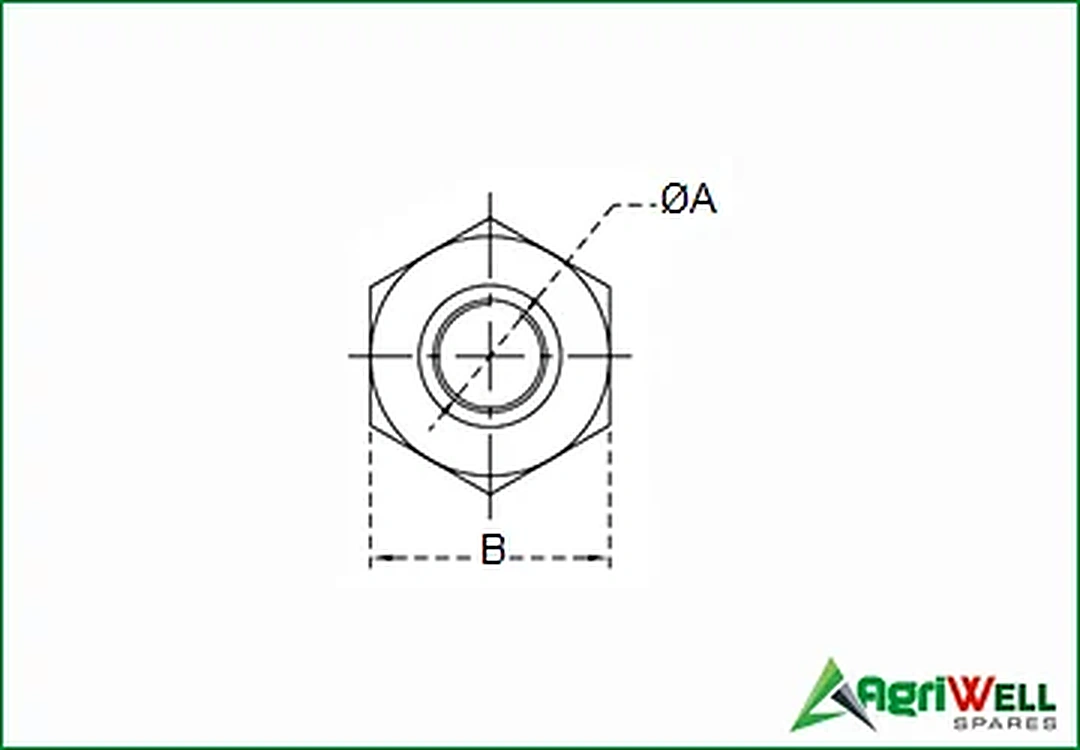

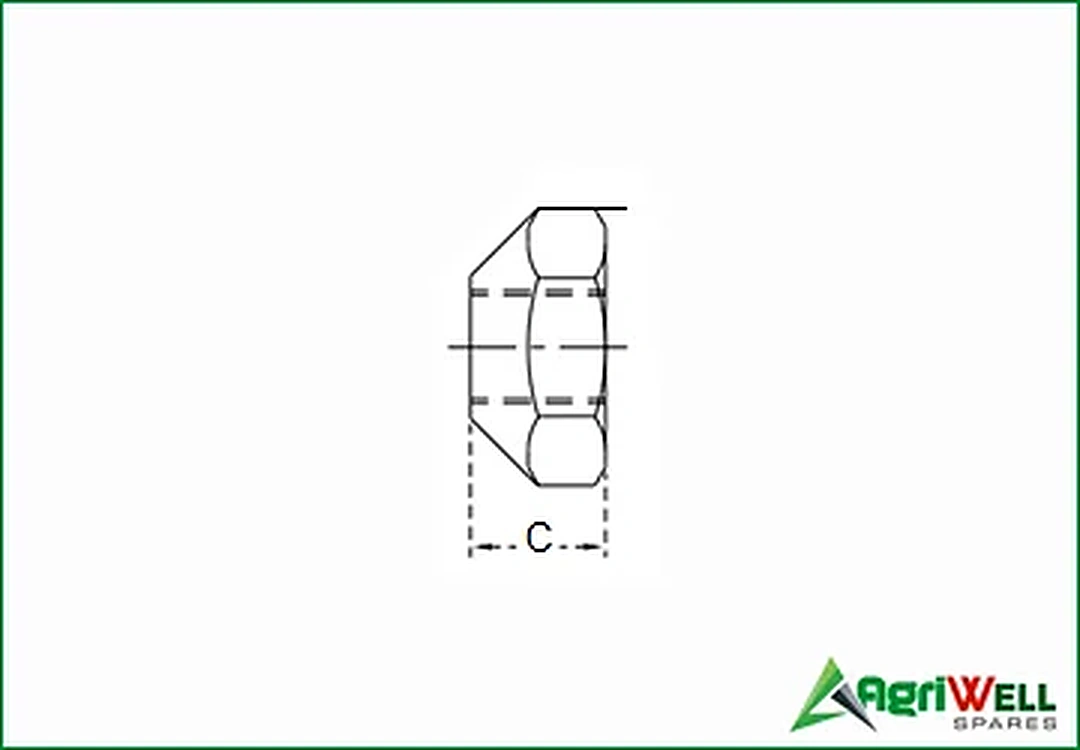

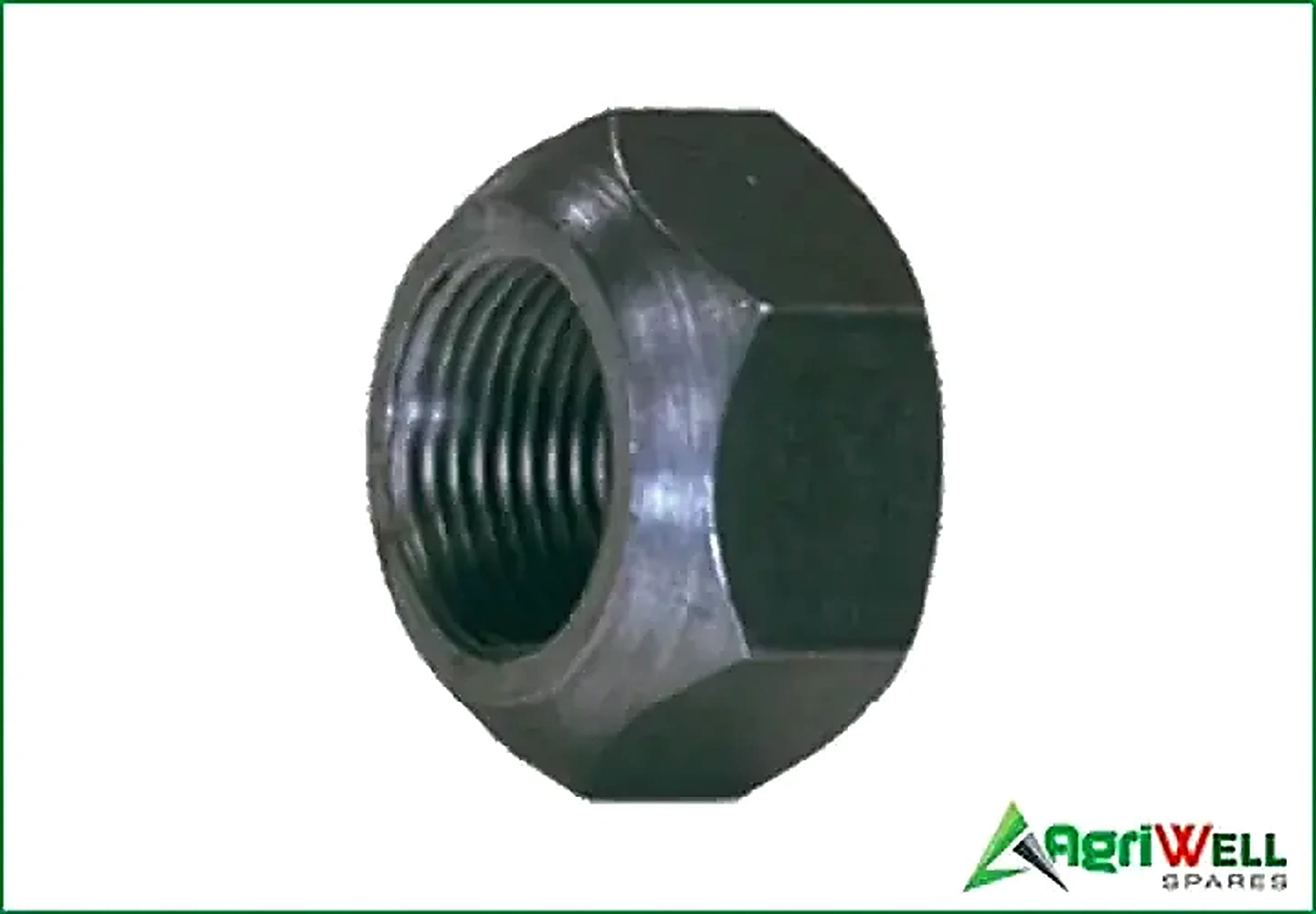

TINE NUTS
Part Number |
Thread ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Ref. Number |
TNN-20153018 |
20X1.5 |
30 |
18 |
07989 |
TNN-22153218 |
22X1.5 |
32 |
18 |
07988 |
TNN-28154225 |
28X1.5 |
42 |
25 |
07986 |
