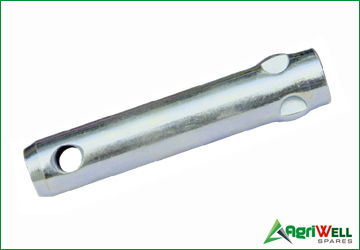

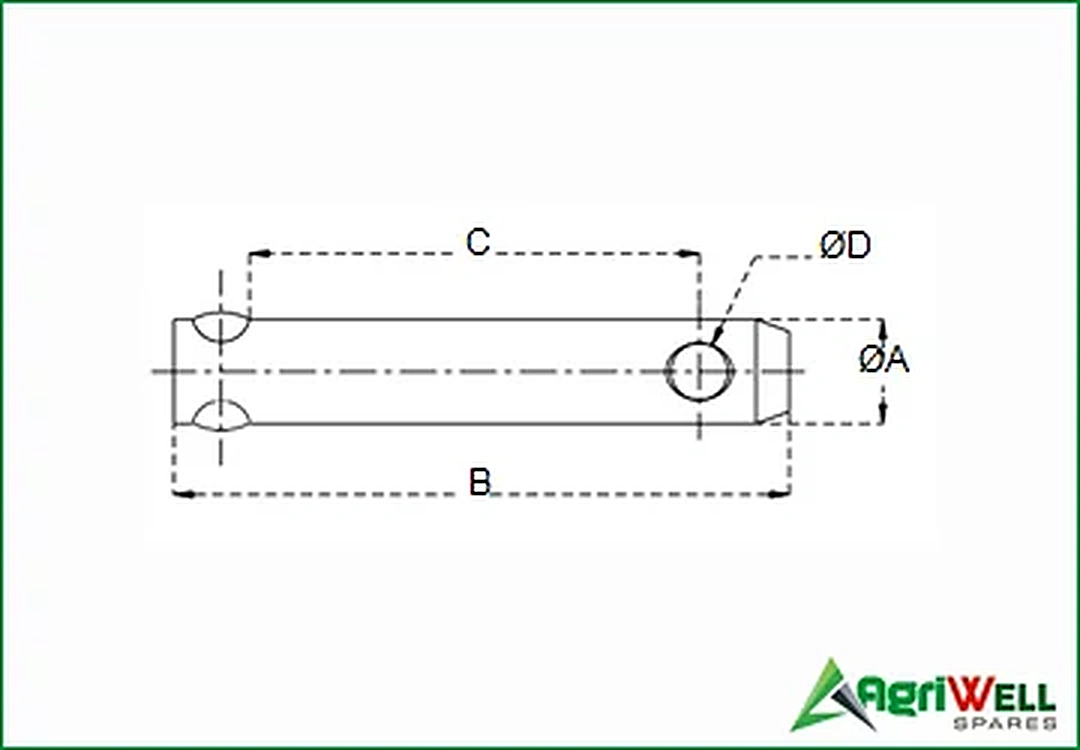

KNOTCHING PINS
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Ref. Number |
TLP-2293 |
22 |
130 |
93 |
12 |
10127 |
TLP-28100 |
28 |
143 |
100 |
12 |
10128 |

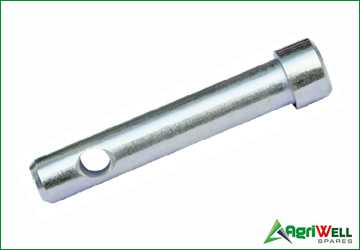

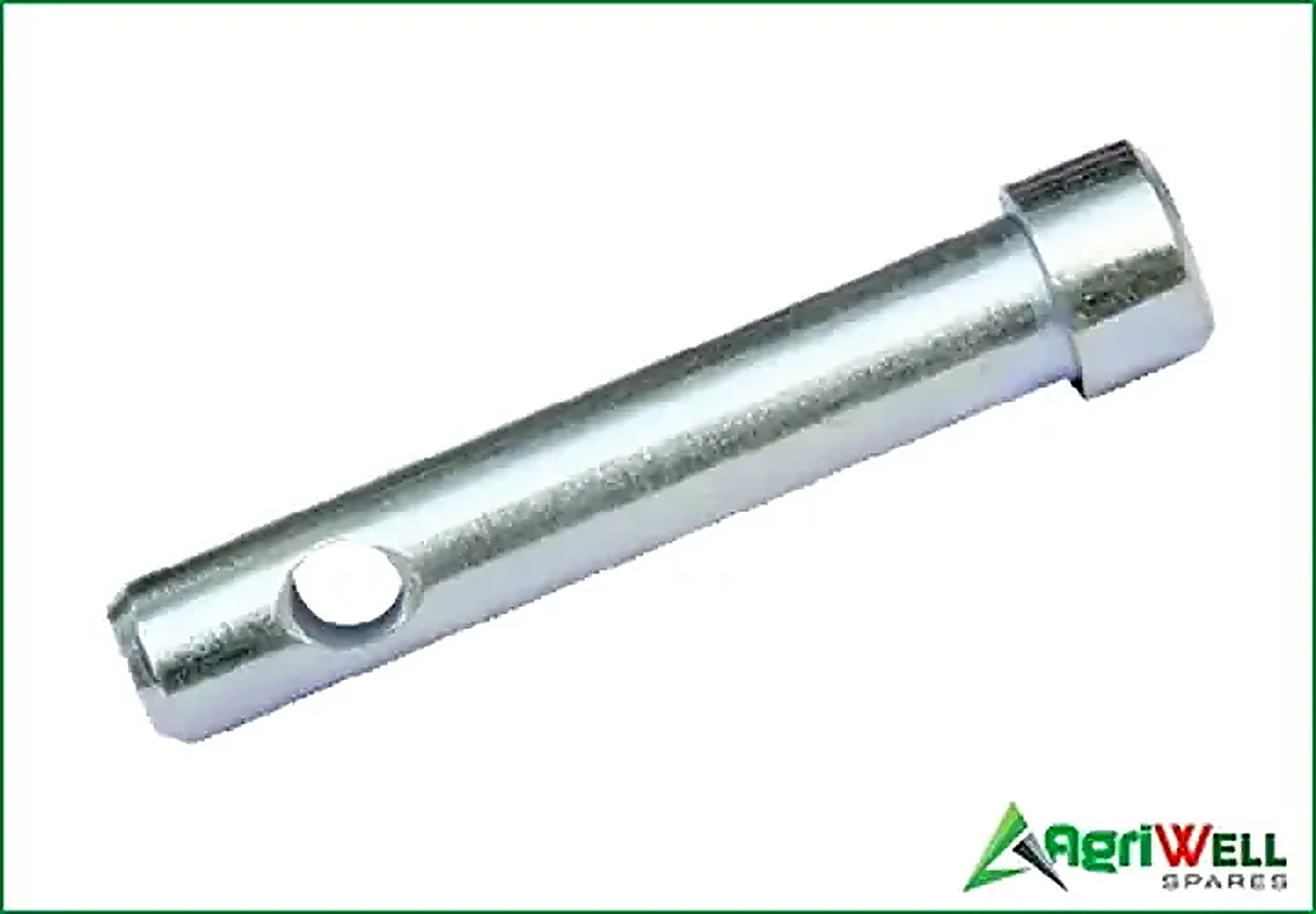

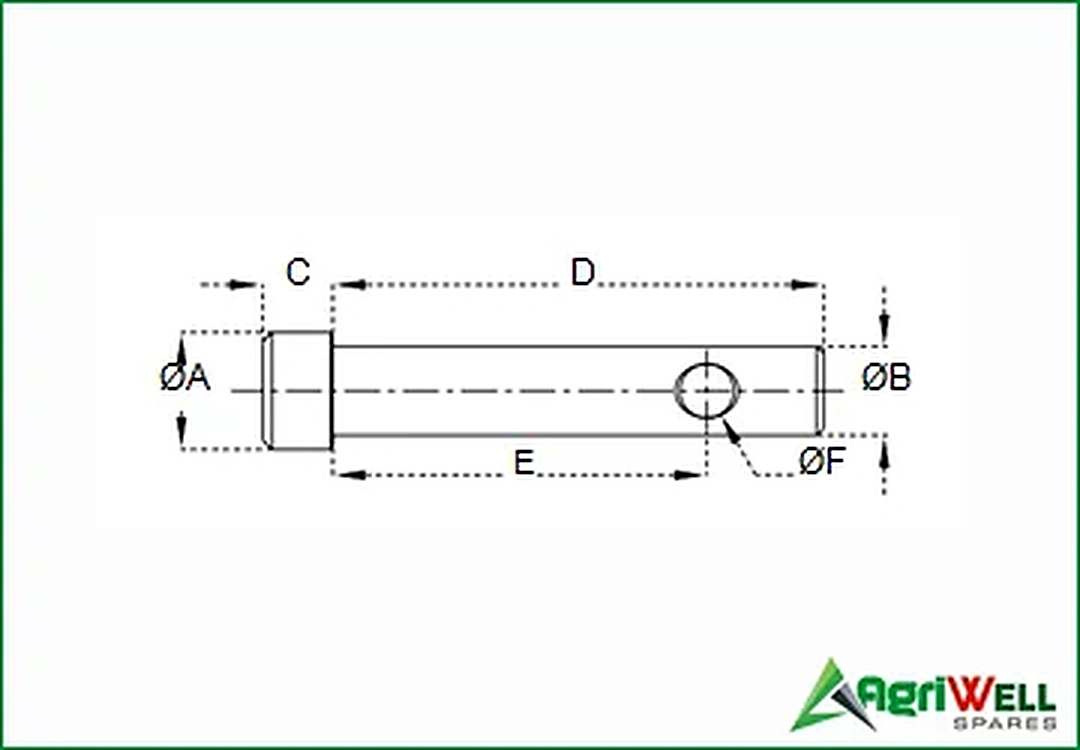

WELD ON LINK PINS
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Dia. ØF (mm) |
Ref. Number |
TLP-1980 |
25 |
19 |
15 |
105 |
80 |
11.5 |
04370 |
TLP-2260 |
28 |
22 |
15 |
80 |
60 |
11.5 |
01447 |
TLP-2585 |
32 |
25 |
15 |
110 |
85 |
11.5 |
04371 |
TLP-2860 |
34 |
28 |
15 |
80 |
60 |
11.5 |
01399 |
