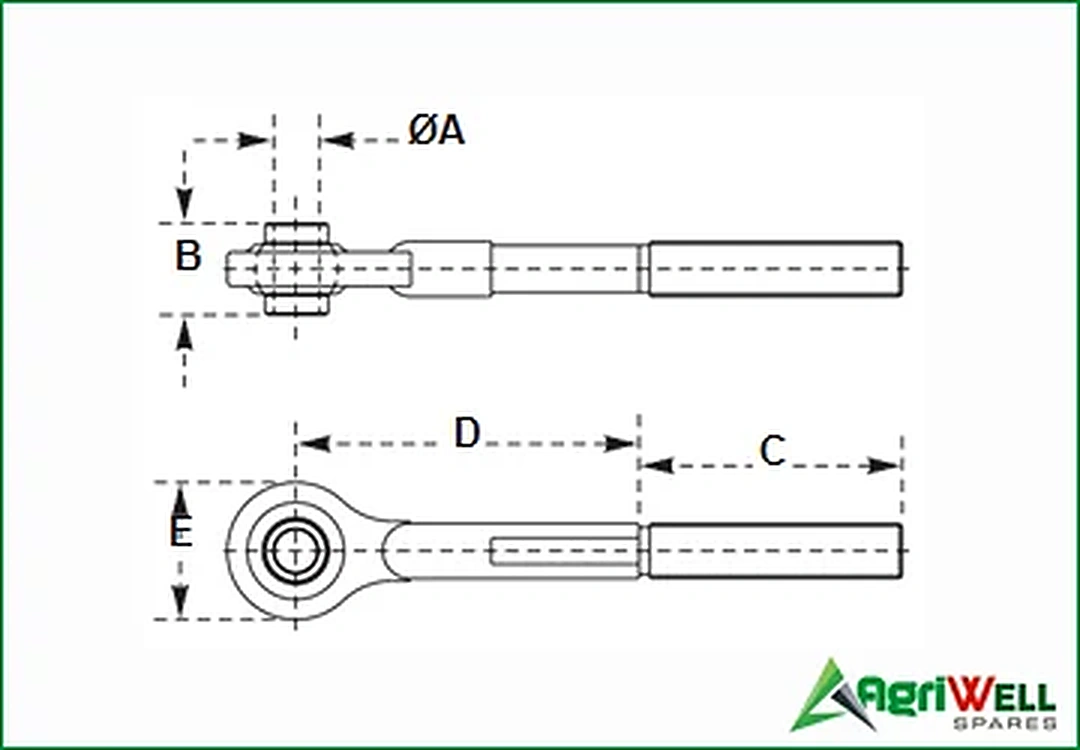

Part Number

Cat.

Ball ID ØA (mm)

Ball Length B (mm)

Thread (inches)

Dim. C (mm)

Dim. D (mm)

Dim. E (mm)

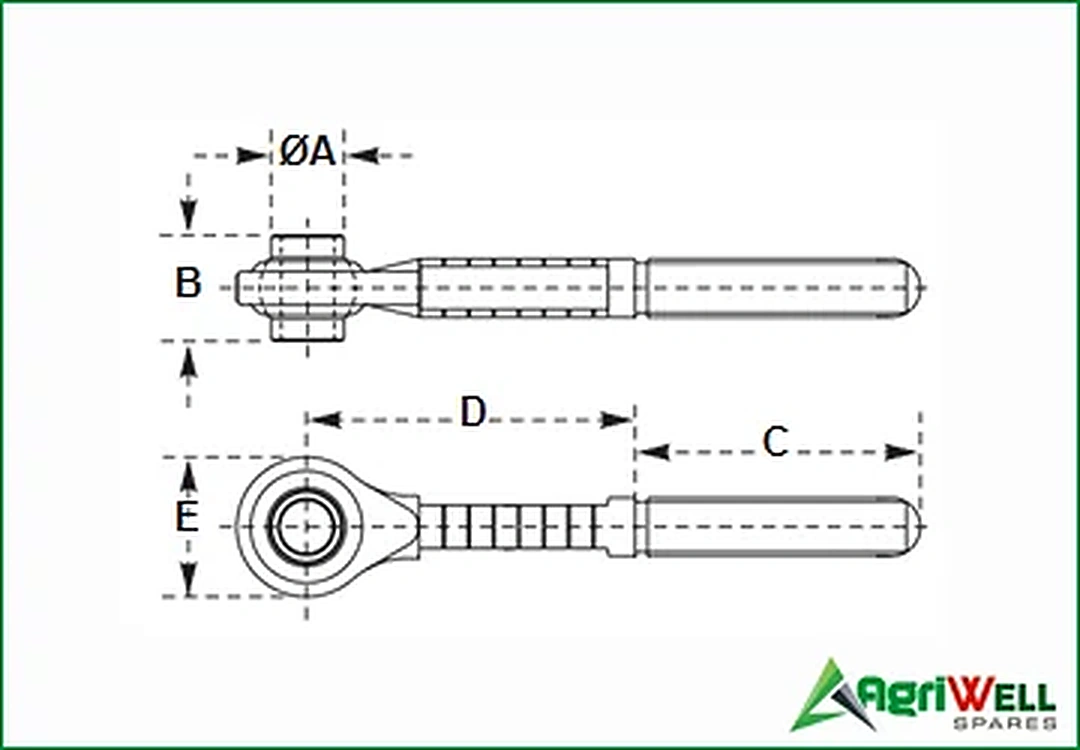

TLEBMF-R1161281

1

19

44

1-1/16" - R

128

167

66

TLEBMF-L1161281

1

19

44

1-1/16" - L

128

167

58

TLEBMF-R1161282

2

25.4

51

1-1/16" - R

128

167

66

TLEBMF-L1161282

2

25.4

51

1-1/16" - L

128

167

58

Part Number

Cat.

Ball ID ØA
(mm)

Ball Length B
(mm)

Thread

Dim. C
(mm)

Dim. D
(mm)

Dim. E
(mm)

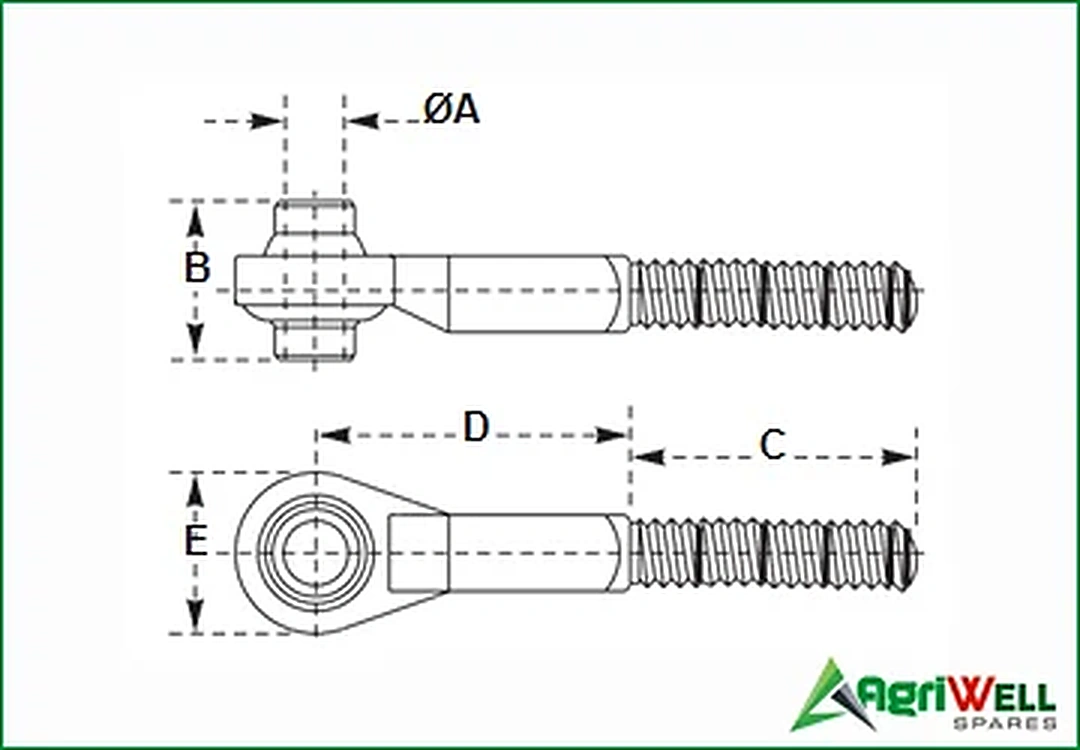

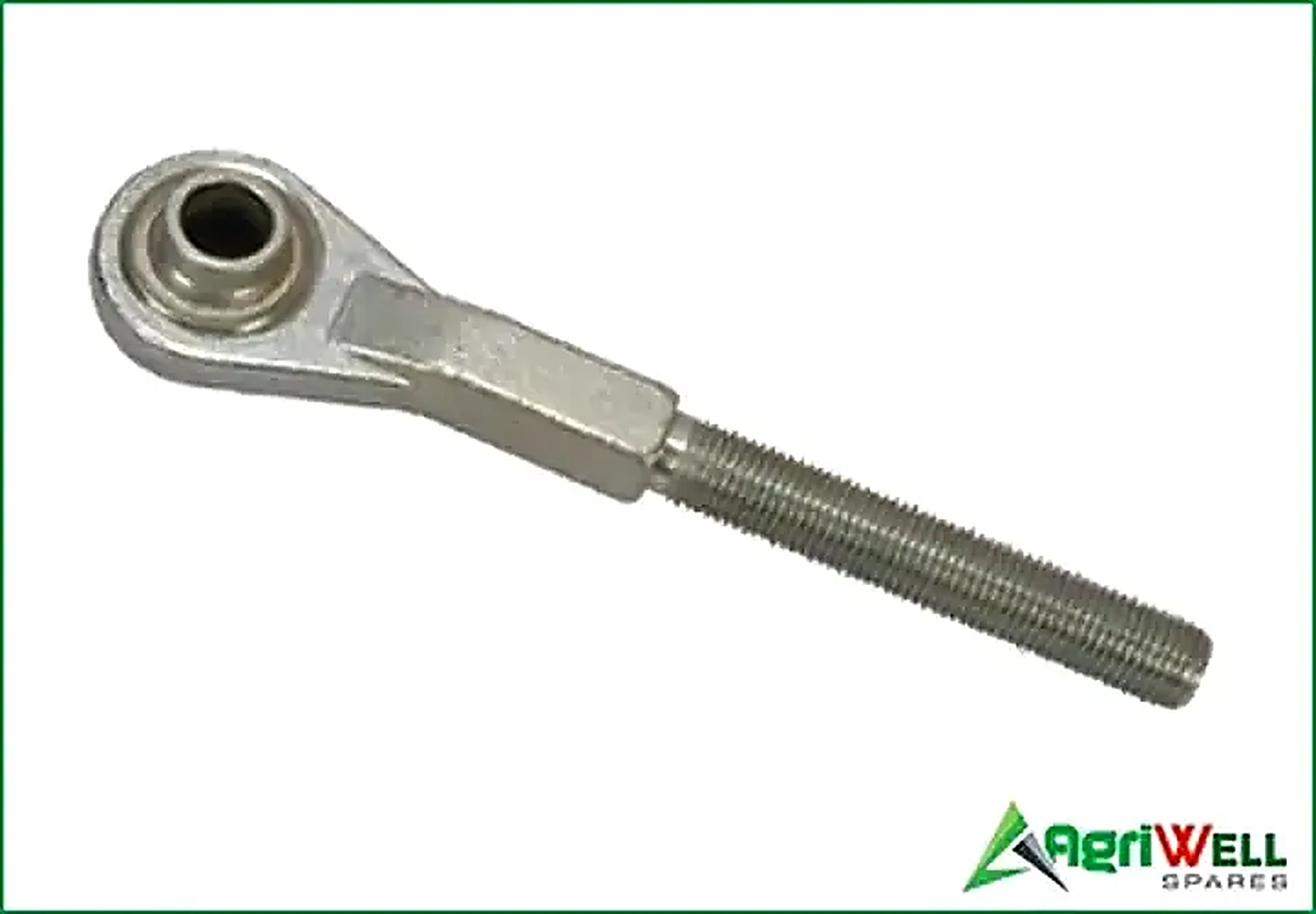

TLEBJD-R1181752

2

25.4

51

1-1/8" UNC - R

175

162

70

TLEBJD-L1181901

1

20

44

1-1/8" UNC - L

190

56

66

TLEBJD-R271752

2

25.4

51

M 27 X 3 R

175

162

70

TLEBJD-L271901

1

20

44

M 27 X 3 L

190

56

66

Part Number

Cat.

Ball ID ØA (mm)

Ball Length B (mm)

Thread (inches)

Dim. C (mm)

Dim. D (mm)

Dim. E (mm)

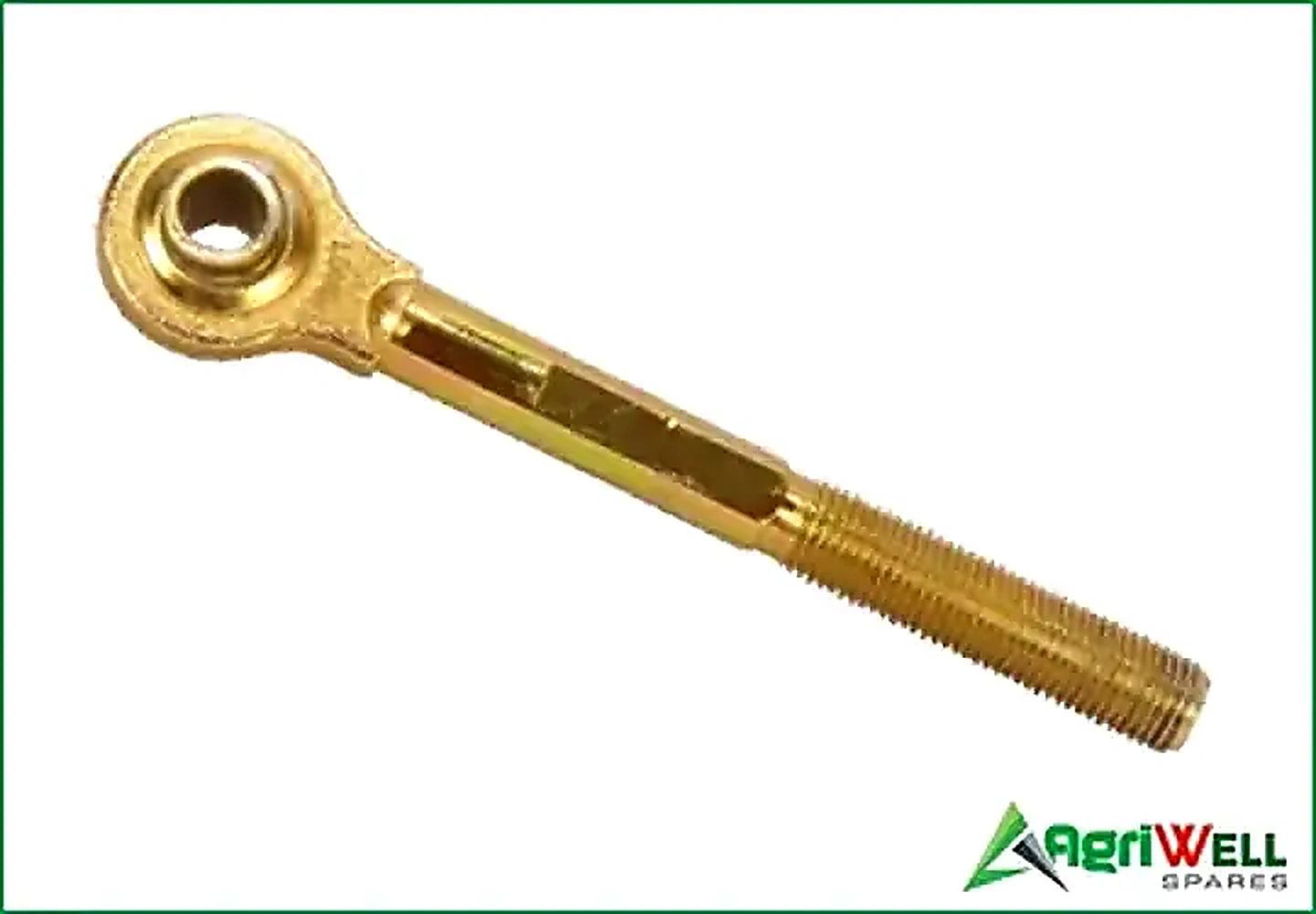

TLEBFD-L1141281

1

19

44

1-1/4" UNF - L

128

208

58

TLEBFD-L1141282

2

25.4

51

1-1/4" UNF - L

128

208

76

TLEBFD-R1141682

2

25.4

51

1-1/4" UNF - R

168

86

76

Part Number

Cat.

Ball ID ØA (mm)

Ball Length B (mm)

Thread (mm)

Dim. C (mm)

Dim. D (mm)

Dim. E (mm)

Ball OD (mm.)

Ref. Number

TLEB-L221251

1

19

44

22 X 2.5 L

125

45

52

38

03412

TLEB-R241151

1

19

44

24 X 2.5 R

115

50

62

38

03415

TLEB-L241151

1

19

44

24 X 2.5 L

115

50

62

38

03416

TLEB-R24127

-

22.1

35

24 X 3 R

127

45

62

44

18753

TLEB-R241551

1

19.2

44

24 X 3 R

155

50

62

38

18756

TLEB-L241551

1

19.2

44

24 X 3 L

155

50

62

38

18757

TLEB-2416512

1 , 2

19.2 , 25.4

45

24 X 3 R

165

58

80

54

18754

TLEB-L2416512

1 , 2

19.2 , 25.4

45

24 X 3 L

165

58

80

54

18755

TLEB-R27180

-

28.2

45

27 X 3 R

180

62

80

58

18758

TLEB-R271551

1

19

44

27 X 3 R

155

50

62

38

03419

TLEB-L271551

1

19

44

27 X 3 L

155

50

62

38

03420

TLEB-R270902

2

25.4

51

27 X 3 R

90

55

75

50

35699

TLEB-L270902

2

25.4

51

27 X 3 L

90

55

75

50

35700

TLEB-R271702

2

25.4

51

27 X 3 R

170

55

75

50

03423

TLEB-L271702

2

25.4

51

27 X 3 L

170

55

75

50

03424

TLEB-R272202

2

25.4

51

27 X 3 R

220

45

70

50

18765

TLEB-L272202

2

25.4

51

27 X 3 L

220

45

70

50

18766

TLEB-R301751

1

19.2

44

30 X 3 R

175

50

62

38

18759

TLEB-L301751

1

19.2

44

30 X 3 L

175

50

62

38

18760

TLEB-R301652

2

25.4

51

30 X 3 R

165

55

75

50

03427

TLEB-L301652

2

25.4

51

30 X 3 L

165

55

75

50

03428

TLEB-R302002

2

25.4

51

30 X 3 R

200

50

75

50

18767

TLEB-L302002

2

25.4

51

30 X 3 L

200

50

75

50

18768

TLEB-R30175

-

20.2

44

30 X 3.5 R

175

50

62

42

18763

TLEB-L30175

-

20.2

44

30 X 3.5 L

175

50

62

42

18764

TLEB-R30165

-

22.1

51

30 X 3.5 R

165

55

75

50

18771

TLEB-L30165

-

22.1

51

30 X 3.5 L

165

55

75

50

18772

TLEB-R301751

1

19.2

44

30 X 3.5 R

175

50

62

38

18761

TLEB-L301751

1

19.2

44

30 X 3.5 L

175

50

62

38

18762

TLEB-R301652

2

25.4

51

30 X 3.5 R

165

55

75

50

18769

TLEB-L301652

2

25.4

51

30 X 3.5 L

165

55

75

50

18770

TLEB-R361652

2

25.4

51

36 X 3 R

165

55

80

54

03437

TLEB-L361652

2

25.4

51

36 X 3 L

165

55

80

54

03438

TLEB-R362002

2

25.4

51

36 X 3 R

200

70

96

62

03489

TLEB-L362002

2

25.4

51

36 X 3 L

200

70

96

62

03488

TLEB-R401752

2

25.4

51

40 X 3 R

175

60

80

50

03439

TLEB-L401752

2

25.4

51

40 X 3 L

175

60

80

50

03440

TLEB-R362003

3

32

51

36 X 3 R

200

70

96

62

02698

TLEB-L362003

3

32

51

36 X 3 L

200

70

96

62

02699

TLEB-R402003

3

32

51

40 X 3 R

200

70

96

62

09324

TLEB-L402003

3

32

51

40 X 3 L

200

70

96

62

09325
