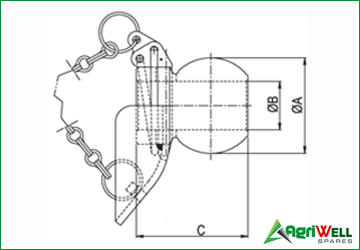

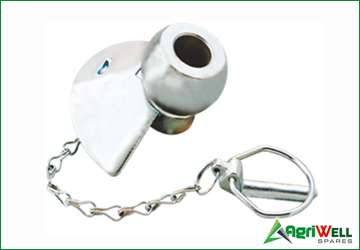

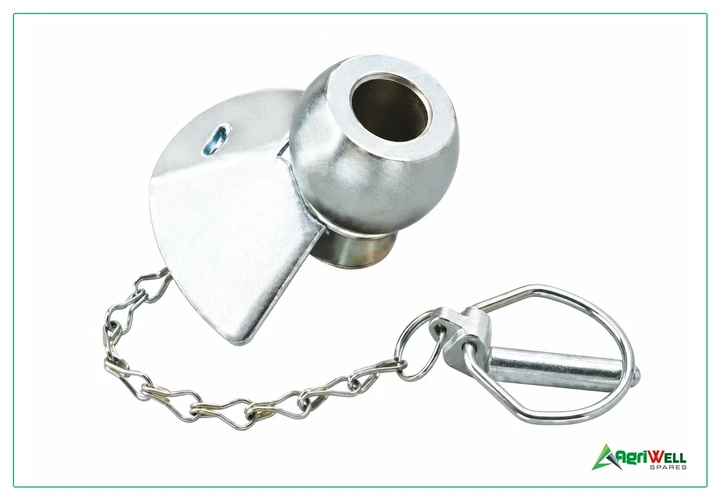

GUIDE CONE BALL HARDENED
Balls (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm) Optional Material 16MnCr5 / 20MnCr5. Trivalent Zinc Plating.
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
LINCH PIN SIZE |
Ref. Number |
GCB4422 |
44 |
22.1 |
54 |
11 |
01450 |
GCB5622 |
56 |
22.1 |
66 |
11 |
|
GCB5628 |
56 |
28.4 |
66 |
11 |
01451 |
GCB5637 |
56 |
37.1 |
66 |
11 |
01452 |
GCB6428 |
64 |
28.4 |
66 |
11 |
|
GCB6437 |
64 |
37.1 |
72 |
15 |
|
GCB6437-11 |
64 |
37.1 |
72 |
11 |

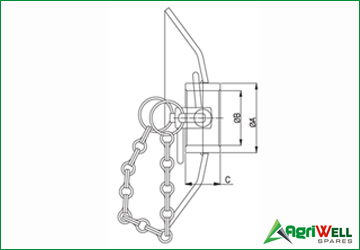

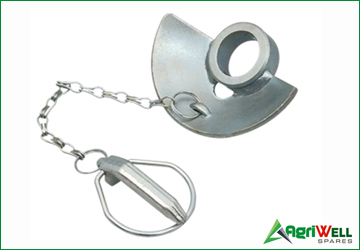

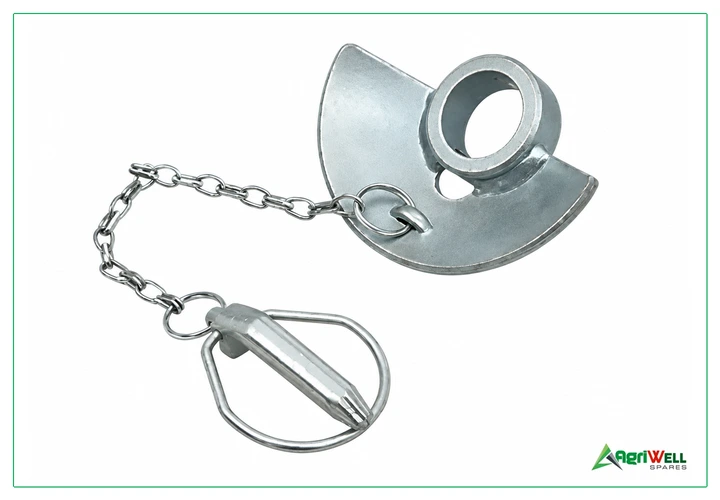

GUIDED CONE BUSH
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Ref. Number |
GCBB-472825 |
45 |
28.4 |
24 |
24 |
24 |
10107 |

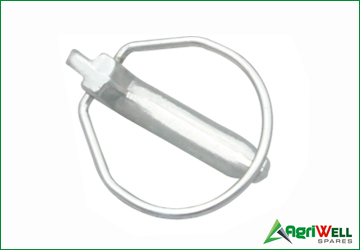

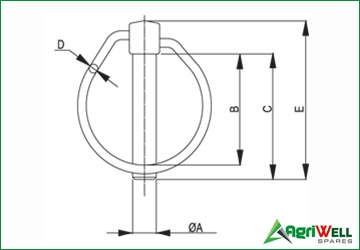

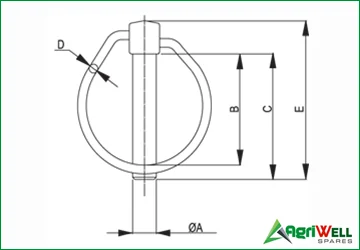

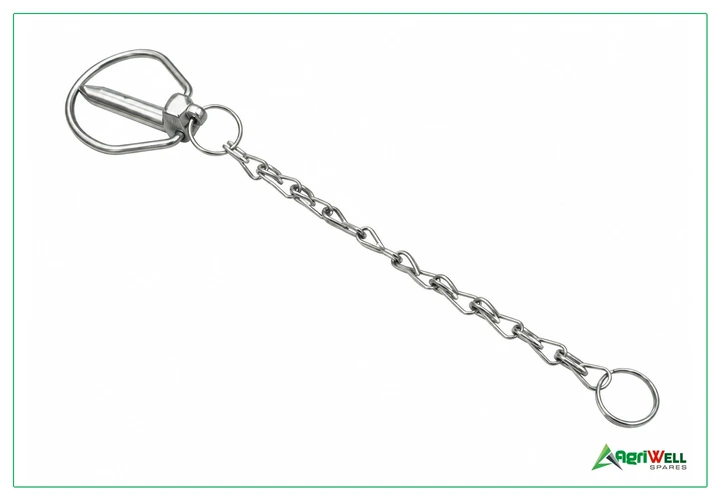

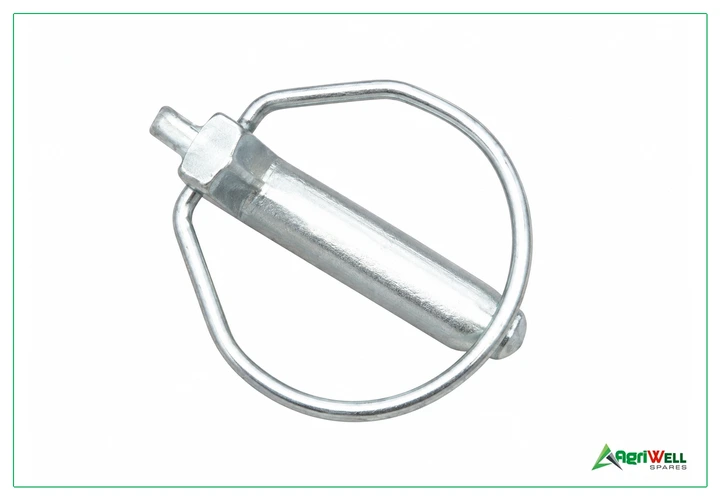

LINCH PINS-FORGED
Bush (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm),Optional Material 16MnCr5 / 20MnCr5. Trivalent Zinc Plating.
Part Number |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Ref. Number |
LPF-1148 |
11 |
48 |
52 |
4 |
70 |
0068 |
LPF-1548 |
15 |
56 |
60 |
4 |
82 |
37943 |
