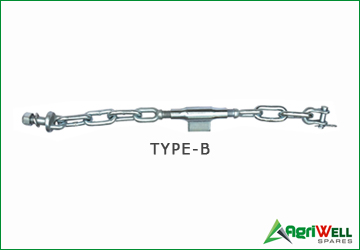

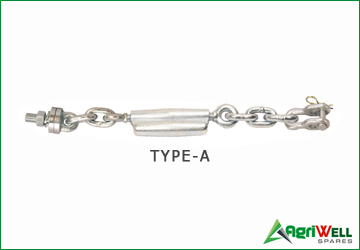

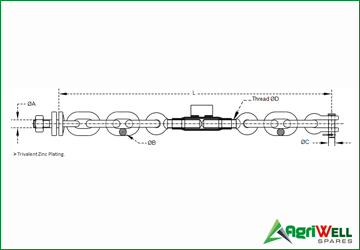

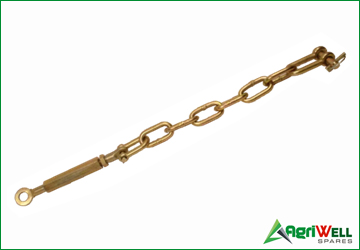

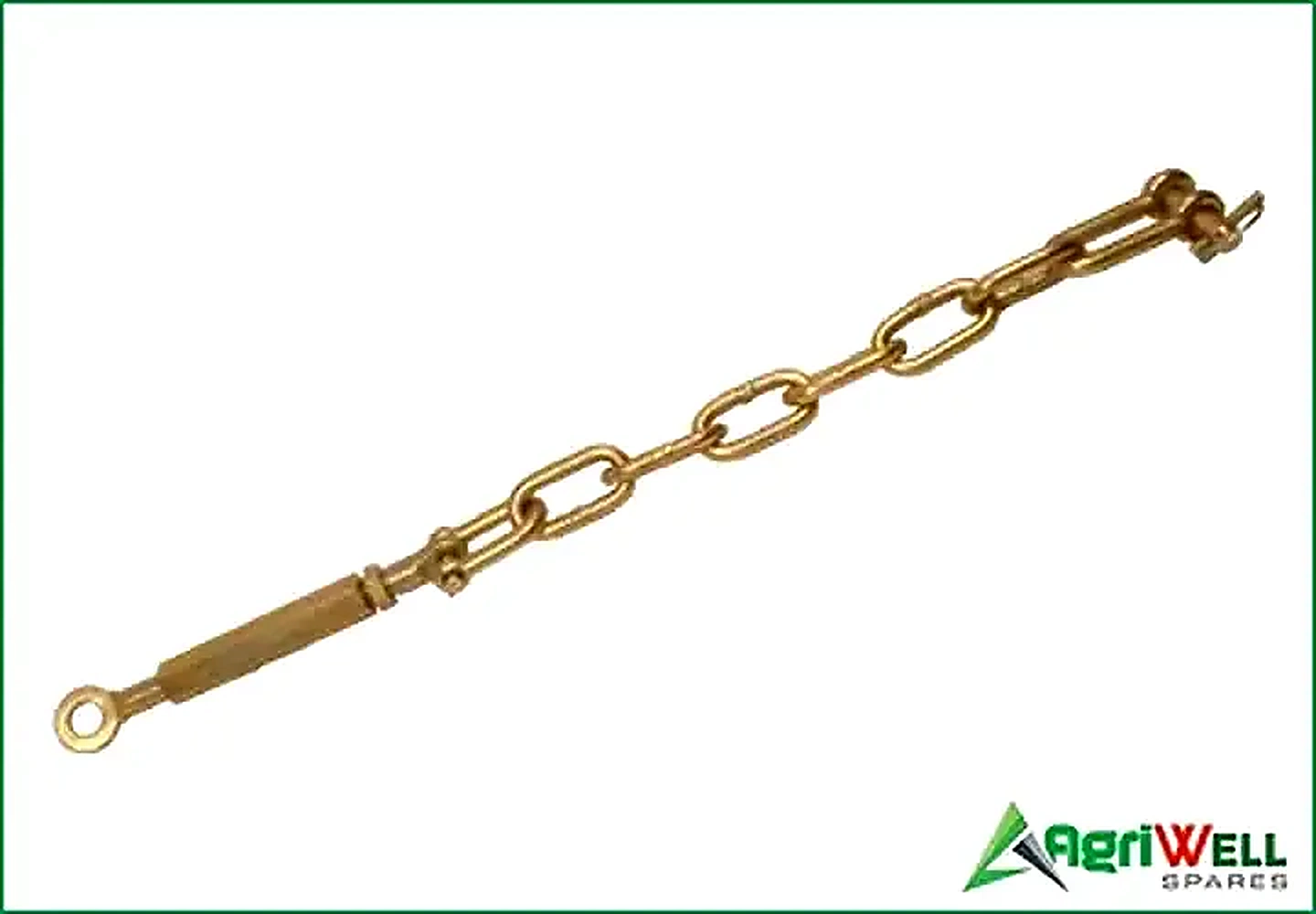

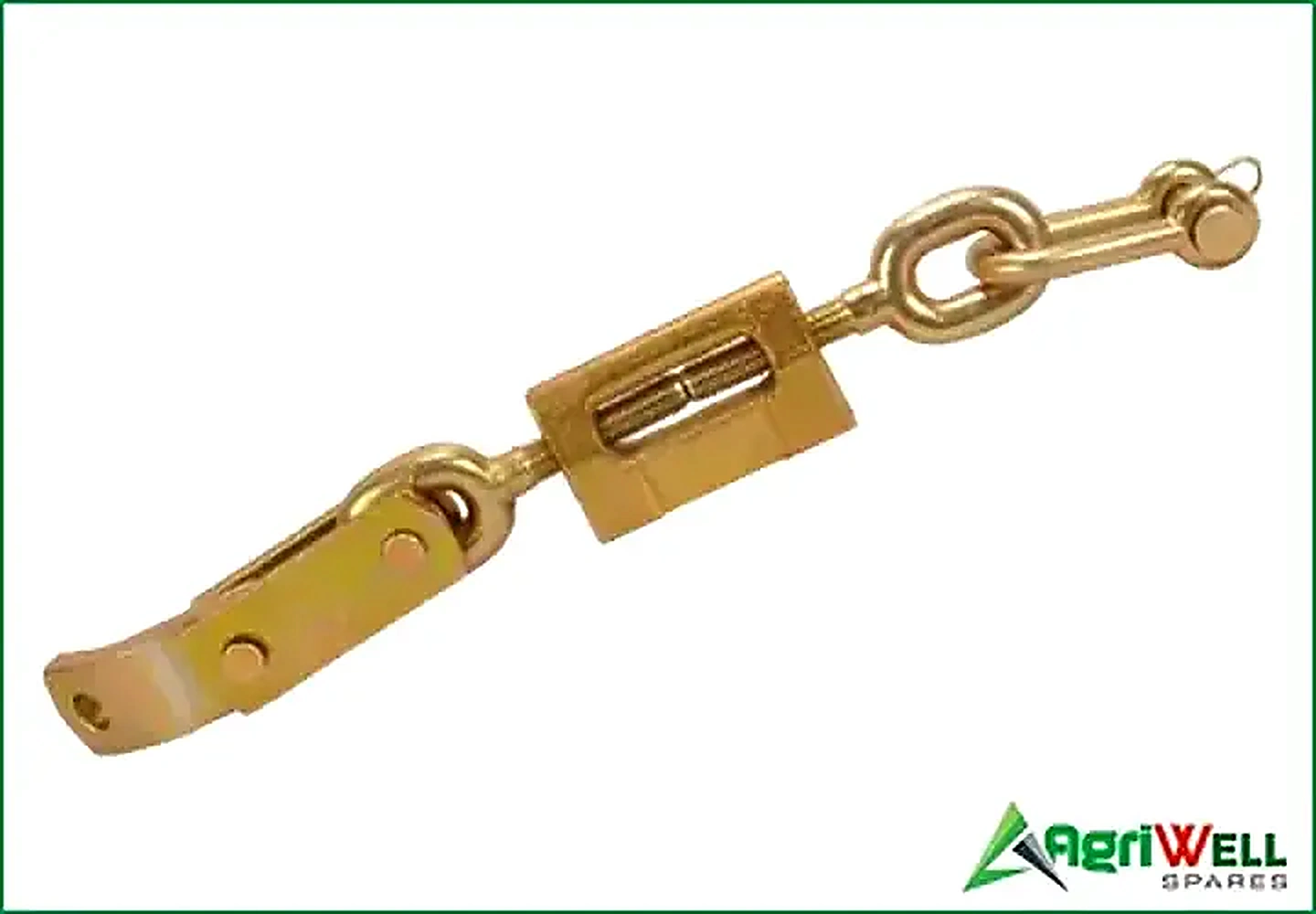

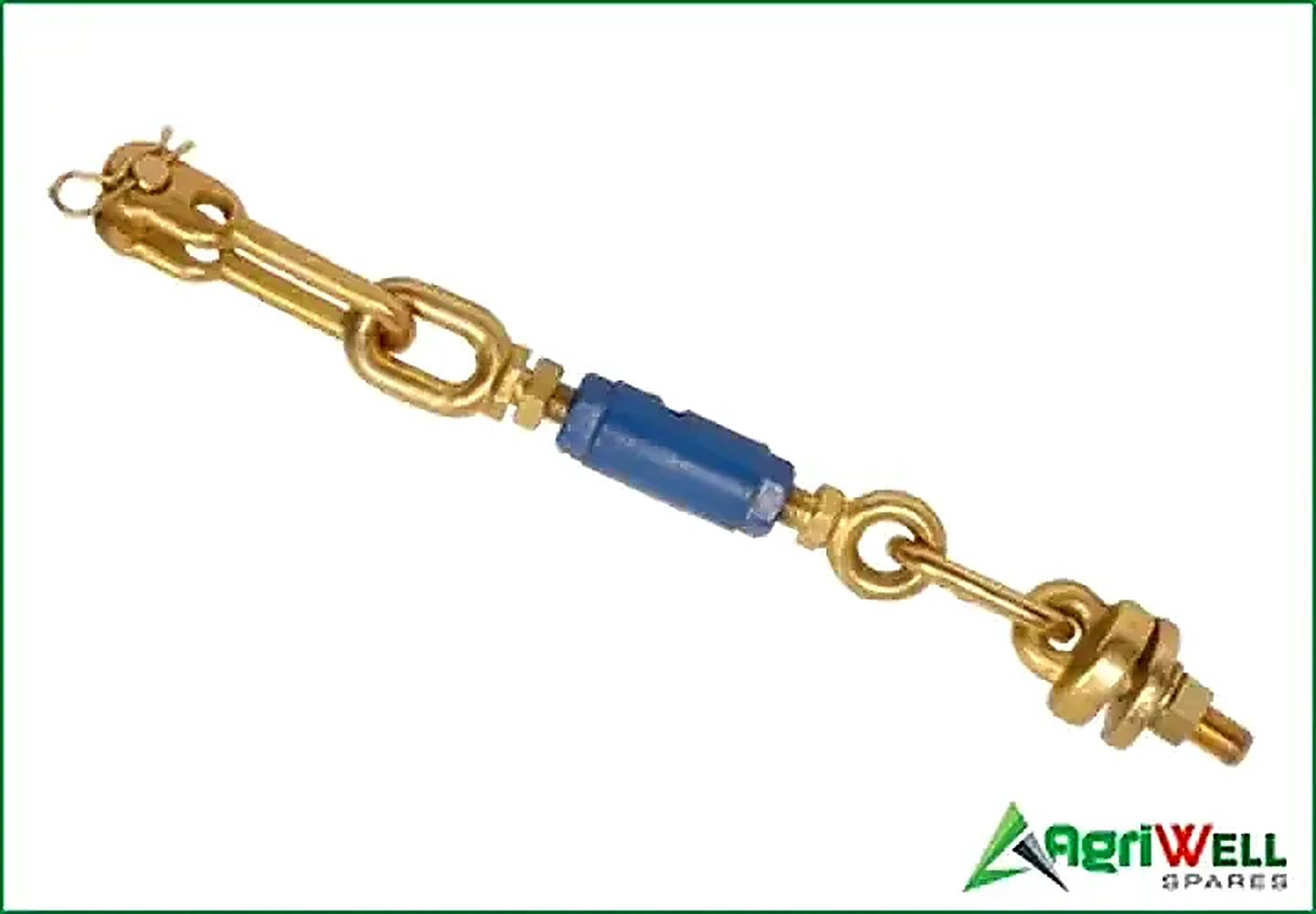

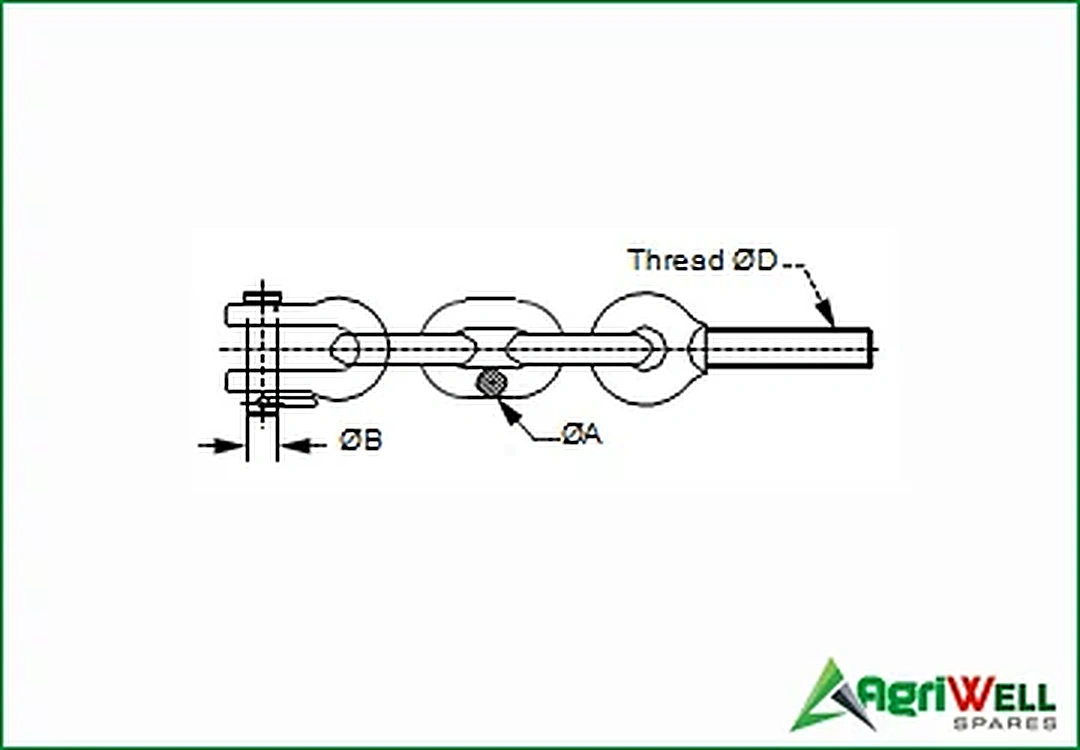

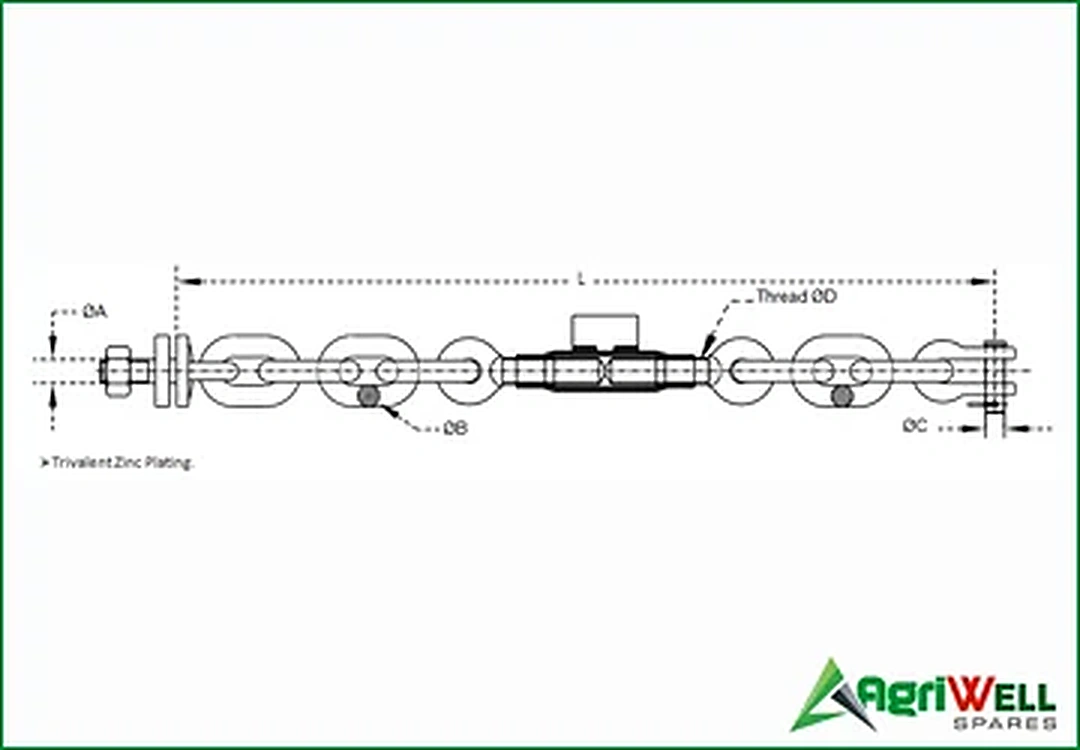

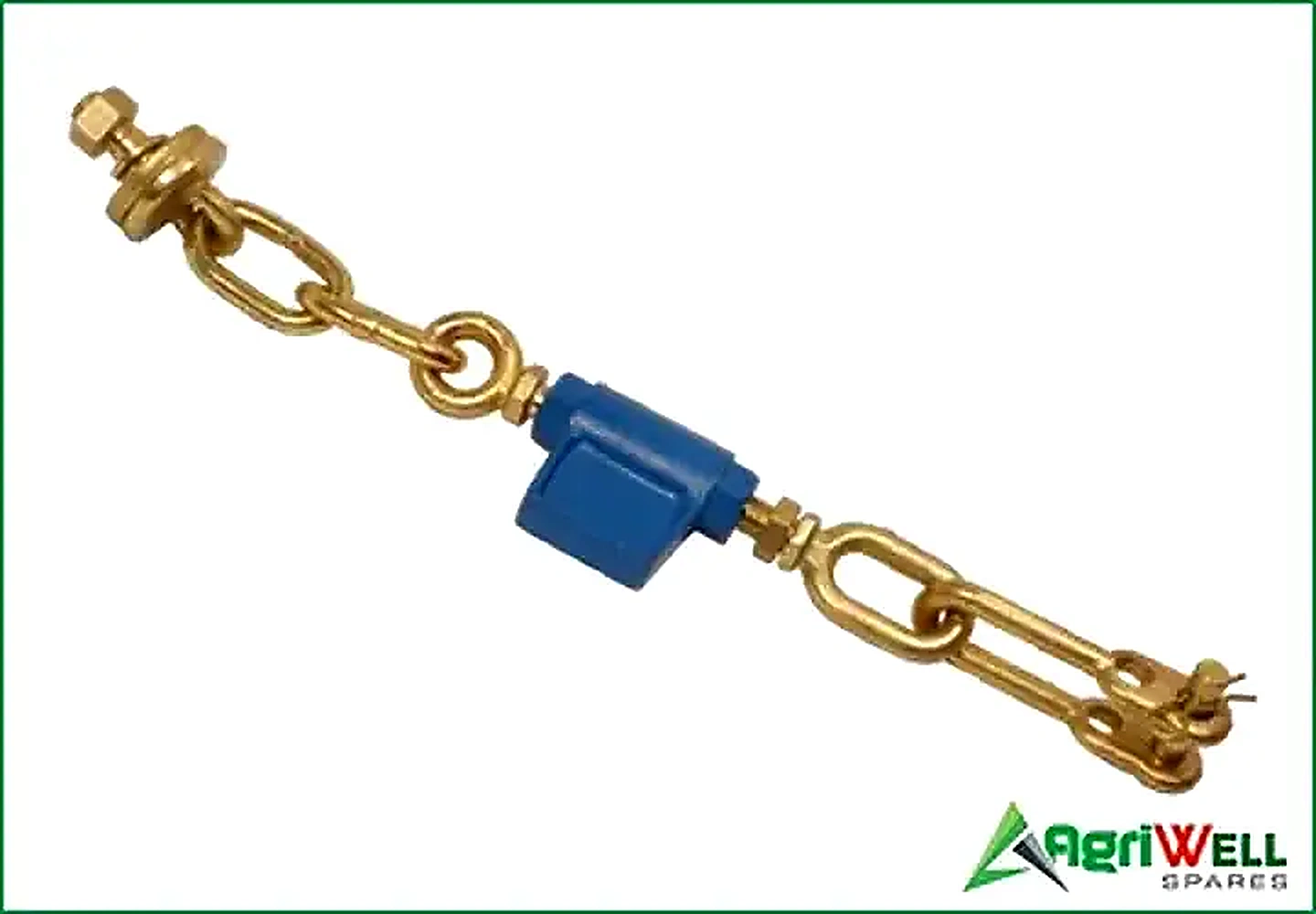

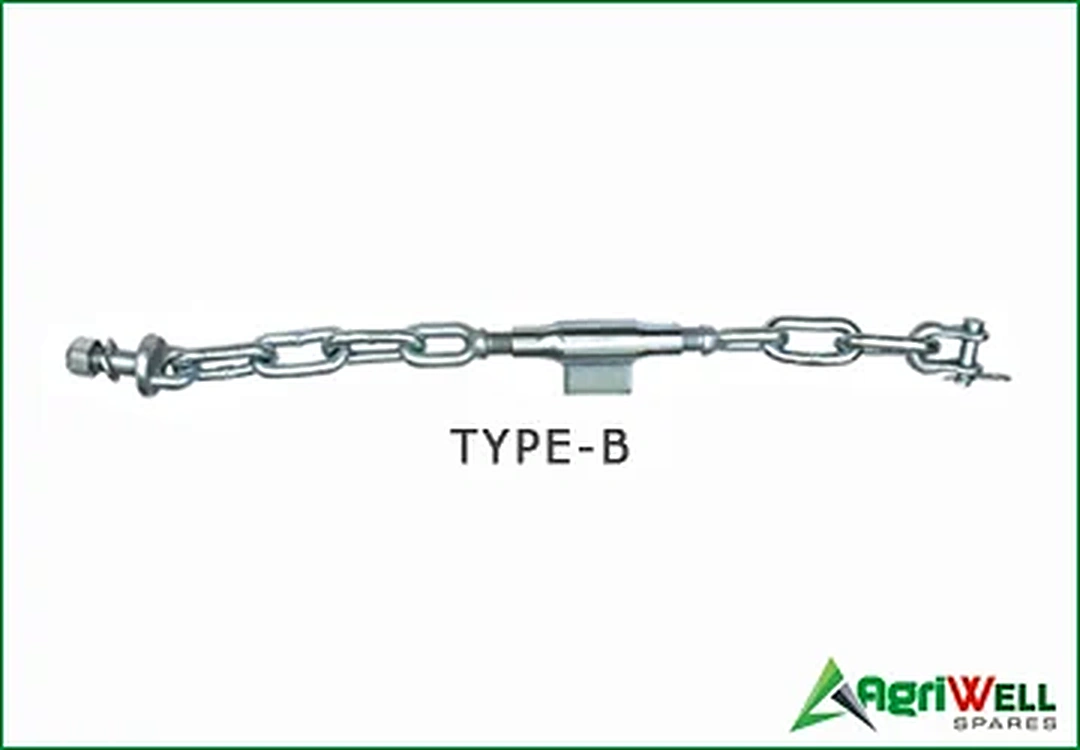

STABILISER CHAINS
Part Number |
Type |
No. of Links |
Dim. L (mm) |
Dia. ØA (mm) |
Dia. ØB (mm) |
Dia. ØC (mm) |
Thread ØD (mm) |
Ref. Number |
STC-162420 |
A |
2+2 |
420 |
18 |
12 |
12 |
16X2 |
35641 |
STC-162500 |
A |
3+3 |
500 |
18 |
12 |
12 |
16X2 |
65642 |
STC-162580 |
A |
4+4 |
580 |
18 |
12 |
12 |
16X2 |
65643 |
STC-225670 |
B |
4+3 |
670 |
20 |
18 |
16 |
22X2.5 |
01115 |
STC-162515 |
B |
2+2 |
515 |
20 |
12 |
14 |
16X2 |
01117 |
STC-162480 |
B |
3+1 |
480 |
18 |
10 |
14 |
16X2 |
35646 |
STC-025570 |
B |
2+2 |
570 |
20 |
12 |
14 |
20X2.5 |
65647 |
STC-162635 |
B |
3+3 |
635 |
20 |
12 |
14 |
16X2 |
65648 |
STC-025670 |
B |
3+3 |
670 |
20 |
12 |
14 |
20X2.5 |
35649 |
STC-025580 |
B |
3+2 |
580 |
20 |
12 |
14 |
20X2.5 |
35650 |
STC-025460 |
B |
1+1 |
460 |
20 |
12 |
14 |
20X2.5 |
35651 |

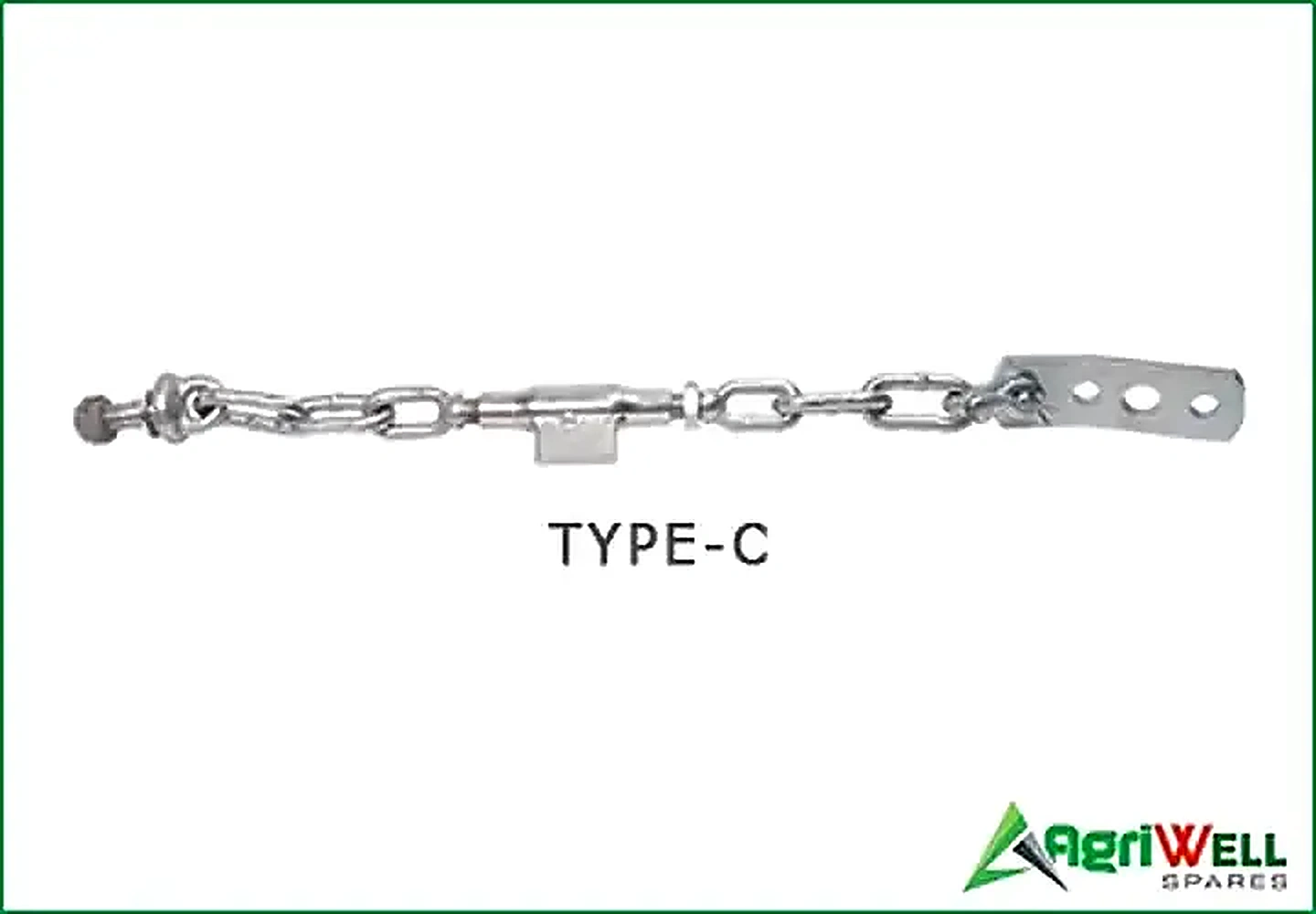

STC-025570 |
C |
2+2 |
570 |
20 |
12 |
14 |
20X2.5 |
35652 |
STC-025600 |
C |
3+2 |
600 |
20 |
12 |
14 |
20X2.5 |
35653 |

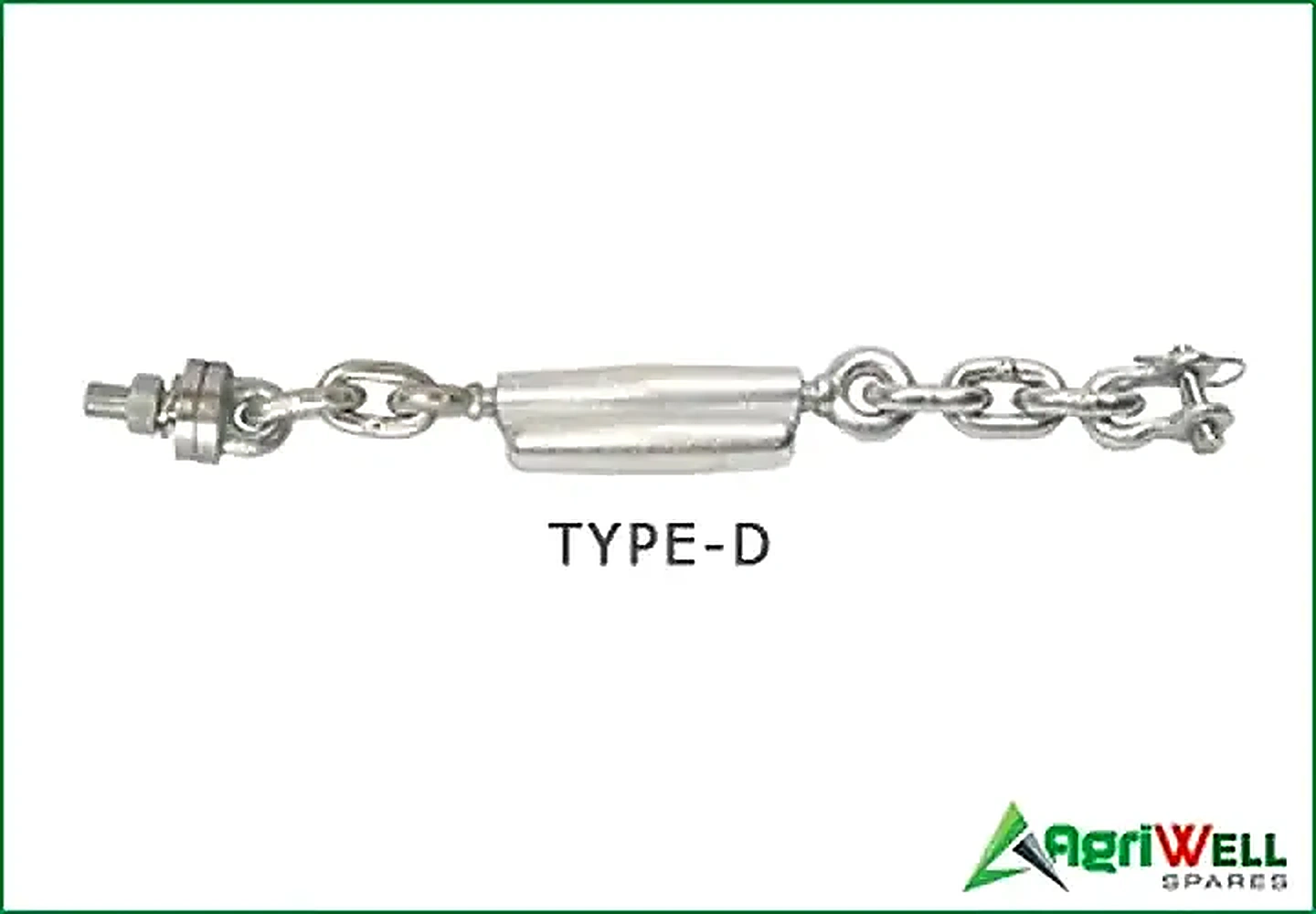

STC-162430 |
D |
1+1 |
430 |
22 |
14 |
14-14 |
16X2 |
05752 |
STC-162520 |
D |
2+1 (2+2) |
520 |
22 |
13 |
14-14 |
16X2 |
05753 |
STC-162430 |
D |
1+1 |
430 |
22 |
12 |
14-14 |
16X2 |
10681 |

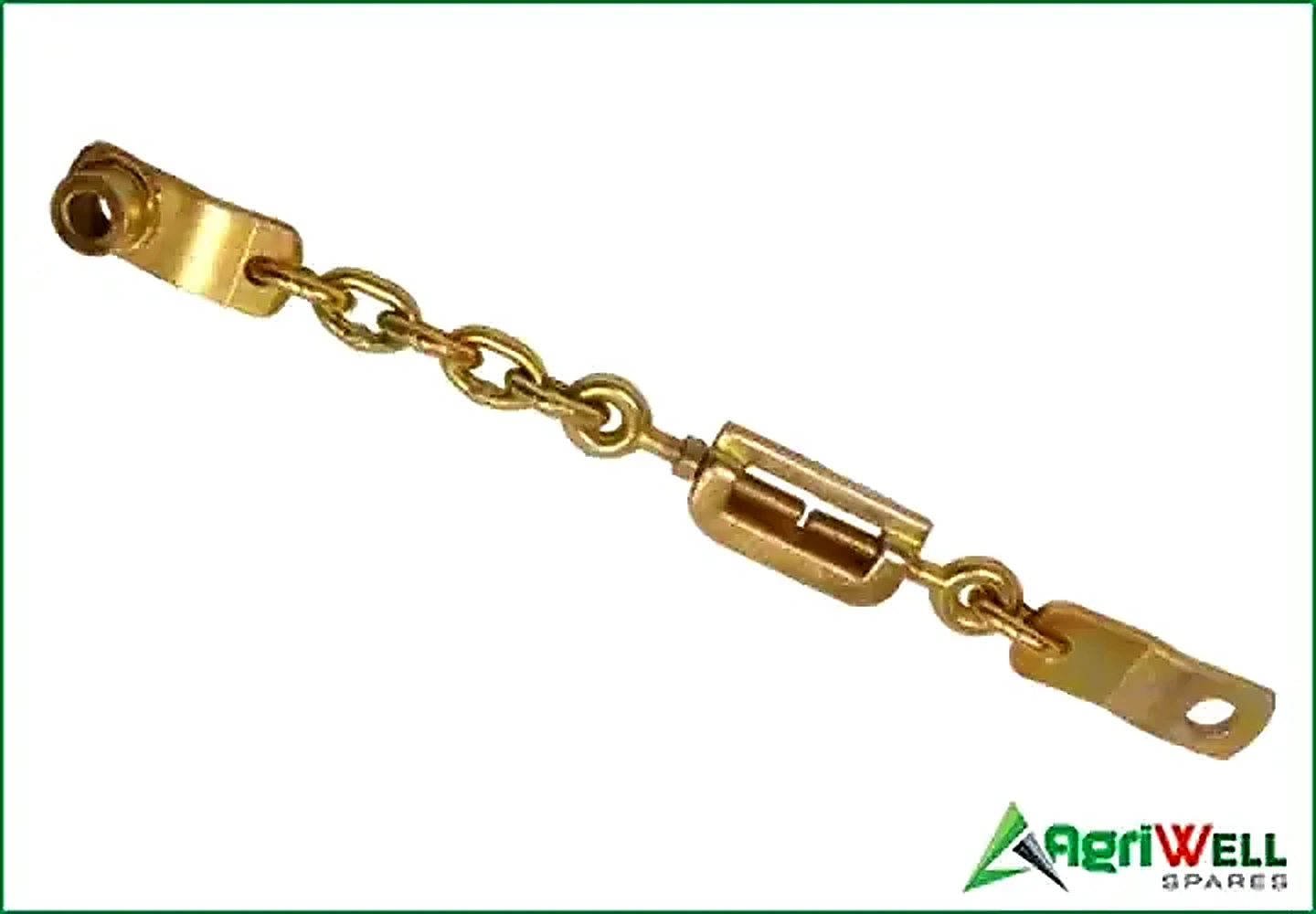

STABILISER CHAINS
Part Number |
Description |
Ref. Number |
SCFD-11197 |
With 2 Links Chain fit for 4000, 4100, 4110, 4600, 4610 Replaces CFPND936A, 81813318 |
S-11197 |
SCFD-11198 |
With 3 Links chain fit for 5000, 5600, 5610, 6600, 661D, 6700, 7000, 7600, 7610, 7700, |
S-11198 |
STABILISER CHAINS
Part Number |
Description |
Ref. Number |
SCMF-41038 |
Fit for 256, 275, 290, S65, S75, 590 Replaces 1661406M91 |
S-41038 |
STABILISER CHAINS
Part Number |
Description |
Ref. Number |
SCMF-41303 |
Fit for MF 135, 230, 240 with 35" Lower Link Arm Replaces 1863260 M91 |
S-41303 |
STABILISER CHAINS
Part Number |
Description |
No. of Links |
Ref. Number |
SC-175 |
Universal fit… Works with almost any Tractor Implements Through any of the intermediate chain links |
9 |
S-175 |
SC-176 |
Universal fit… Works with almost any Tractor Implements Through any of the intermediate chain links |
6 |
S-176 |
STABILISER CHAINS
Part Number |
Description |
Ref. Number |
SC-4456 |
With 2 Links Chain fit for 4000, 4100, 4110, 4600, 4610 Replaces CFPND936A, 81813318 |
S-4456 |
SC-4457 |
With 3 Links chain fit for 5000, 5600, 5610, 6600, 661D, 6700, 7000, 7600, 7610, 7700, |
S-4457 |

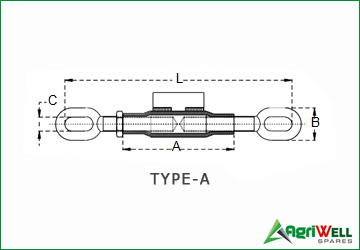

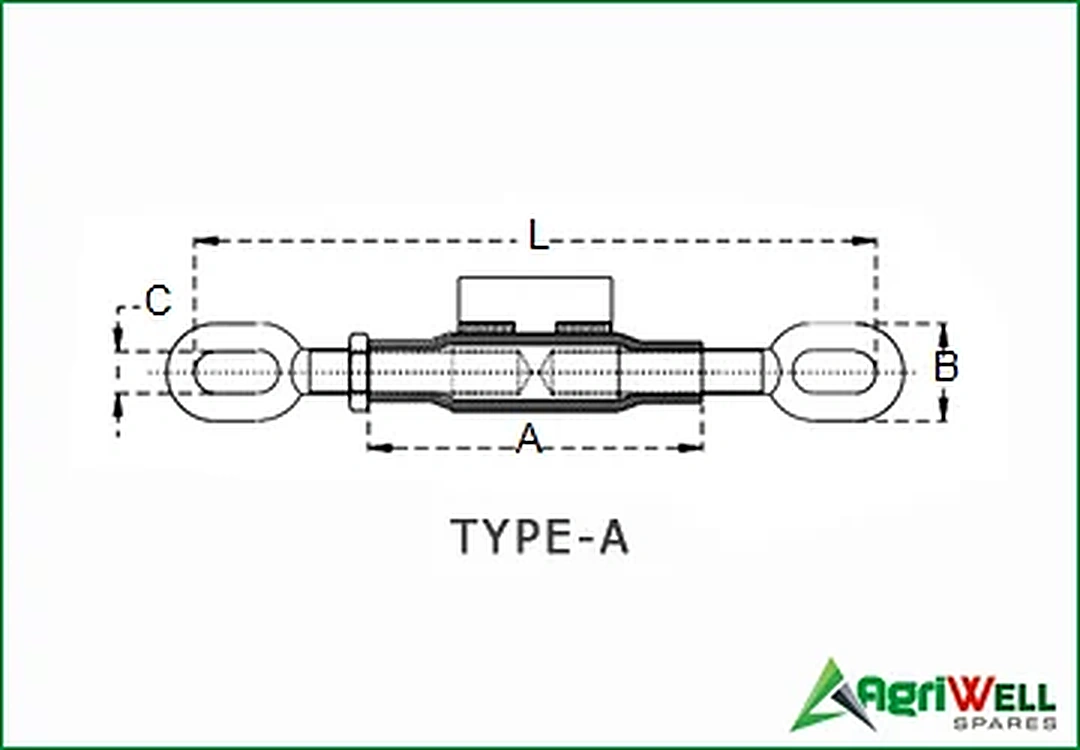

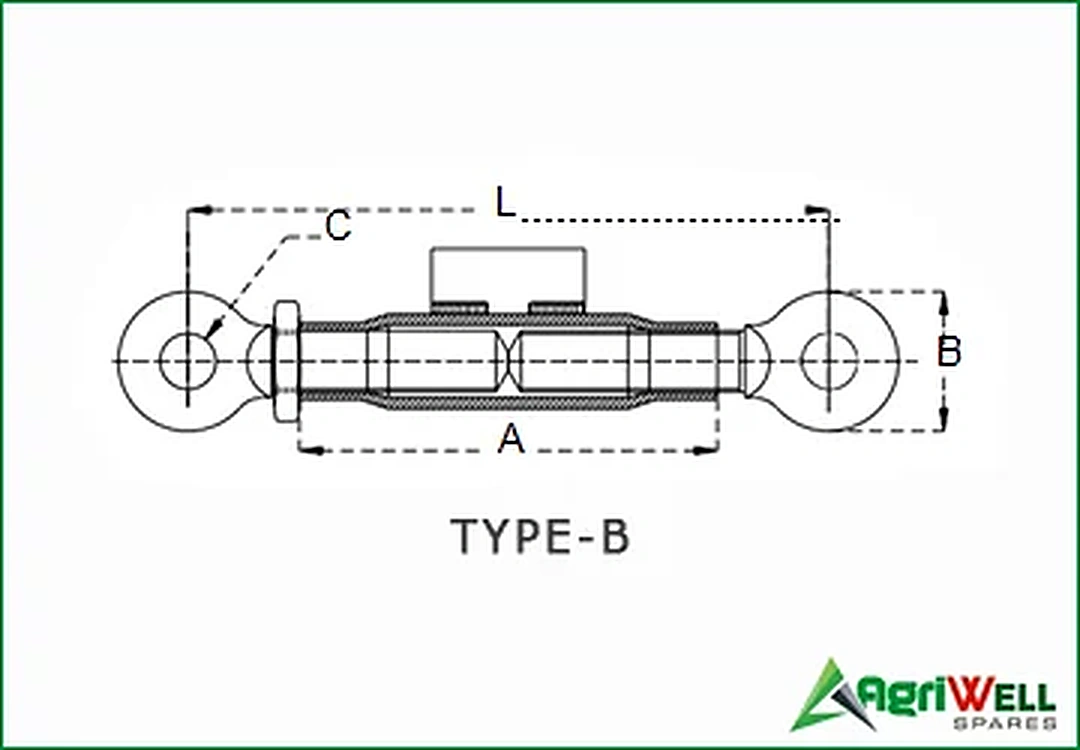

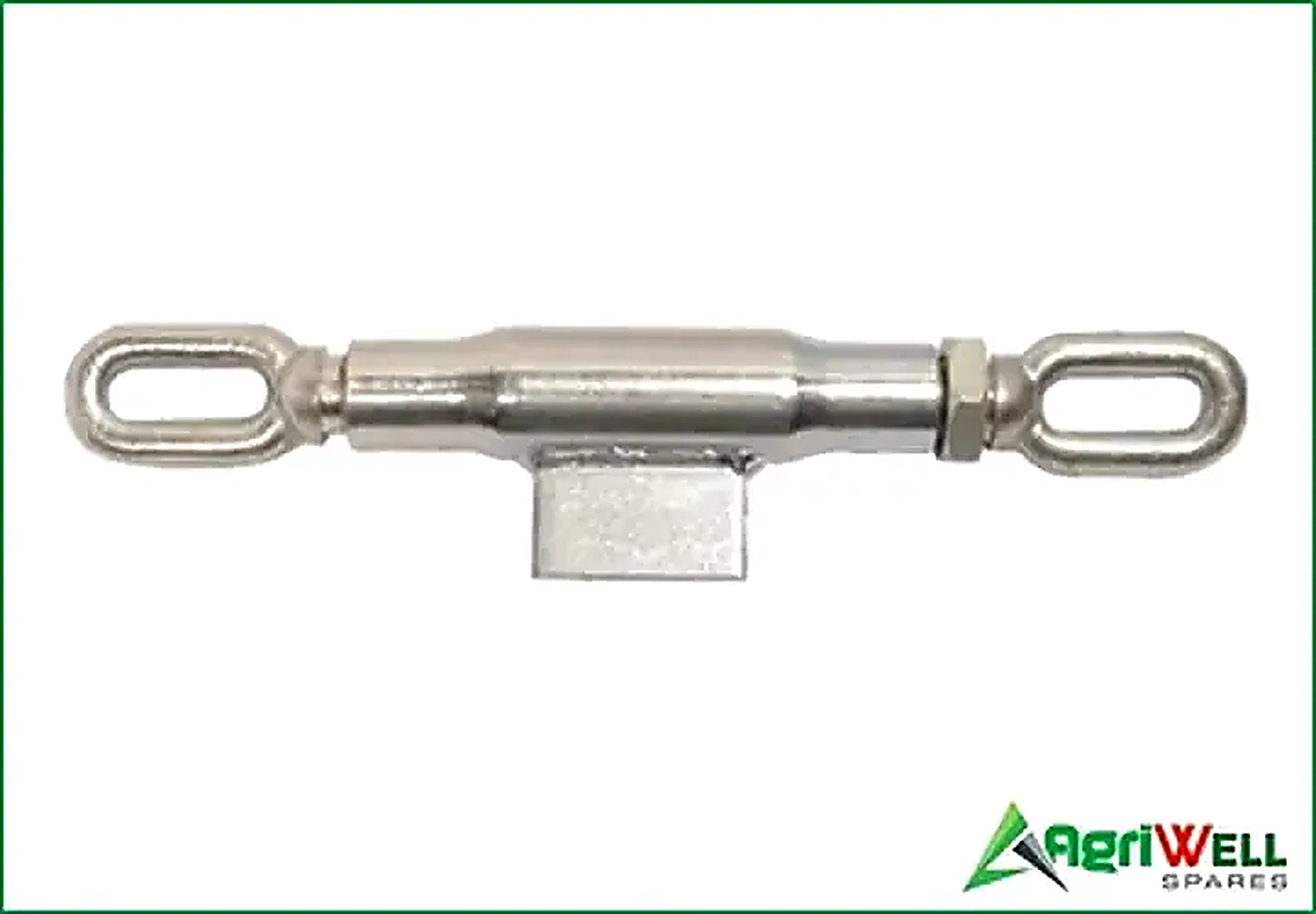

STABILISERS ADJUSTERS
Part Number |
Dim. L Min. (mm) |
Dim. L Max. (mm) |
Dim. A (mm) |
Dim. B (mm) |
Dim. C (mm) |
Thread ØD (mm) |
Type A |
Ref. Number |
STA-162120A |
245 |
335 |
120 |
35 |
14 |
16X2 |
A |
00026 |
STA-1825135A |
250 |
350 |
135 |
38 |
14 |
18X2.5 |
A |
00027 |
STA-2025130A |
275 |
370 |
130 |
38 |
14 |
20X2.5 |
A |
00028 |
STA-2225150A |
280 |
390 |
150 |
38 |
14 |
22X2.5 |
A |
00246 |
STA-162120B |
210 |
300 |
120 |
46 |
18 |
16X2 |
B |
05409 |
STA-2025130B |
230 |
330 |
130 |
46 |
18 |
20X2.5 |
B |
05414 |
STA-2225150B |
250 |
360 |
150 |
50 |
20 |
22X2.5 |
B |
05063 |

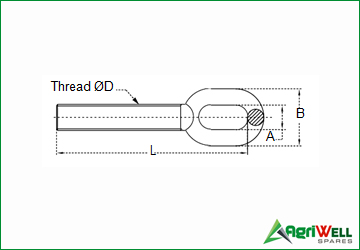

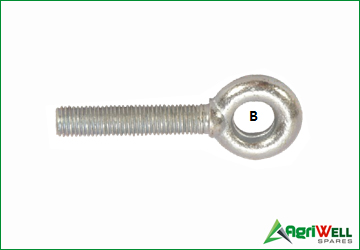

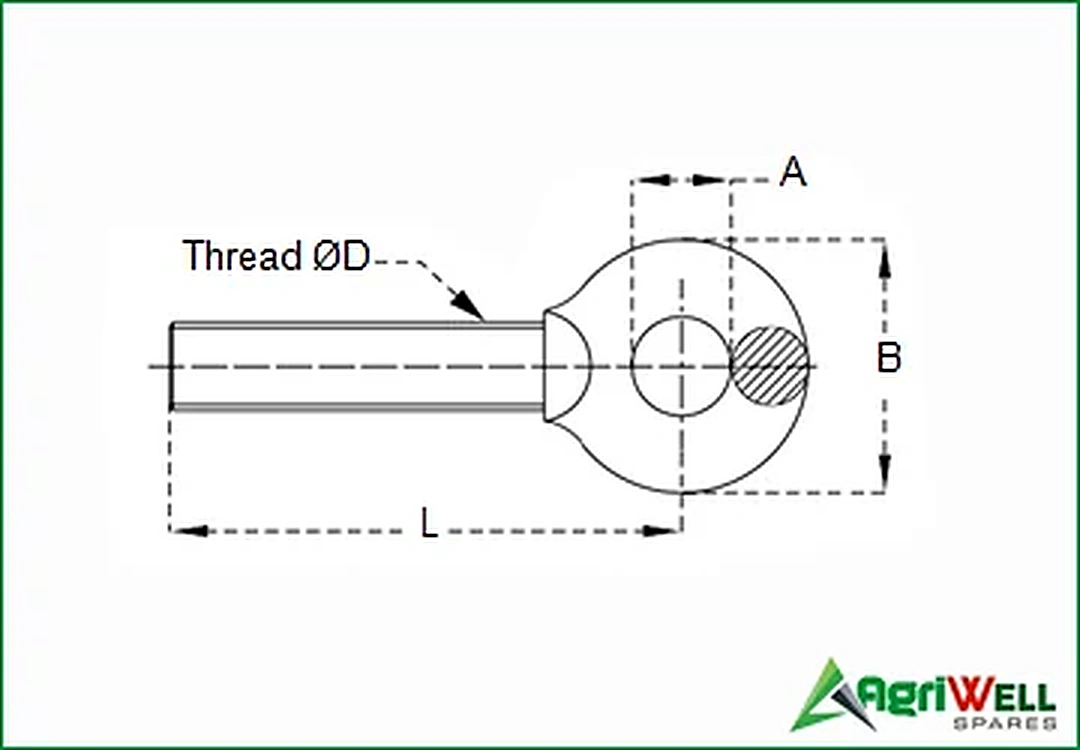

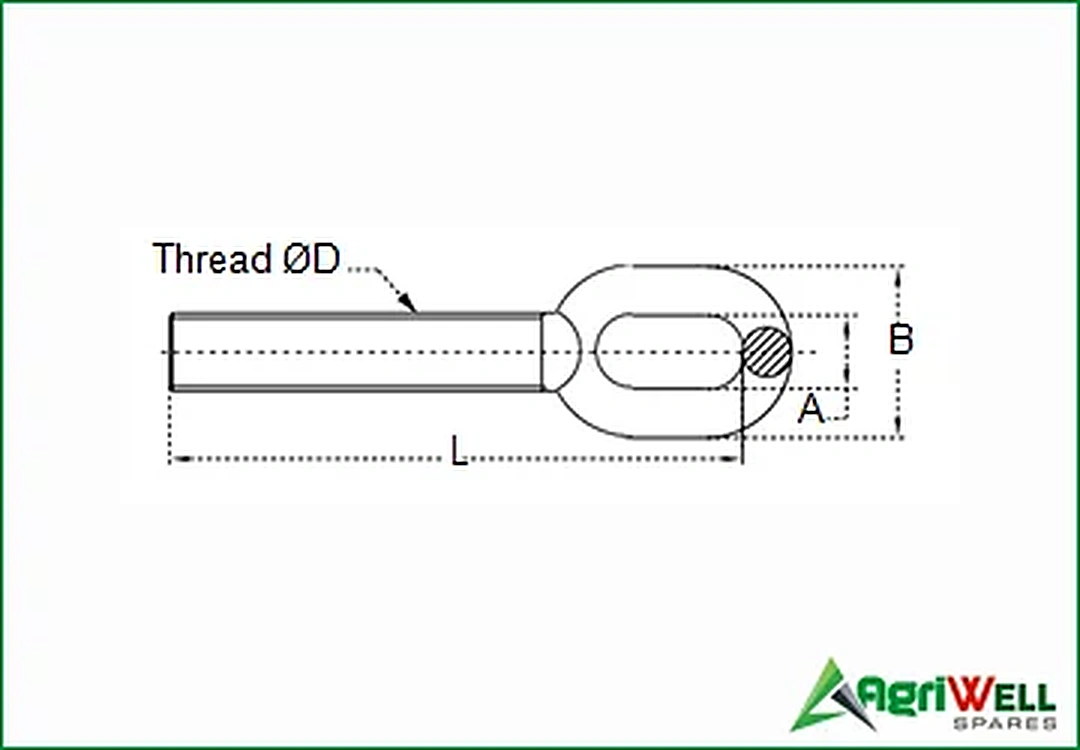

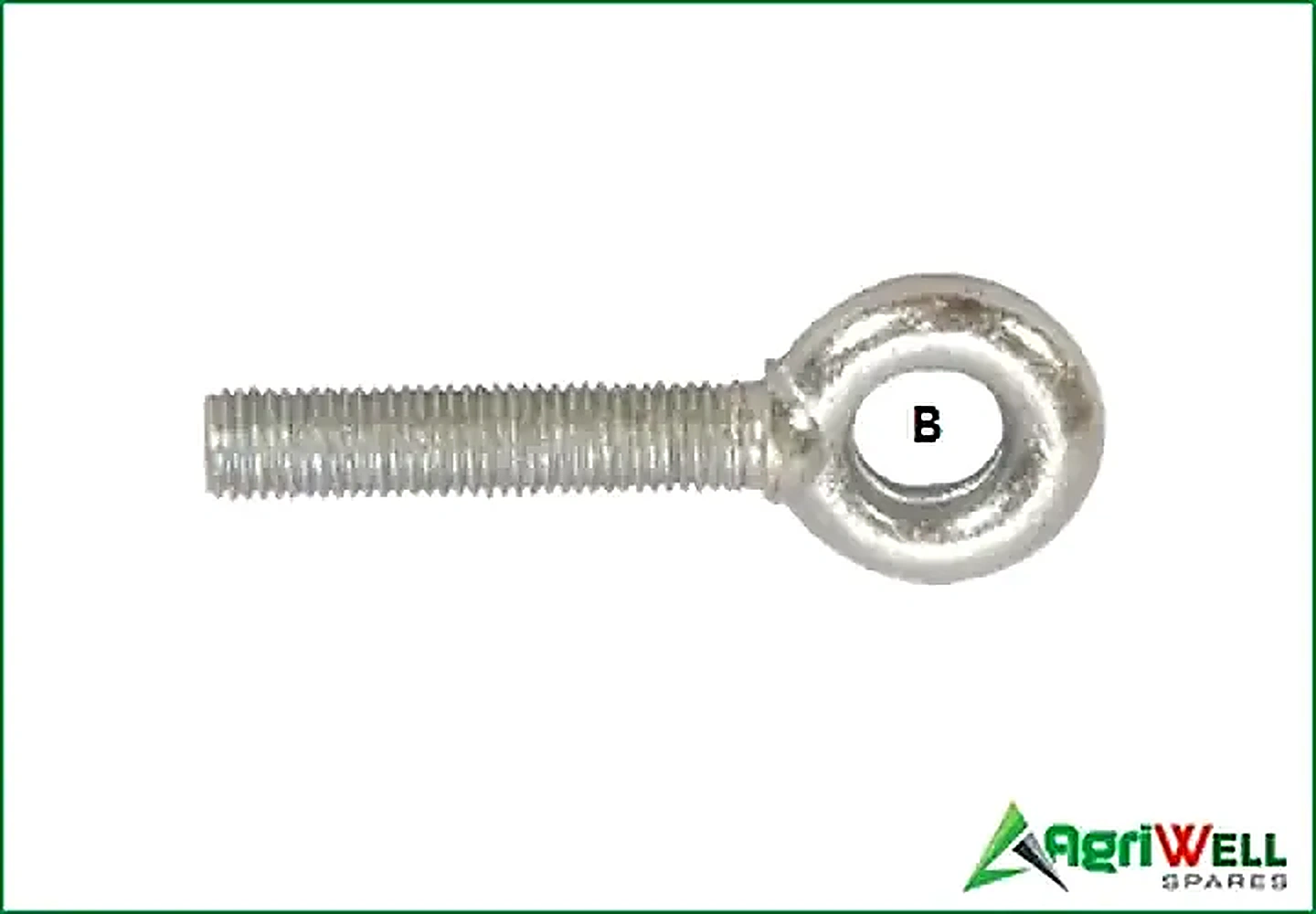

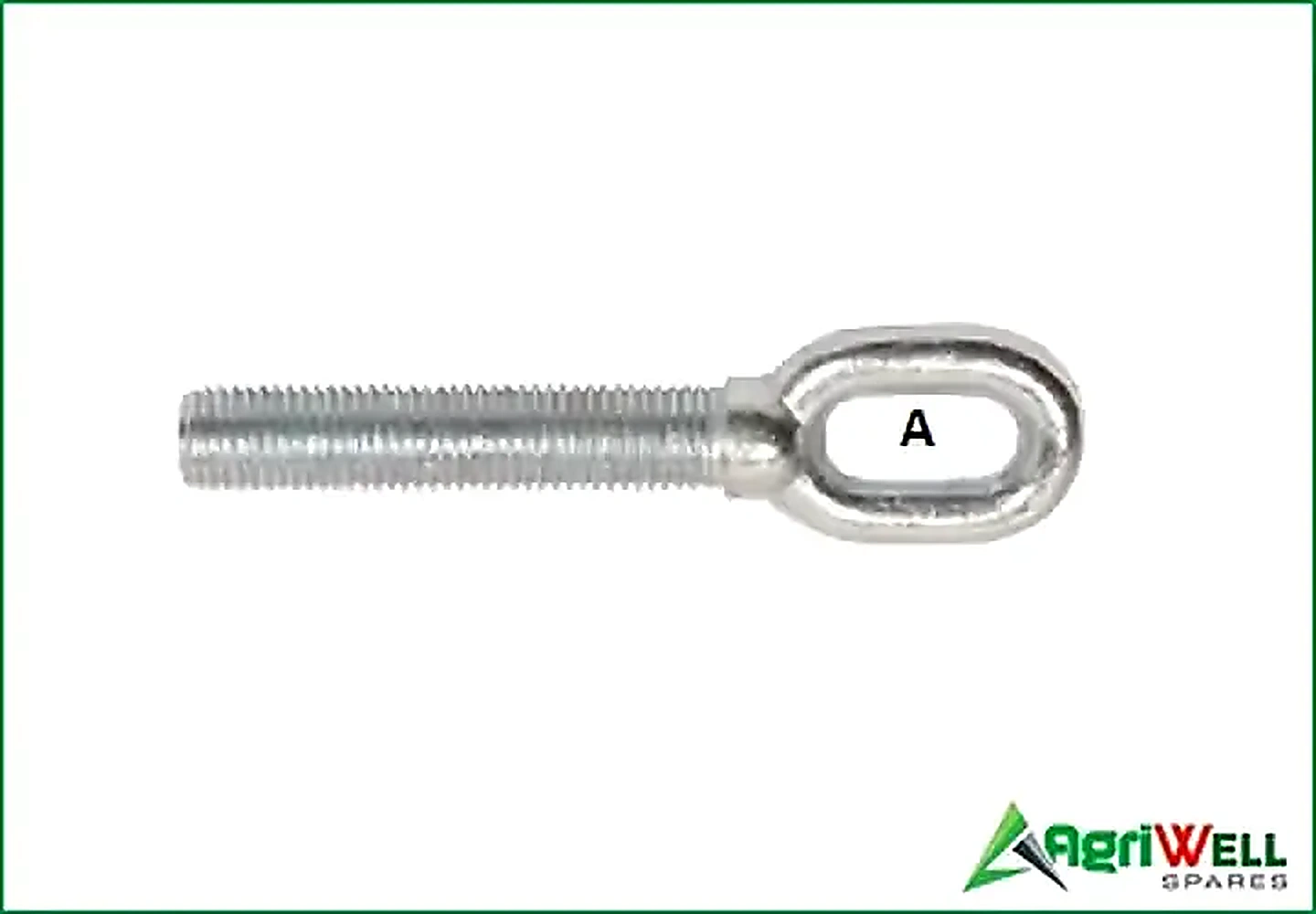

END FOR STABILISERS ADJUSTERS
Part Number |
Dim. L (mm) |
Dim. A (mm) |
Dim. B (mm) |
Thread ØD (mm) |
Type |
Ref. Number |
STAE-R16297 |
97 |
18 |
46 |
16X2 R |
B |
04645 |
STAE-L16297 |
97 |
18 |
46 |
16X2 L |
B |
04647 |
STAE-R2025115 |
115 |
18 |
46 |
20X2.5 R |
B |
04648 |
STAE-L2025115 |
115 |
18 |
46 |
20X2.5 L |
B |
04649 |
STAE-R2225115 |
115 |
20 |
50 |
22X2.5 R |
B |
04662 |
STAE-L2225115 |
115 |
20 |
50 |
22X2.5 L |
B |
04663 |
STAE-R162121 |
121 |
14 |
35 |
16X2 R |
A |
04612 |
STAE-L162121 |
121 |
14 |
35 |
16X2 L |
A |
04615 |
STAE-R1825136 |
136 |
14 |
38 |
18X2.5 R |
A |
04616 |
STAE-L1825136 |
136 |
14 |
38 |
18X2.5 L |
A |
04617 |
STAE-R2025136 |
136 |
14 |
38 |
20X2.5 R |
A |
04618 |
STAE-L2025136 |
136 |
14 |
38 |
20X2.5 L |
A |
03441 |
END FOR STABILISERS ADJUSTERS
Part Number |
Dim. L (mm) |
Dim. A (mm) |
Dim. B (mm) |
Thread ØD (mm) |
Type |
Ref. Number |
STAE-R16297 |
97 |
18 |
46 |
16X2 R |
B |
04645 |
STAE-L16297 |
97 |
18 |
46 |
16X2 L |
B |
04647 |
STAE-R2025115 |
115 |
18 |
46 |
20X2.5 R |
B |
04648 |
STAE-L2025115 |
115 |
18 |
46 |
20X2.5 L |
B |
04649 |
STAE-R2225115 |
115 |
20 |
50 |
22X2.5 R |
B |
04662 |
STAE-L2225115 |
115 |
20 |
50 |
22X2.5 L |
B |
04663 |
STAE-R162121 |
121 |
14 |
35 |
16X2 R |
A |
04612 |
STAE-L162121 |
121 |
14 |
35 |
16X2 L |
A |
04615 |
STAE-R1825136 |
136 |
14 |
38 |
18X2.5 R |
A |
04616 |
STAE-L1825136 |
136 |
14 |
38 |
18X2.5 L |
A |
04617 |
STAE-R2025136 |
136 |
14 |
38 |
20X2.5 R |
A |
04618 |
STAE-L2025136 |
136 |
14 |
38 |
20X2.5 L |
A |
03441 |

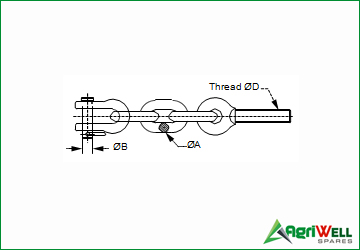

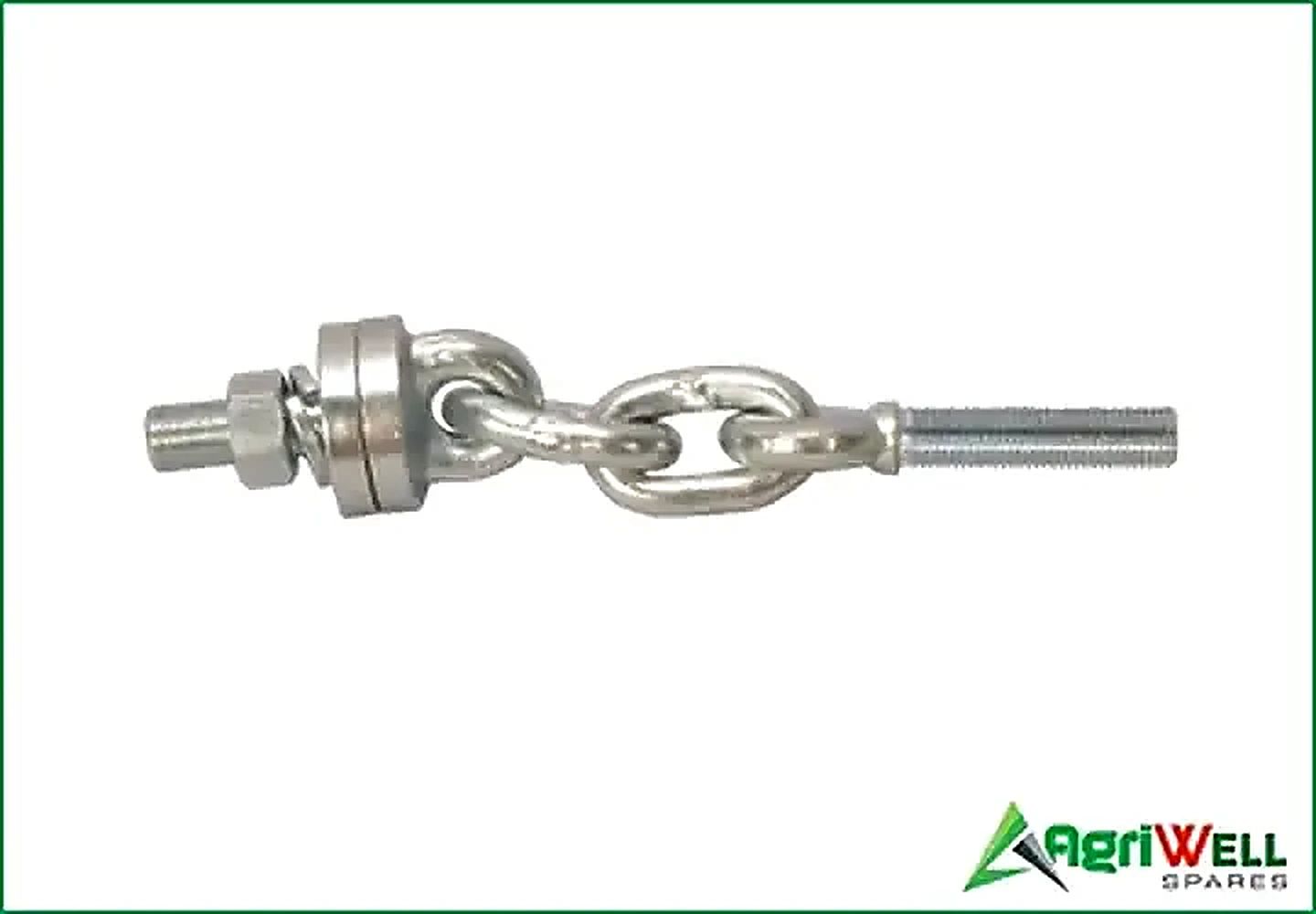

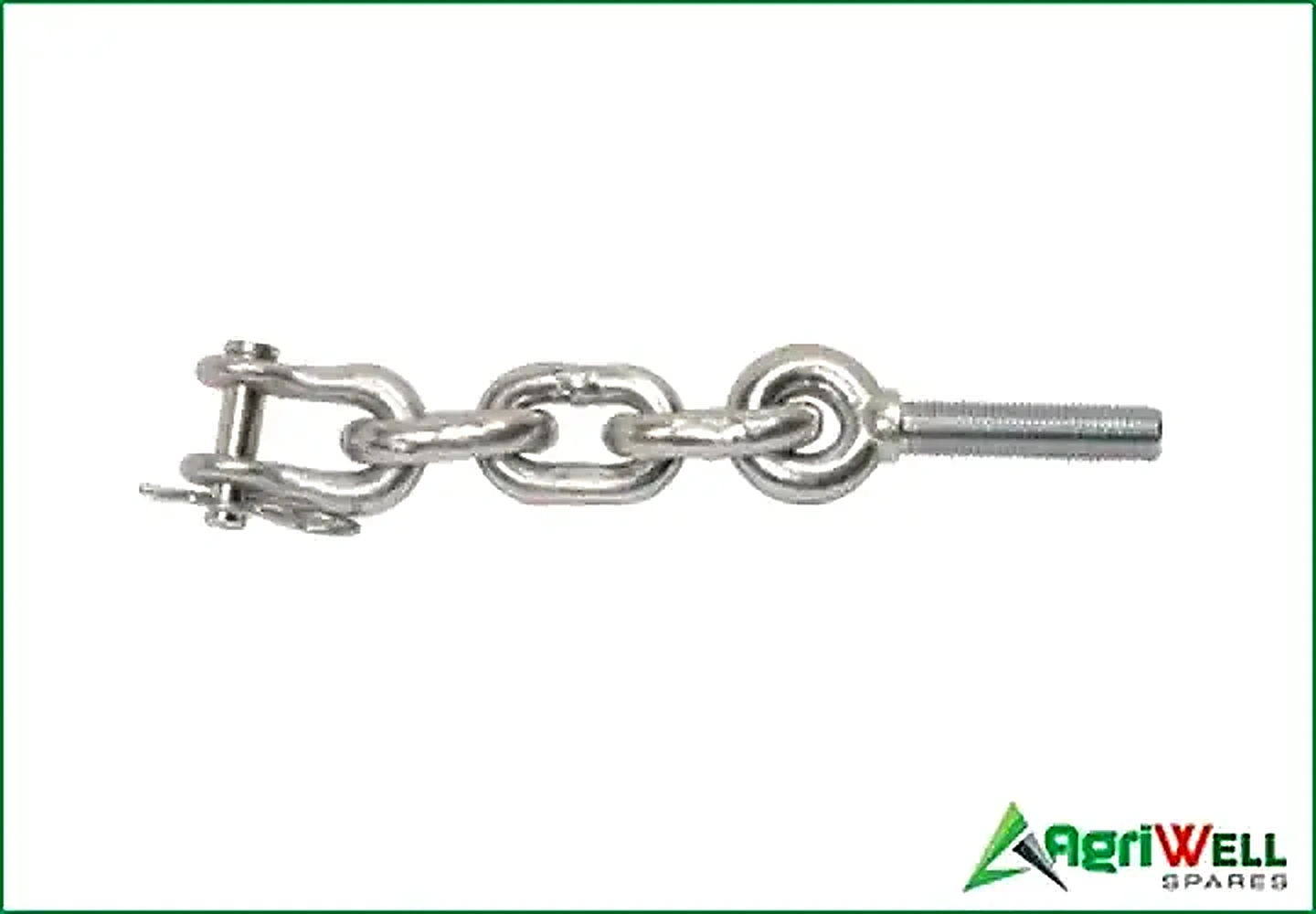

SIDE CHAIN LINK
Part Number |
Dim. A (mm) |
Dia. ØB (mm) |
Thread ØD (mm) |
No. of Link |
SCL-R162123 |
12 |
12 |
16X2 R |
3 |
SCL-R162124 |
12 |
14 |
16X2 R |
4 |
SCL-L162121 |
12 |
14-D |
16X2 L |
1 |
SCL-L162141 |
14 |
14-D |
16X2 L |
1 |

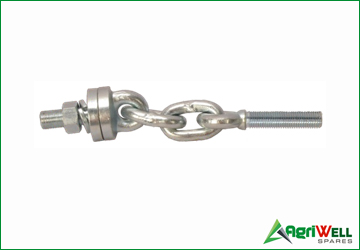

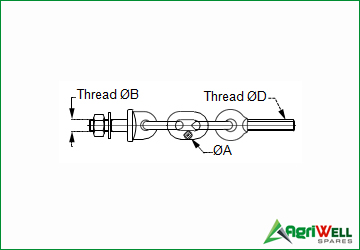

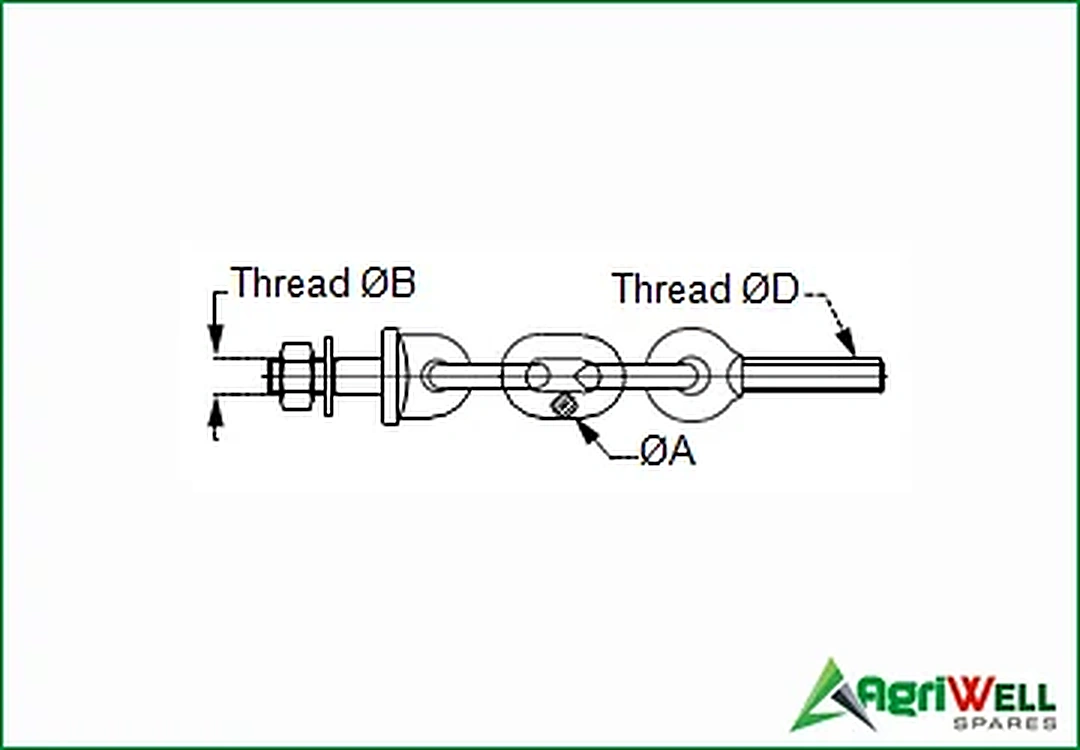

SIDE CHAIN LINK
Part Number |
Dim. A (mm) |
Thread ØB (mm) |
Thread ØD (mm) |
No. of Link |
SCL-1622215121 |
12 |
22X1.5 |
16X2 R |
1 |
SCL-R1622215141 |
14 |
22X1.5 |
16X2 R |
1 |
SCL-L1621815123 |
12 |
18X1.5 |
16X2 L |
3 |
SCL-R1622215122 |
12 |
22X1.5 |
16X2 R |
2 |

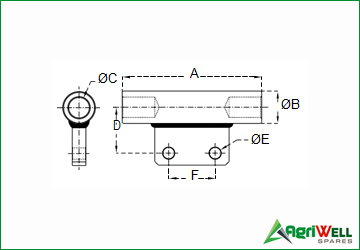

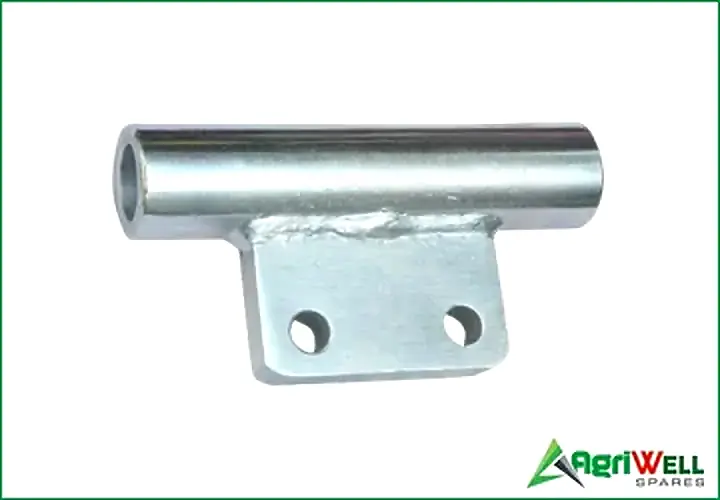

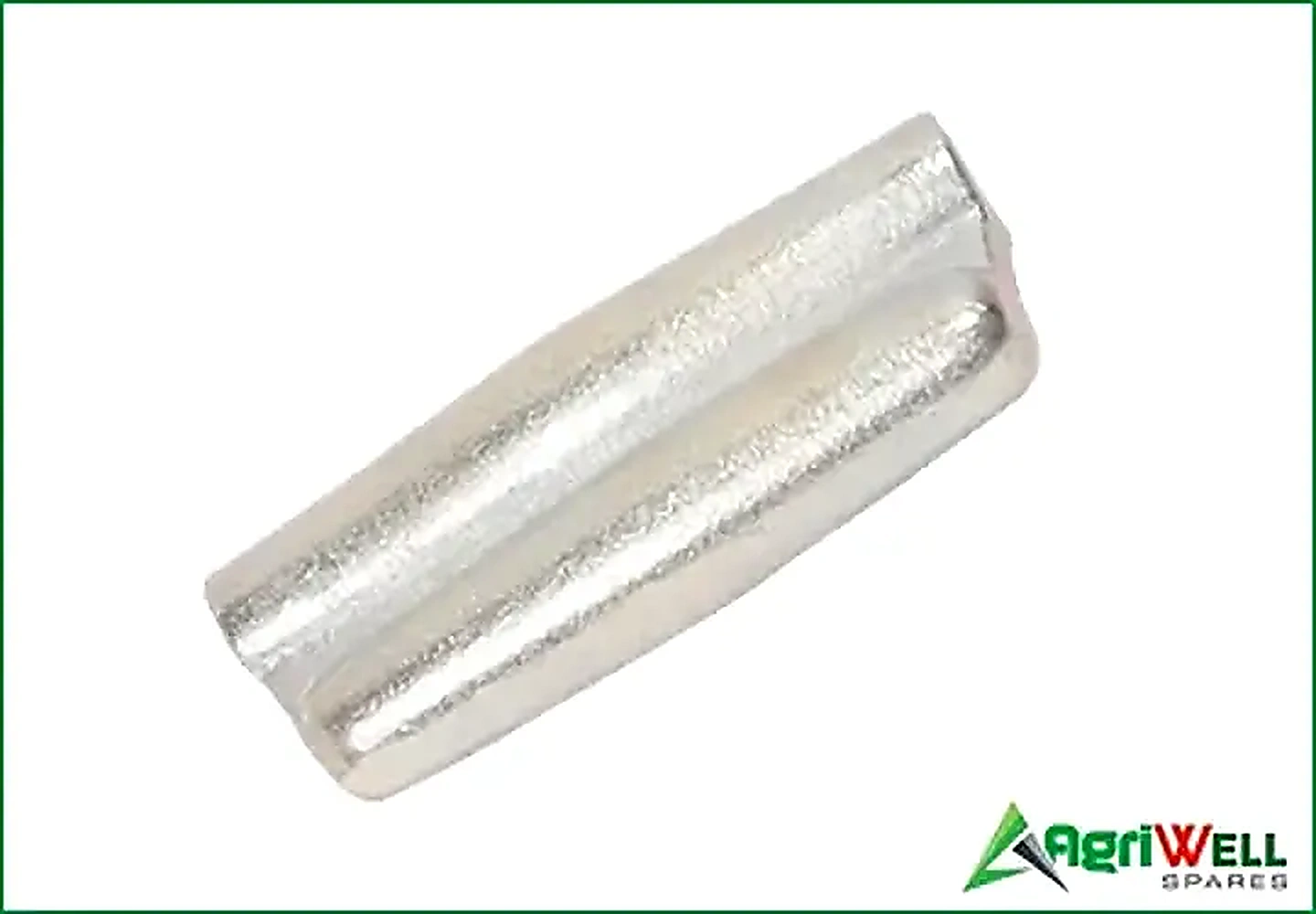

TURN BUCKLES
Part Number |
Dim. A (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Dim. F (mm) |
Ref. Number |
TBP-1503522 |
150 |
35 |
22 |
40 |
13 |
50 |
01140 |
TURN BUCKLES
Part Number |
Dim. A (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dim. D (mm) |
Dim. E (mm) |
Dim. F (mm) |
Ref. Number |
TBP-1503522 |
150 |
35 |
22 |
40 |
13 |
50 |
01140 |

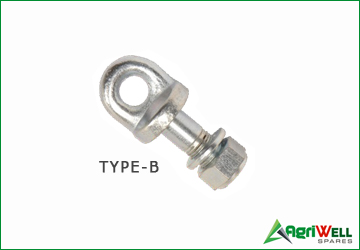

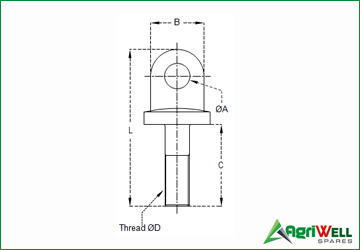

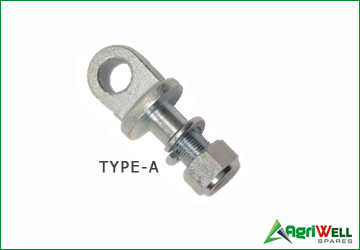

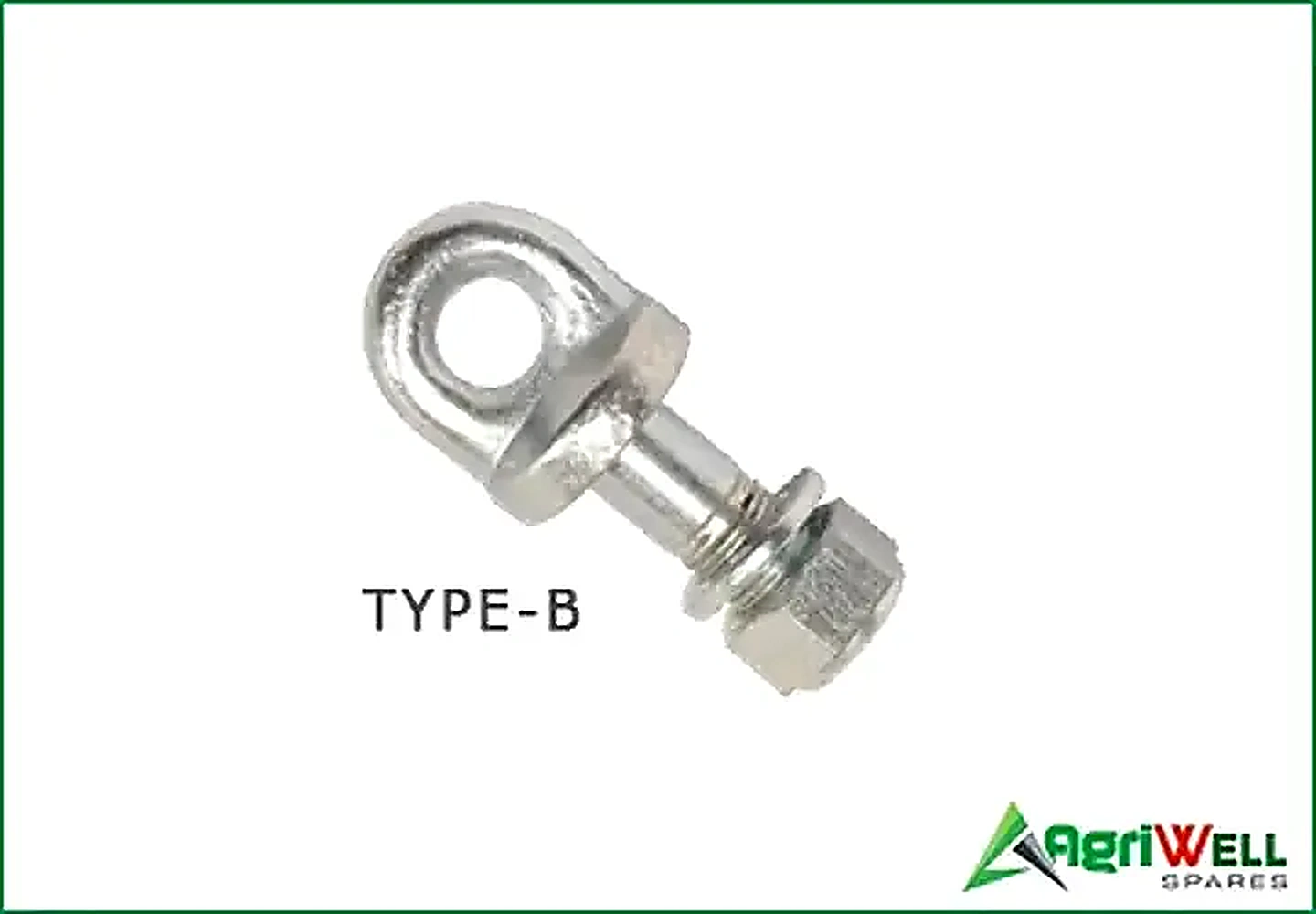

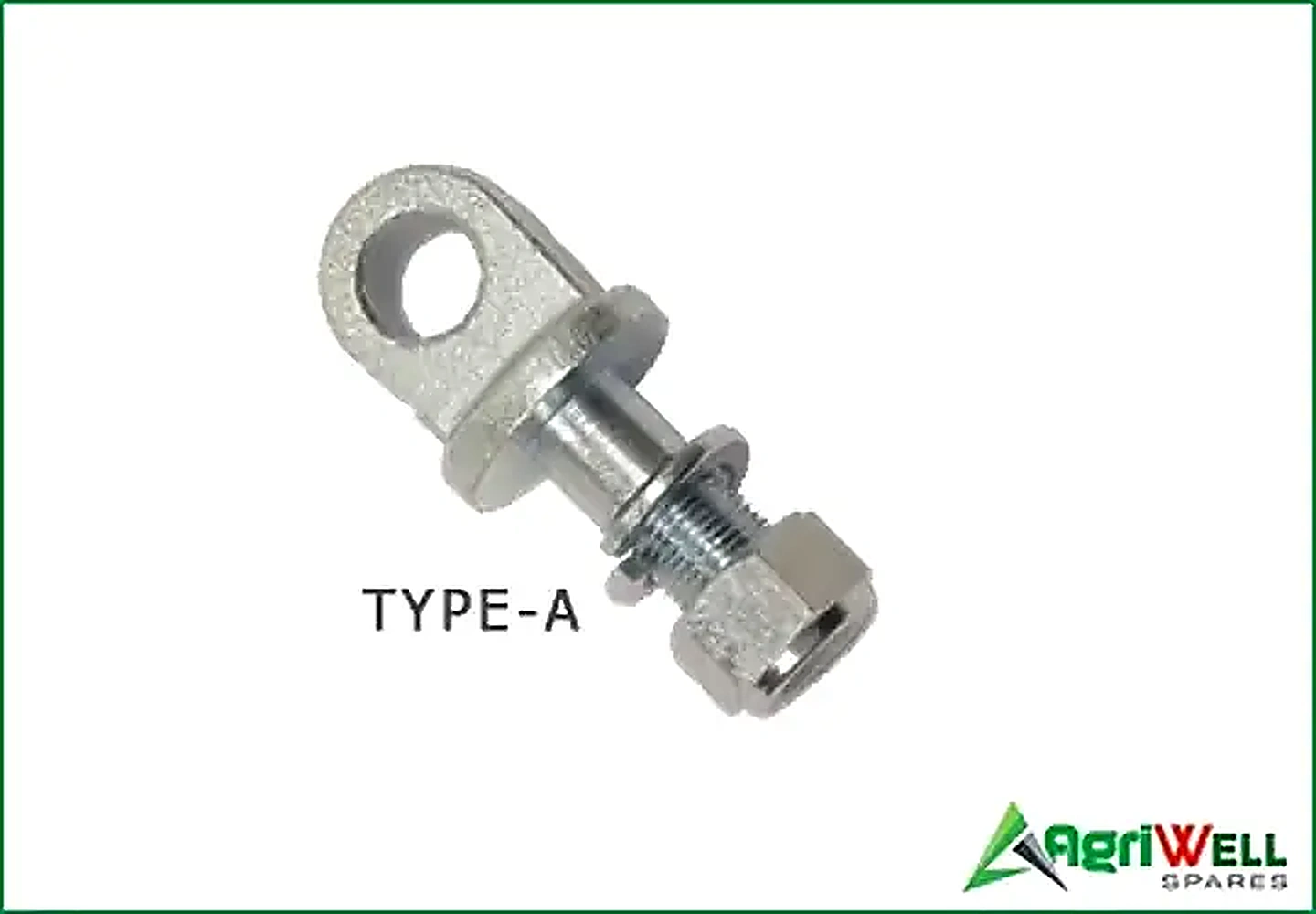

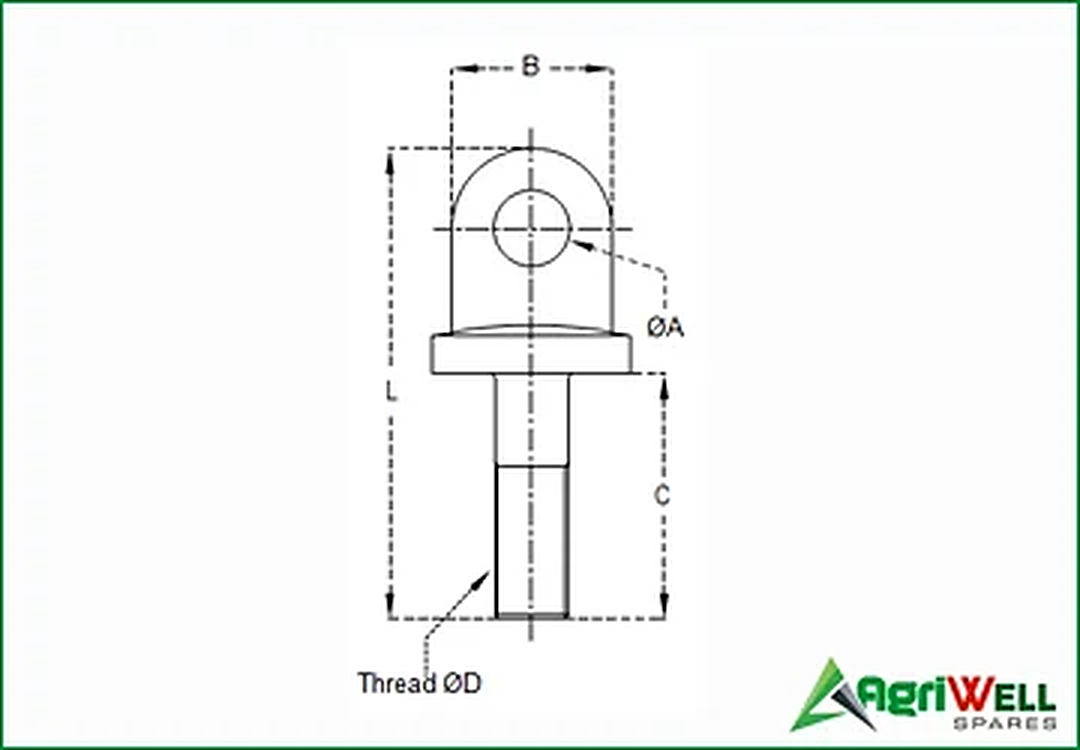

STABILIZER EYE BOLTS
Part Number |
Dim. L (mm) |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Thread ØD (mm) |
Type |
Ref. Number |
SEB-161543 |
80 |
15 |
36 |
43 |
16X1.5 |
A |
00023 |
SEB-181543 |
80 |
15 |
36 |
43 |
18X1.5 |
A |
00034 |
SEB-202556 |
100 |
18 |
45 |
56 |
20X2.5 |
A |
09345 |
SEB-24265 |
125 |
24 |
53 |
65 |
24X2 |
B |
00024 |
SEB-202565 |
125 |
20 |
53 |
65 |
20X2.5 |
B |
00035 |
