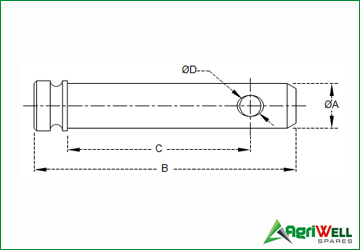

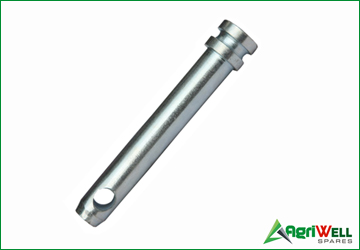

TOP LINK PINS
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) N |
Ref. umber |
TLP-1676113 |
15.9 |
113 |
76 |
8.3 |
|
TLP-1682113 |
15.9 |
112.7 |
82.2 |
8.3 |
|
TLP-195290 |
19 |
90 |
52 |
12 |
|
TLP-195790 |
19 |
90 |
57 |
12 |
|
TLP-196595 |
19 |
95 |
65 |
10 |
|
TLP-1976113 |
19 |
113 |
76 |
12 |
12419 |
TLP-1985117 |
19 |
117 |
85 |
10 |
|
TLP-1986123 |
19 |
123 |
86 |
12 |
|
TLP-1995125 |
19 |
125 |
95 |
12 |
03806 |
TLP-1992127 |
19 |
127 |
92 |
12 |
|
TLP-1995133 |
19 |
133 |
95 |
12 |
|
TLP-19103135 |
19 |
135 |
102.5 |
8.5 |
|
TLP-19105135 |
19 |
135 |
105 |
10 |
|
TLP-19103138 |
19 |
138 |
103 |
12 |
09072 |
TLP-19116150 |
19 |
150 |
116 |
12 |
|
TLP-19125155 |
19 |
155 |
125 |
10 |
|
TLP-19127164 |
19 |
164 |
127 |
12 |
|
TLP-2595132 |
25 |
132 |
95 |
12 |
|
TLP-25105136 |
25 |
136 |
105 |
11 |
|
TLP-25105141 |
25 |
141 |
105 |
12 |
|
TLP-25110145 |
25 |
145 |
110 |
11 |
|
TLP-25125156 |
25 |
156 |
125 |
11 |
|
TLP-25126165 |
25 |
165 |
126 |
12 |
|
TLP-25136180 |
25 |
180 |
136 |
12 |
|
TLP-25145178 |
25 |
178 |
145 |
11 |
|
TLP-2586123 |
25.4 |
123 |
86 |
12 |
|
TLP-2595135 |
25.4 |
135 |
95 |
12 |
03807 |
TLP-25110148 |
25.4 |
148 |
110 |
12 |
12422 |
TLP-25116154 |
25.4 |
154 |
116 |
12 |
|
TLP-25142180 |
25.4 |
180 |
142 |
12 |
12421 |
TLP-28103151 |
28 |
151 |
103 |
12 |
|
TLP-19145175 |
19 |
175 |
145 |
10 |
|
TLP-19165197 |
19 |
197 |
165 |
10 |
|
TLP-2083117 |
20 |
117 |
83 |
12 |
|
TLP-223978 |
22 |
78 |
39 |
12 |
|
TLP-2276114 |
22 |
114 |
76 |
12 |
|
TLP-2278114 |
22 |
114 |
78 |
8.3 |
|
TLP-2285118 |
22 |
118 |
85 |
11 |
|
TLP-2294132 |
22 |
132 |
94 |
12 |
|
TLP-22105136 |
22 |
136 |
105 |
12 |
|
TLP-22110140 |
22 |
140 |
110 |
12 |
|
TLP-22125158 |
22 |
158 |
125 |
11 |
|
TLP-22149190 |
22 |
190 |
149 |
12 |
|
TLP-22145178 |
22 |
178 |
145 |
11 |
|
TLP-22184221 |
22 |
221 |
184 |
12 |
09073 |
TLP-2576115 |
25 |
115 |
76 |
12 |
|
TLP-2585136 |
25 |
136 |
85 |
11 |
|
TLP-28125156 |
28 |
156 |
125 |
12 |
|
TLP-28130165 |
28 |
165 |
130 |
12 |
09074 |
TLP-28145178 |
28 |
178 |
145 |
12 |
|
TLP-2895133 |
28.6 |
133 |
95 |
12 |
|
TLP-28159197 |
28.6 |
197 |
159 |
12 |
|
TLP-31125165 |
31 |
165 |
125 |
12 |
09075 |
TLP-32119165 |
31.7 |
165.1 |
118.7 |
12 |
|
TLP-32105152 |
32 |
152 |
105 |
12 |
|
TLP-32105154 |
32 |
154 |
105 |
12 |
|
TLP-32125164 |
32 |
164 |
125 |
12 |
|
TLP-32136175 |
32 |
175 |
136 |
12 |
|

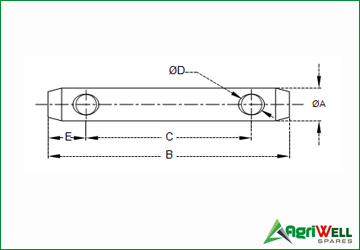

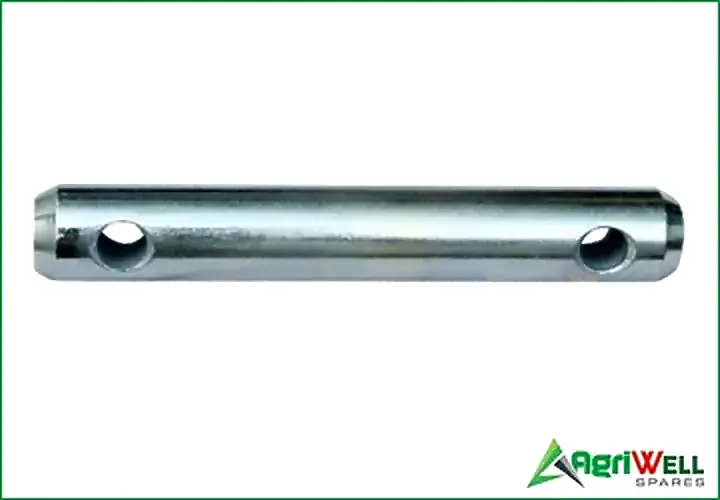

TOP LINK PINS-HEADLESS
Part Number |
Cat. |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Dim. E (mm) |
Ref. Number |
TLP-HL1996140 |
1 |
19 |
140 |
96 |
12 |
22 |
00270 |
TLP-HL19126170 |
1 |
19 |
170 |
126 |
12 |
22 |
00272 |
TLP-HL19163207 |
1 |
19 |
207 |
163 |
12 |
22 |
00273 |
TLP-HL19210254 |
1 |
19 |
254 |
210 |
12 |
22 |
00261 |
TLP-HL2296140 |
- |
22 |
140 |
96 |
12 |
22 |
09076 |
TLP-HL22126170 |
- |
22 |
170 |
126 |
12 |
22 |
09077 |
TLP-HL25100144 |
2 |
25 |
144 |
100 |
12 |
22 |
00274 |
TLP-HL25120164 |
2 |
25 |
164 |
120 |
12 |
22 |
00275 |
TLP-HL25166210 |
2 |
25 |
210 |
166 |
12 |
22 |
00276 |
TLP-HL25210254 |
2 |
25 |
254 |
210 |
12 |
22 |
00187 |
TLP-HL25250294 |
2 |
25 |
294 |
250 |
12 |
22 |
00279 |

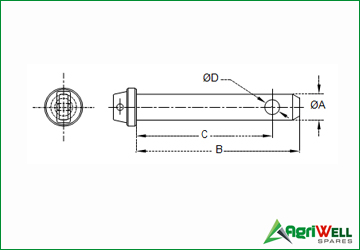

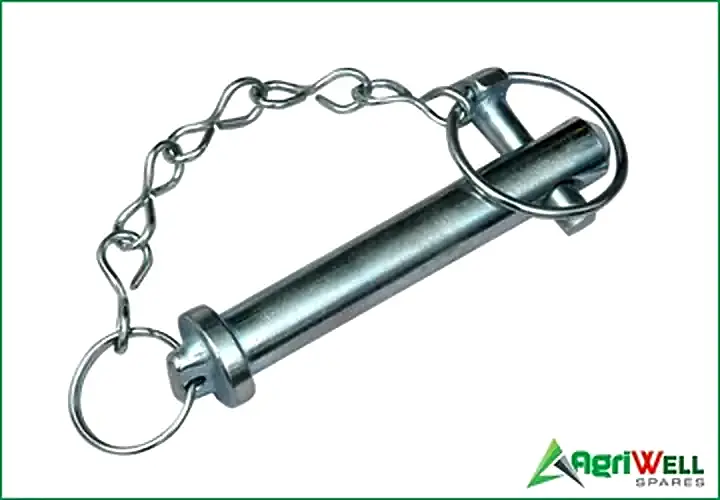

TOP LINK PINS WITH LINCH PIN & CHAIN
Part Number |
Dia. ØA (mm) |
Dim. B (mm) |
Dim. C (mm) |
Dia. ØD (mm) |
Ref. Number |
TLP-LP147384 |
14.3 |
84 |
73 |
6 |
|
TLP-LP197792 |
19 |
92 |
77 |
6 |
|
TLP-LP19100120 |
19 |
120 |
100 |
8 |
00178 |
TLP-LP19108120 |
19 |
120 |
108 |
8 |
|
TLP-LP2598120 |
25 |
120 |
98 |
8 |
|
TLP-LP25100120 |
25 |
120 |
100 |
11 |
00179 |
